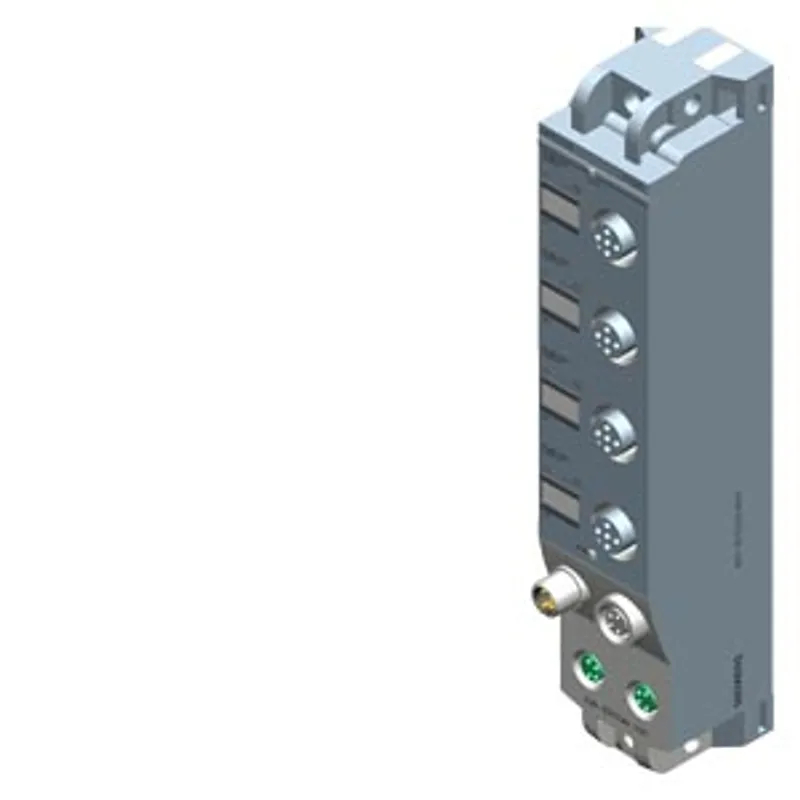

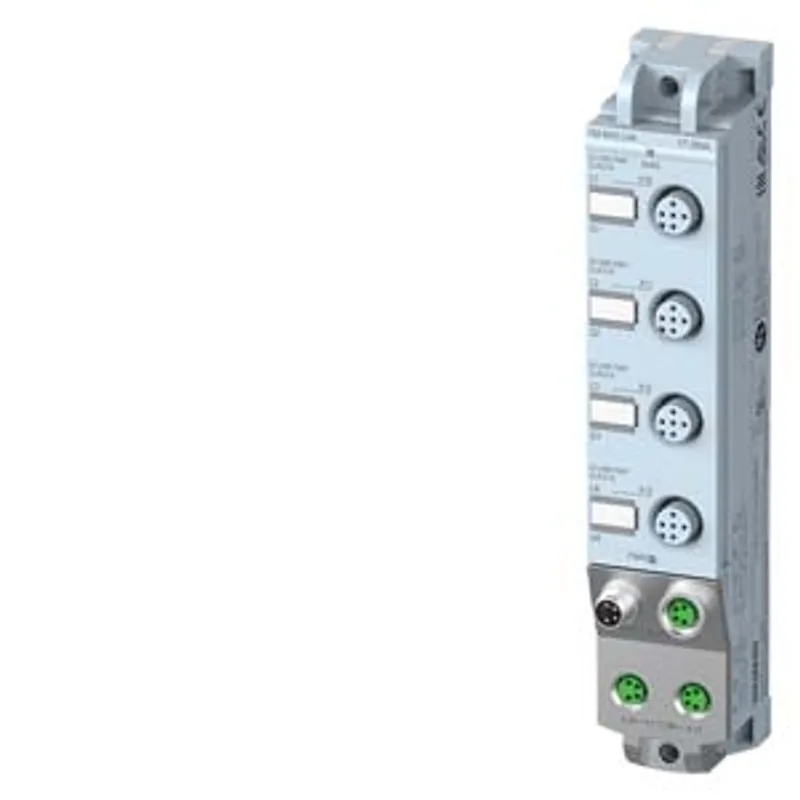

Siemens 6ES7147-5JD00-0BA0
SIMATIC ET 200AL, CM 4x IO-Link, 4x M12, Degree of protection IP67
- MPN
- 6ES7147-5JD00-0BA0
- Category
- CM IO-Link
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7147-5JD00-0BA0?
SIMATIC ET 200AL, CM 4x IO-Link, 4x M12, Degree of protection IP67
Specifications
General information
| Product type designation | CM 4x IO-Link |
| HW functional status | FS08 |
| Firmware version | V1.2.x |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — Isochronous mode | No |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | STEP 7 V13 SP1 or higher |
| Engineering with — STEP 7 configurable/integrated from version | From V5.5 SP4 Hotfix 3 |
| Engineering with — PROFIBUS from GSD version/GSD revision | GSD as of Revision 5 |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.3.1 |
| Operating mode — IO-Link | Yes |
| Operating mode — DI | Yes |
| Operating mode — DQ | Yes; max. 100 mA |
Supply voltage
| power supply according to NEC Class 2 required | No |
| Load voltage 1L+ — Rated value (DC) | 24 V |
| Load voltage 1L+ — permissible range, lower limit (DC) | 20.4 V |
| Load voltage 1L+ — permissible range, upper limit (DC) | 28.8 V |
| Load voltage 1L+ — Reverse polarity protection | Yes |
| Load voltage 2L+ — Rated value (DC) | 24 V |
| Load voltage 2L+ — permissible range, lower limit (DC) | 20.4 V |
| Load voltage 2L+ — permissible range, upper limit (DC) | 28.8 V |
| Load voltage 2L+ — Reverse polarity protection | Yes; against destruction; load increasing |
Input current
| Current consumption (rated value) | 40 mA; without load |
| from load voltage 1L+ (unswitched voltage) | 4 A; Maximum value |
| from load voltage 2L+, max. | 4 A; Maximum value |
Encoder supply
| Number of outputs | 4 |
| 24 V encoder supply — Short-circuit protection | Yes; per module, electronic |
| 24 V encoder supply — Output current, max. | 1.4 A; Total current of all ports |
Power loss
| Power loss, typ. | 2.6 W |
IO-Link
| Number of ports | 4 |
| Number of ports — of which simultaneously controllable | 4 |
| IO-Link protocol 1.0 | Yes |
| IO-Link protocol 1.1 | Yes |
| Transmission rate | 4.8 kBaud (COM1); 38.4 kBaud (COM2), 230 kBaud (COM3) |
| Size of process data, input per port | 32 byte |
| Size of process data, input per module | 132 byte |
| Size of process data, output per port | 32 byte |
| Size of process data, output per module | 128 byte |
| Memory size for device parameter | 2 kbyte; for each port |
| Master backup | Possible with function block IO_LINK_MASTER |
| Configuration without S7-PCT | Possible; autostart/manual function |
| Cable length unshielded, max. | 20 m |
| Operating modes — IO-Link | Yes |
| Operating modes — DI | Yes |
| Operating modes — DQ | Yes; max. 100 mA |
| Connection of IO-Link devices — Port type A | Yes; via 3-core cable |
| Connection of IO-Link devices — Port type B | Yes; Additional device supply: 1.6 A total current of all ports |
Interrupts/diagnostics/status information
| Alarms — Diagnostic alarm | Yes; Parameterizable |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | Yes |
| Diagnoses — Short-circuit | Yes |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for module diagnostics | Yes; green/red LED |
| Diagnostics indication LED — For load voltage monitoring | Yes; green LED |
Potential separation
| between the load voltages | Yes |
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels and backplane bus | Yes |
| Potential separation channels — between the channels and the power supply of the electronics | No |
Isolation
| Isolation tested with | 707 V DC (type test) |
Degree and class of protection
| IP degree of protection | IP65/67 |
Standards, approvals, certificates
| Suitable for safety-related tripping of standard modules | Yes; from FS01 |
| Highest safety class achievable for safety-related tripping of standard modules — Performance level according to ISO 13849-1 | PL d |
| Highest safety class achievable for safety-related tripping of standard modules — Category according to ISO 13849-1 | Cat. 3 |
| Highest safety class achievable for safety-related tripping of standard modules — SILCL according to IEC 62061 | SILCL 2 |
Ambient conditions
| Ambient temperature during operation — min. | -30 °C |
| Ambient temperature during operation — max. | 55 °C |
Connection method
| Design of electrical connection for the inputs and outputs | M12, 5-pole |
| Design of electrical connection for supply voltage | M8, 4-pole |
| ET-Connection — ET-Connection | M8, 4-pin, shielded |

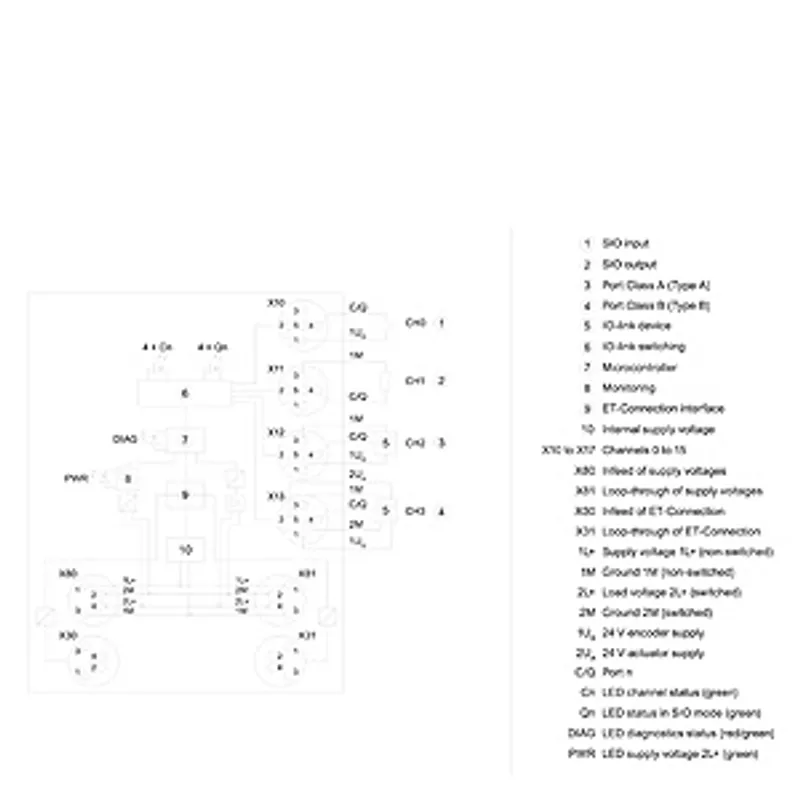

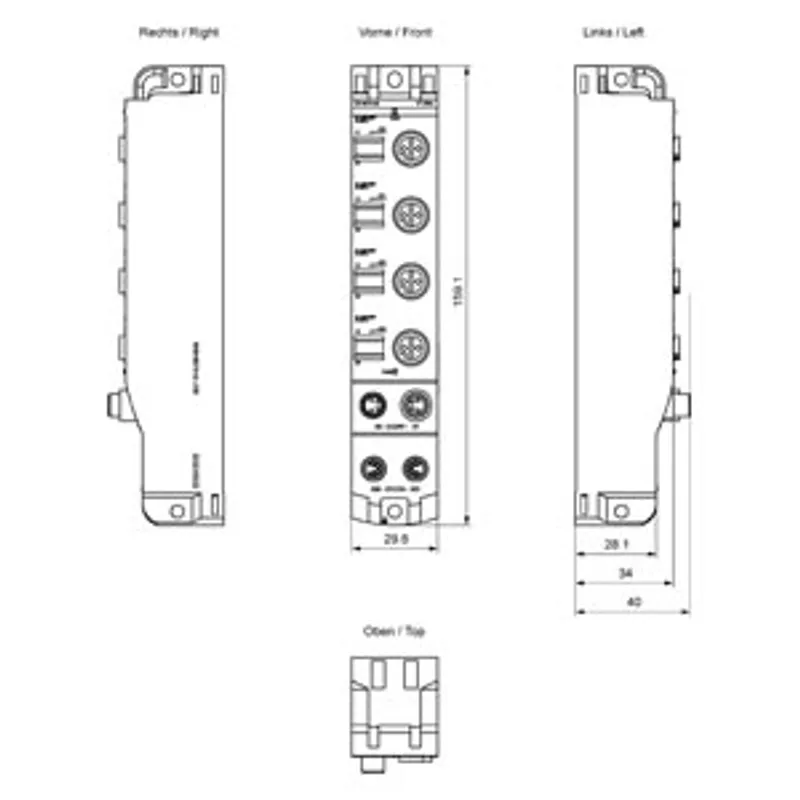

Dimensions
| Width | 30 mm |
| Height | 159 mm |
| Depth | 40 mm |
Weights
| Weight, approx. | 145 g |
