Siemens 6ES7147-4BB00-0AA0

SIMATIC DP, electronic modules for ET 200pro EM 2 SSI position detection for 2 SSI absolute encoders incl.…

MPN: 6ES7147-4BB00-0AA0
Category: EM 2 SSI electronic module

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

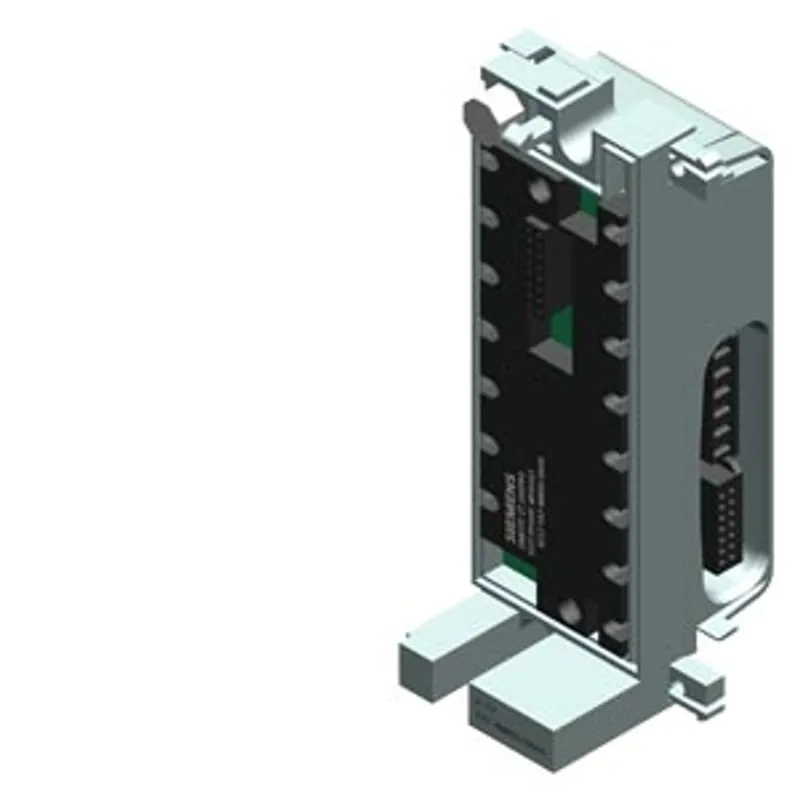

What is the Siemens 6ES7147-4BB00-0AA0?

SIMATIC DP, electronic modules for ET 200pro EM 2 SSI position detection for 2 SSI absolute encoders incl. bus module, connection module CM SSI 6ES7194-4CC00-0AA0 to be ordered separately

Specifications

General information

Product function — Isochronous mode	No
Engineering with — STEP 7 TIA Portal configurable/integrated from version	STEP 7 V18.0.1.4 or higher
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.35

Supply voltage

Rated value (DC)	24 V
Reverse polarity protection	Yes

Input current

from supply voltage 1L+, max.	30 mA; without output current for the 24 V Encoder supply
from backplane bus 3.3 V DC, max.	20 mA

Encoder supply

Number of outputs	2
24 V encoder supply — 24 V	Yes; L+ (-0.8 V)
24 V encoder supply — Short-circuit protection	Yes; electronic/thermal
24 V encoder supply — Output current, max.	150 mA; Per channel

Power loss

Power loss, typ.

0.65 W

Address area

Address space per module — Address space per module, max.	8 byte
Address space per module — Inputs	8 byte
Address space per module — Outputs	0 byte

Digital inputs

Cable length — shielded, max.

30 m

Encoder

Encoder signals, absolute encoder (SSI) — Input signal	to RS-422
Encoder signals, absolute encoder (SSI) — Telegram length, parameterizable	10 ... 40 bit
Encoder signals, absolute encoder (SSI) — Clock frequency, max.	2 MHz; 125 kHz, 250 kHz, 500 kHz, 1 MHz, 1.5 MHz or 2 MHz
Encoder signals, absolute encoder (SSI) — Binary code	Yes
Encoder signals, absolute encoder (SSI) — Gray code	Yes
Encoder signals, absolute encoder (SSI) — Cable length, shielded, max.	30 m; Up to 500 kHz
Encoder signals, absolute encoder (SSI) — Parity bit, parameterizable	Yes
Encoder signals, absolute encoder (SSI) — Monoflop time	16, 32, 48, 64 µs & automatic
Encoder signals, absolute encoder (SSI) — Multiturn	Yes
Encoder signals, absolute encoder (SSI) — Singleturn	Yes
Interface types — RS 422	Yes

Interrupts/diagnostics/status information

Diagnostics function	Yes; Parameterizable
Alarms — Diagnostic alarm	Yes
Diagnoses — Diagnostic information readable	Yes
Diagnoses — Wire break	Yes
Diagnoses — Short-circuit	Yes; Encoder supply to M, channel by channel
Diagnoses — Telegram error at SSI encoder	Yes
Diagnostics indication LED — ERROR LED	Yes
Diagnostics indication LED — Channel status display	Yes
Diagnostics indication LED — for channel diagnostics	Yes

Integrated Functions

Fast mode	Yes
Position detection — Absolute acquisition	Yes

Potential separation

Potential separation channels — between the channels	No
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — Between the channels and load voltage L+	No

Isolation

Isolation tested with

707 V DC (type test)

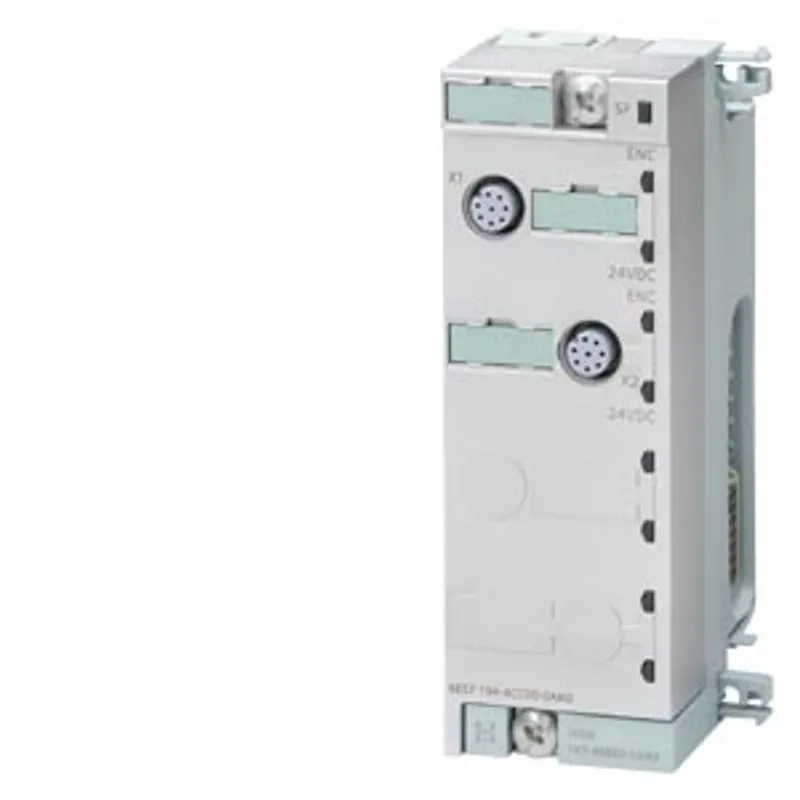

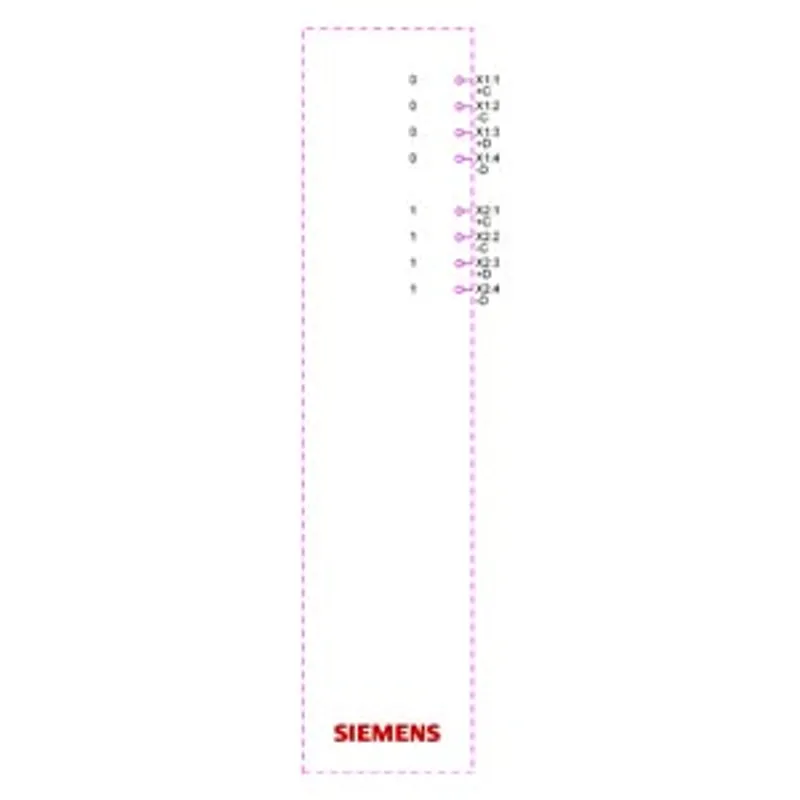

Connection method

Design of electrical connection

M12, 8-pin

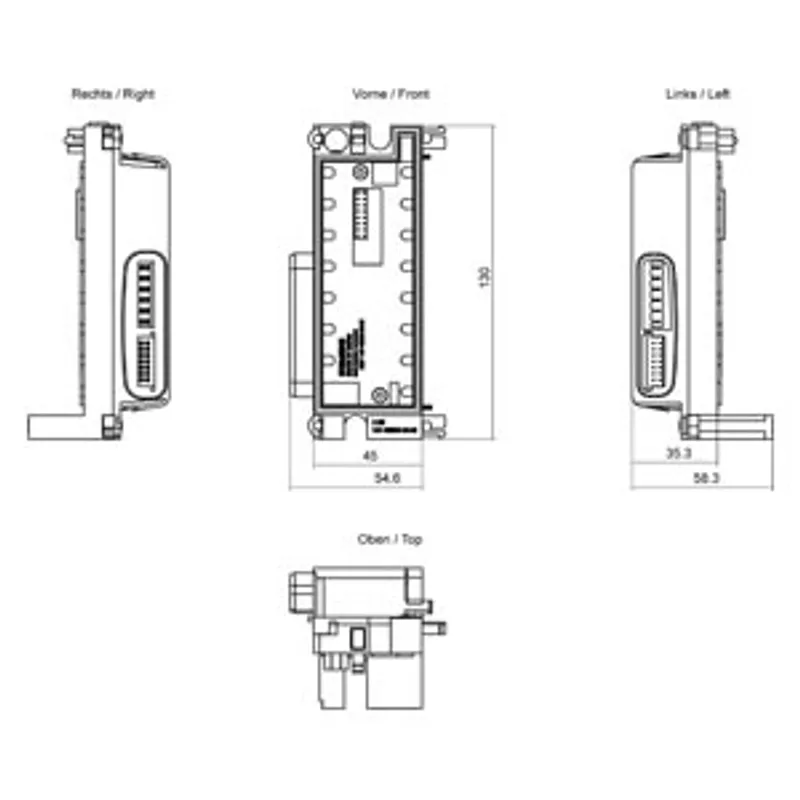

Dimensions

Width	45 mm
Height	130 mm
Depth	35 mm

Weights

Weight, approx.

150 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6ES7147-4BB00-0AA0PDF
