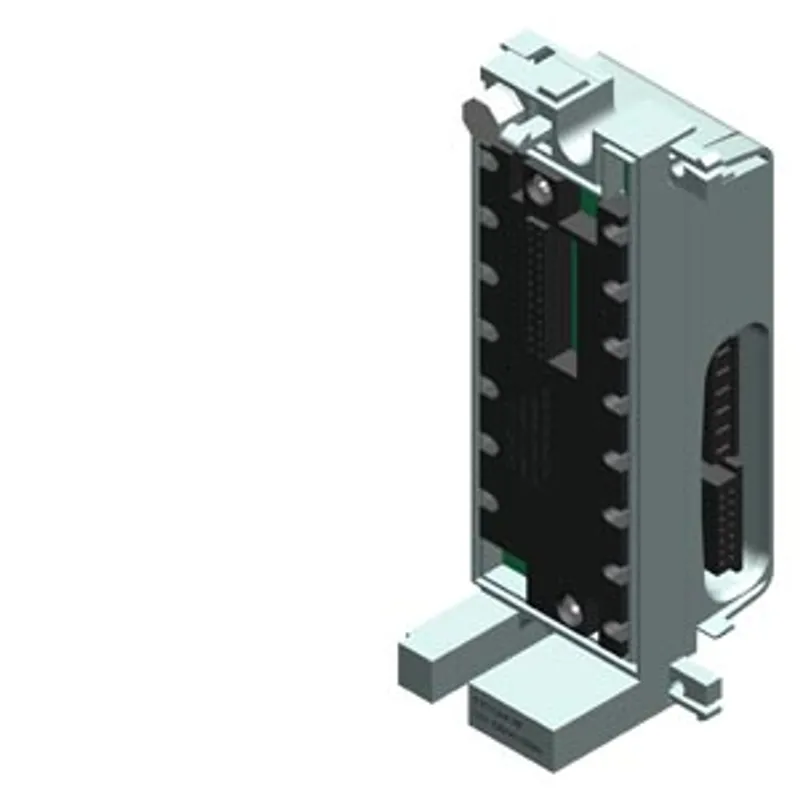

Siemens 6ES7147-4JD00-0AB0

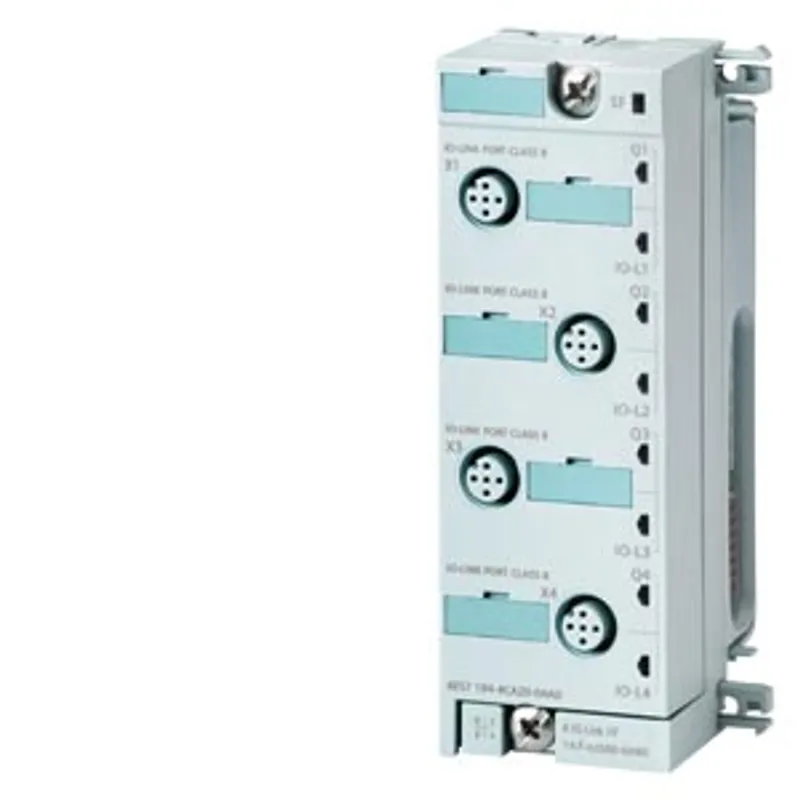

SIMATIC DP, electronic module for ET 200pro 4 IO-Link High Feature, Channel diagnostics, including bus module

MPN: 6ES7147-4JD00-0AB0
Category: IO-Link master modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

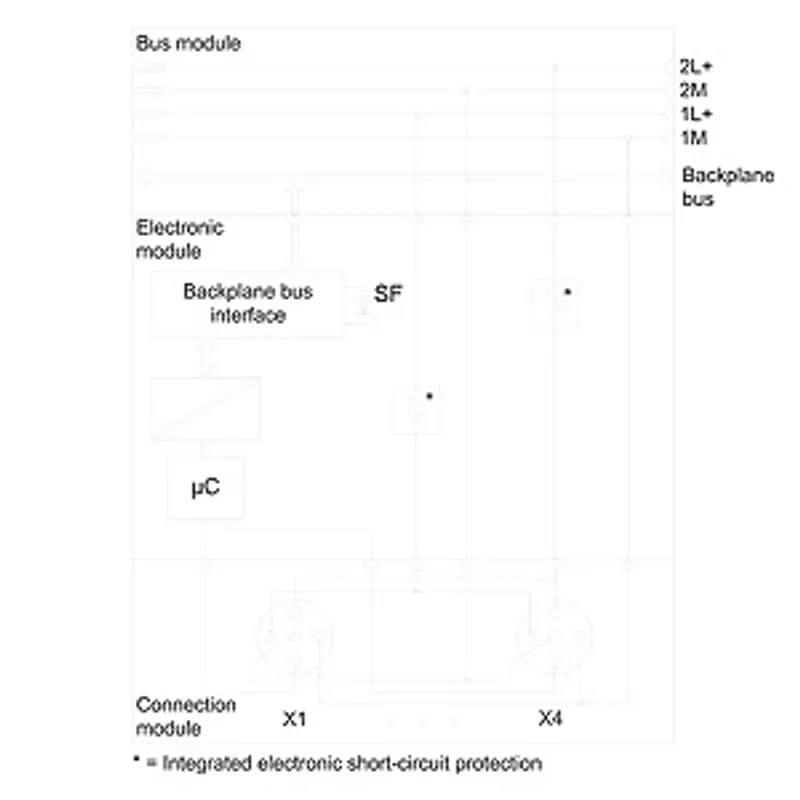

What is the Siemens 6ES7147-4JD00-0AB0?

SIMATIC DP, electronic module for ET 200pro 4 IO-Link High Feature, Channel diagnostics, including bus module, Connection module IO 6ES7194-4CA20-0AA0 order separately

Specifications

General information

HW functional status	FS04
Firmware version	V1.2.5
Firmware version — FW update possible	Yes
Product function — Isochronous mode	No
Operating mode — IO-Link	Yes
Operating mode — DI	Yes
Operating mode — DQ	Yes; max. 100 mA

Supply voltage

Rated value (DC)	24 V
Reverse polarity protection	Yes
Load voltage 2L+ — Rated value (DC)	24 V
Load voltage 2L+ — Short-circuit protection	Yes
Load voltage 2L+ — Reverse polarity protection	Yes; against destruction; load increasing

Input current

from supply voltage 1L+, max.	40 mA
from load voltage 2L+ (without load), max.	20 mA
from backplane bus 3.3 V DC, max.	20 mA

Encoder supply

Number of outputs	4
Short-circuit protection	Yes; per module, electronic
Output current — up to 55 °C, max.	2 A

Power loss

Power loss, typ.

2.6 W

IO-Link

Number of ports	4
Number of ports — of which simultaneously controllable	4
IO-Link protocol 1.0	Yes
IO-Link protocol 1.1	Yes
Transmission rate	4.8 kBaud (COM1); 38.4 kBaud (COM2), 230.4 kBaud (COM3)
Size of process data, input per port	32 byte
Size of process data, input per module	32 byte
Size of process data, output per port	32 byte
Size of process data, output per module	32 byte
Memory size for device parameter	2 kbyte; for each port
Master backup	possible with LIOLink_Master function block
Configuration without S7-PCT	Possible; autostart/manual function
Cable length unshielded, max.	20 m
Operating modes — IO-Link	Yes
Operating modes — DI	Yes
Operating modes — DQ	Yes; max. 100 mA
Connection of IO-Link devices — Port type A	Yes; via 3-core cable
Connection of IO-Link devices — Port type B	Yes; Additional device supply: for X1 and X2 max. 2 A in total, for X3 and X4 max. 2 A in total

Interrupts/diagnostics/status information

Diagnostics function	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Diagnostic information readable	Yes
Diagnoses — Wire break	Yes; channel by channel
Diagnoses — Short-circuit	Yes; channel by channel
Diagnostics indication LED — Channel status display	Yes; One green LED for channel status Qn (SIO mode) and port status IO-Ln (IO-Link mode)
Diagnostics indication LED — Group error SF (red)	Yes
Diagnostics indication LED — Channel fault indicator F (red)	Yes; combined with the IO-Link port status

Potential separation

between the load voltages	Yes
between backplane bus and all other circuit components	Yes
Potential separation channels — between the channels	No

Isolation

Isolation tested with

707 V DC (type test)

Standards, approvals, certificates

Suitable for safety-related tripping of standard modules

Security

signed firmware update	Yes
securely removing data	Yes
data integrity	Yes

Ambient conditions

Ambient temperature during operation — min.	0 °C
Ambient temperature during operation — max.	55 °C

Connection method

Design of electrical connection for the inputs and outputs

M12, 5-pin, A-coded

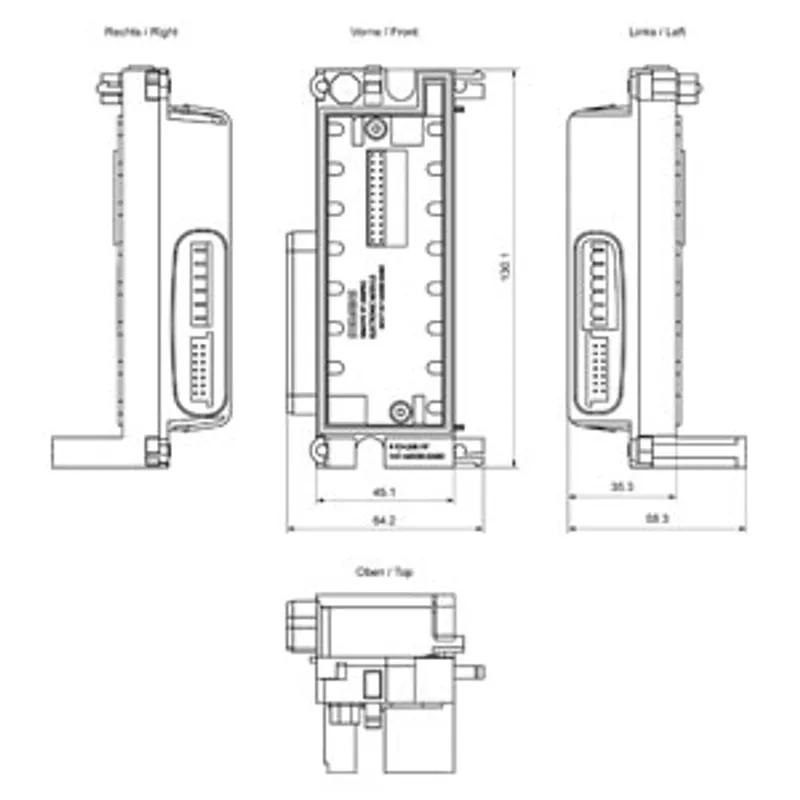

Dimensions

Width	45 mm
Height	130 mm
Depth	35 mm

Weights

Weight, approx.

150 g
