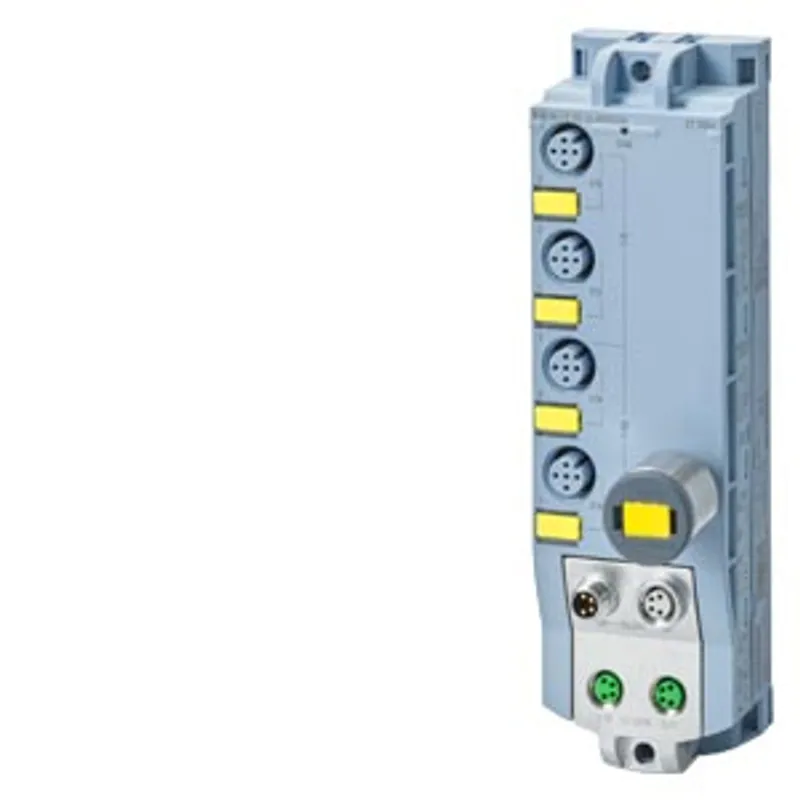

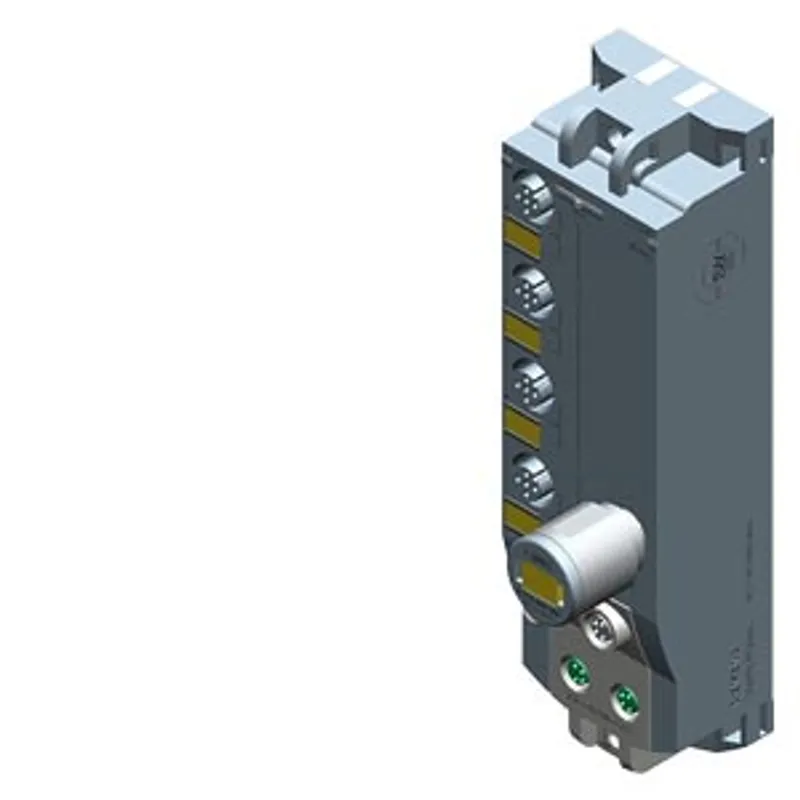

Siemens 6ES7146-5FF00-0BA0
SIMATIC DP, ET 200AL, F-DI 4+F-DQ 2x24 V DC/2 A, 4xM12, PROFIsafe, up to PL e (ISO 13849)
- MPN
- 6ES7146-5FF00-0BA0
- Category
- Fail-safe I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7146-5FF00-0BA0?
SIMATIC DP, ET 200AL, F-DI 4+F-DQ 2x24 V DC/2 A, 4xM12, PROFIsafe, up to PL e (ISO 13849), up to SIL 3 (IEC 61508), degree of protection IP67, including eCoding plug-in connector
Specifications
General information
| Product type designation | F-DI 4+F-DQ 2x24VDC/2A, 4xM12 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | STEP 7 V17 or higher |
| Operating mode — DI | Yes |
| Operating mode — DQ | Yes |
Supply voltage
| Rated value (DC) | 24 V |
| power supply according to NEC Class 2 required | No |
| Load voltage 1L+ — Rated value (DC) | 24 V |
| Load voltage 1L+ — permissible range, lower limit (DC) | 20.4 V |
| Load voltage 1L+ — permissible range, upper limit (DC) | 28.8 V |
| Load voltage 1L+ — Reverse polarity protection | Yes; against destruction |
| Load voltage 2L+ — Rated value (DC) | 24 V |
| Load voltage 2L+ — permissible range, lower limit (DC) | 20.4 V |
| Load voltage 2L+ — permissible range, upper limit (DC) | 28.8 V |
| Load voltage 2L+ — Reverse polarity protection | Yes; against destruction; outputs applied with reversed polarity for loads connected between M-switch and 2L+ will conduct |
Input current
| Current consumption (rated value) | 55 mA (1L+) / 40 mA (2L+); without load |
| from load voltage 1L+ (unswitched voltage) | 4 A; Maximum value |
| from load voltage 2L+, max. | 4 A; Maximum value |
Encoder supply
| Number of outputs | 2 |
| 24 V encoder supply — Short-circuit protection | Yes; per load voltage, electronic (response threshold 0.7 A to 1.7 A) |
| 24 V encoder supply — Output current, max. | 1 A; total current of all encoders, max. 0.5 A per load voltage; maximum of 2.0 V drop |
Power loss
| Power loss, typ. | 4.7 W |
Address area
| Address space per module — Inputs | 8 byte |
| Address space per module — Outputs | 6 byte |
Digital inputs
| Number of digital inputs | 4 |
| Input characteristic according to IEC 61131 | Type 1 |
| Number of simultaneously controllable inputs — all mounting positions — up to 55 °C, max. | 4 |
| Input voltage — Rated value (DC) | 24 V |
| Input voltage — for signal "0" | -30 to +5 V |
| Input voltage — for signal "1" | +15 to +30 V |
| Input current — for signal "1", typ. | 4.85 mA |
| Input delay (for rated value of input voltage) — for standard inputs — parameterizable | Yes |
| Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", min. | 0.8 ms |
| Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max. | 12.8 ms |
| Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", min. | 0.8 ms |
| Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max. | 12.8 ms |
| Cable length — unshielded, max. | 30 m |
Digital outputs
| Number of digital outputs | 2 |
| Number of digital outputs — in groups of | 2 |
| Short-circuit protection | Yes; per channel, electronic |
| Short-circuit protection — Response threshold, typ. | 10 A; measured at M-switch, threshold for P-switch is higher |
| Open-circuit detection | Yes; per channel, only detects when output is off |
| Overload protection | Yes |
| Overload protection — Response threshold, typ. | 3.4 A; measured at P-switch |
| Limitation of inductive shutdown voltage to | P-switch: -26 V DC referenced to 2M, M-switch: +48 V DC referenced to 2M |
| Switching capacity of the outputs — on lamp load, max. | 10 W |
| Load resistance range — lower limit | 12 Ω |
| Load resistance range — upper limit | 2 kΩ |
| Output voltage — for signal "1", min. | L+ (-2.0 V), P-switch is L+ (-1.5 V), M-switch is 0.5 V |
| Output current — for signal "1" rated value | 2 A |
| Output current — for signal "0" residual current, max. | 0.5 mA |
| Switching frequency — with resistive load, max. | 30 Hz |
| Switching frequency — with inductive load, max. | 0.1 Hz |
| Switching frequency — on lamp load, max. | 10 Hz |
| Total current of the outputs — Current per group, max. | 4 A |
| Cable length — unshielded, max. | 30 m |
Encoder
| Connectable encoders — 2-wire sensor | No |
| Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max. | 0.5 mA |
Interrupts/diagnostics/status information
| Substitute values connectable | No |
| Alarms — Diagnostic alarm | Yes; Parameterizable |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | Yes; outputs when off |
| Diagnoses — short-circuit | Yes; inputs, outputs, encoder supply |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for channel diagnostics | Yes; red LED |
| Diagnostics indication LED — for module diagnostics | Yes; green/red LED |
| Diagnostics indication LED — For load voltage monitoring | Yes; green LED |
Potential separation
| between the load voltages | Yes |
| Potential separation channels — between the channels, in groups of | 4 DI channels are isolated from 2 DQ channels |
| Potential separation channels — between the channels and backplane bus | Yes |
| Potential separation channels — between the channels and the power supply of the electronics | DI channels are non-isolated from supply voltage 1L+ and DQ channels are isolated from the supply voltage 1L+ |
Isolation
| Isolation tested with | 707 V DC (type test) |
Degree and class of protection
| IP degree of protection | IP65/67 |
Standards, approvals, certificates
| Highest safety class achievable in safety mode — Performance level according to ISO 13849-1 | PLd (DI single-channel), PLe (DI two-channel, DQ) |
| Highest safety class achievable in safety mode — Category according to ISO 13849-1 | Cat. 3 (DI single-channel), Cat. 4 (DI two-channel, DQ) |
| Highest safety class achievable in safety mode — SIL acc. to IEC 61508 | SIL 2 (DI single-channel), SIL 3 (DI two-channel, DQ) |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — Low demand mode: PFDavg in accordance with SIL2 | < 1.00E-03 DI single-channel; < 1.00E-03 DQ with dark test disabled |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — Low demand mode: PFDavg in accordance with SIL3 | < 1.00E-05 DI two-channel; < 2.00E-05 DQ with dark test enabled |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — High demand/continuous mode: PFH in accordance with SIL2 | < 1.00E-08 1/h DI single-channel; < 1.00E-07 1/h DQ with dark test disabled |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — High demand/continuous mode: PFH in accordance with SIL3 | < 1.00E-09 1/h DI two-channel; < 1.00E-08 1/h DQ with dark test enabled |
Ambient conditions
| Ambient temperature during operation — min. | -30 °C |
| Ambient temperature during operation — max. | 55 °C |

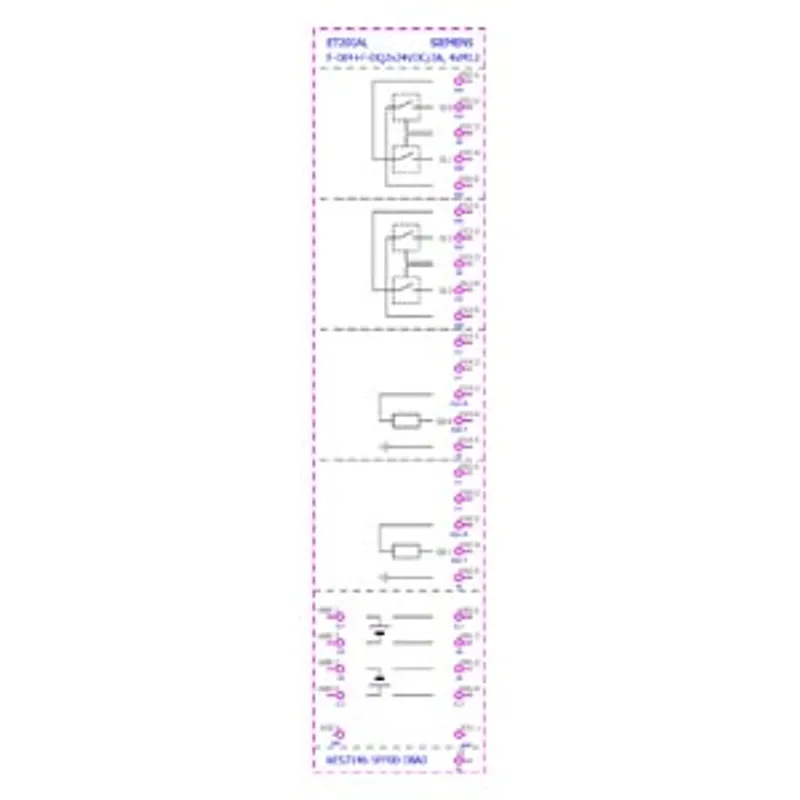

Connection method
| Design of electrical connection for the inputs and outputs | M12, 5-pole |
| Design of electrical connection for supply voltage | M8, 4-pin |
| ET-Connection — ET-Connection | M8, 4-pin, shielded |

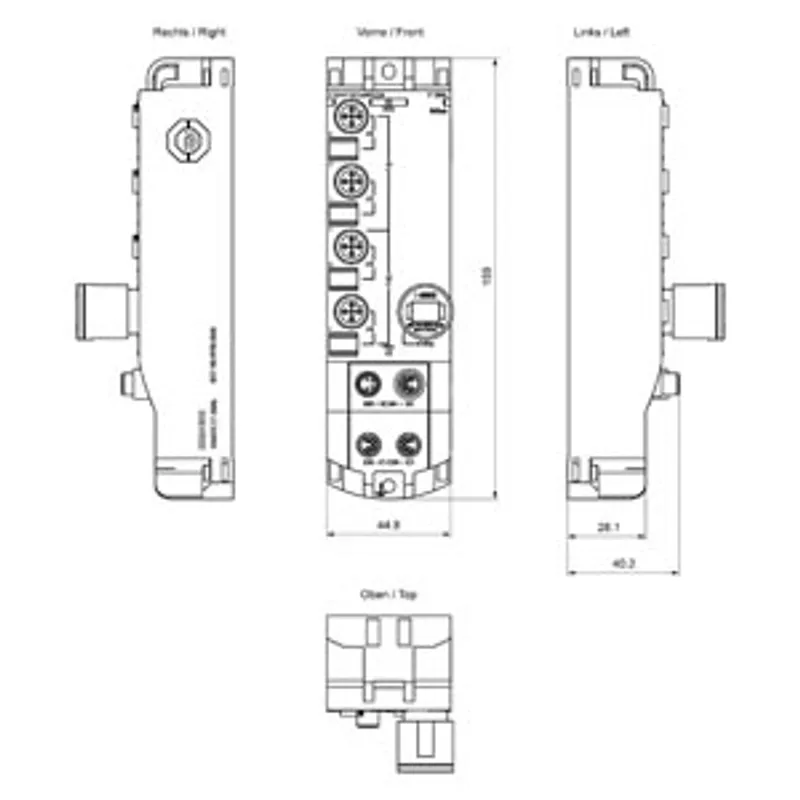

Dimensions
| Width | 45 mm |
| Height | 159 mm |
| Depth | 40 mm |
Weights
| Weight, approx. | 220 g |
