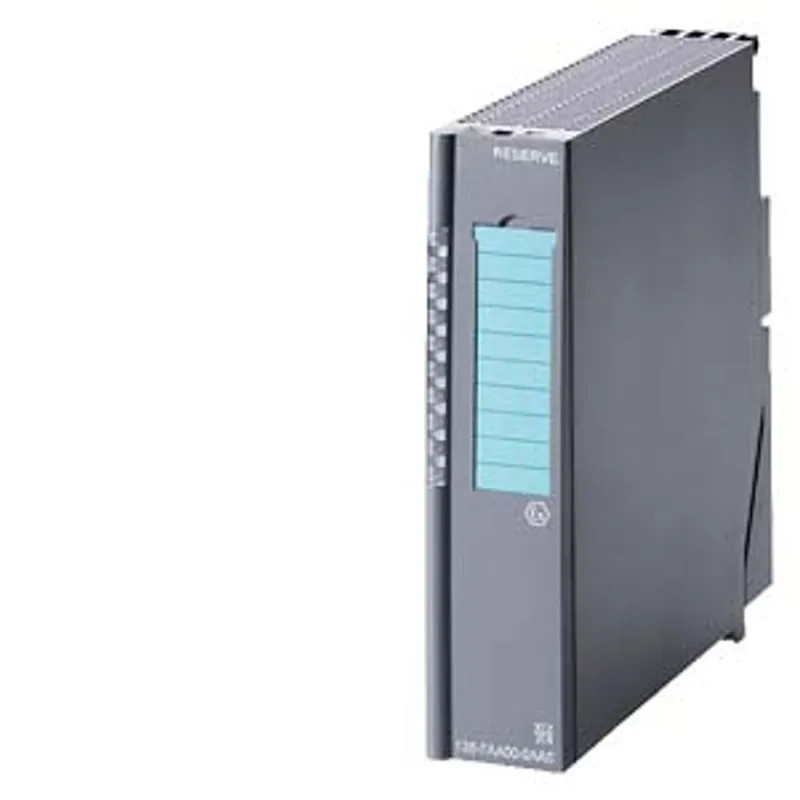

Siemens 6ES7138-7BB00-0AB0
SIMATIC, watchdog module for ET200iSP, Ex ib IIC T4 Gb, Ex ib I Mb
- MPN
- 6ES7138-7BB00-0AB0
- Category
- Watchdog module
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7138-7BB00-0AB0?
SIMATIC, watchdog module for ET200iSP, Ex ib IIC T4 Gb, Ex ib I Mb
Specifications
General information
| Product type designation | Watchdog module |
| HW functional status | 4 |
| Firmware version | V1.0.2 |
Installation type/mounting
| Rack mounting | No |
| Front mounting | Yes |
| Rail mounting | Yes |
| Wall mounting/direct mounting | Yes |
Supply voltage
| Type of supply voltage | DC |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| from load voltage (power bus), max. | 2 mA * number of connected digital output modules |
Power loss
| Power loss, typ. | 50 mW |
Hardware configuration
| Fieldbus connection via separate transceiver | Yes |
Digital inputs
| Number of digital inputs | 0 |
Interfaces
| Number of PROFINET interfaces | 0 |
| Number of RS 485 interfaces | 0 |
Protocols
| Supports protocol for PROFINET IO | No |
| PROFIsafe | No |
| PROFIBUS | No |
Interrupts/diagnostics/status information
| Diagnoses — Diagnostic information readable | Yes |
| Diagnostics indication LED — Group error SF (red) | Yes |
| Diagnostics indication LED — Status indicator digital input (green) | Yes |
Ex(i) characteristics
| Module for Ex(i) protection | Yes; for more Co/Lo combinations, see certificate IECEx KEM 06.0026 |
| maximum values for connecting terminals for gas group IIC — Uo (no-load voltage), max. | 12.7 V |
| maximum values for connecting terminals for gas group IIC — Io (short-circuit current), max. | 329 mA |
| maximum values for connecting terminals for gas group IIC — Po (power output), max. | 0.91 W |
| maximum values for connecting terminals for gas group IIC — Co (permissible external capacity), max. | 1 µF |
| maximum values for connecting terminals for gas group IIC — Lo (permissible external inductivity), max. | 0.3 mH |
Potential separation
| between the channels and backplane bus | Yes |
| between channels and powerbus | Yes |
Permissible potential difference
| between different circuits | 60 V DC/30 V AC |
Degree and class of protection
| IP degree of protection | IP30 |
Standards, approvals, certificates
| CE mark | CE 0344 |
| UKCA mark | DEKRA 21UKEX0028 Importer UK: Siemens plc Manchester M20 2UR |
| cULus | LISTED E334384 |
| FM approval | CLASSIFIED 3025852 |
| Suitable for safety functions | No |
| INMETRO certificate | UL-BR 12.0075 |
| reference designation according to IEC 81346-2 (2009) | K |
| Use in hazardous areas — ATEX marking | II 2 G Ex ib IIC T4 Gb I M2 Ex ib I Mb |
| Use in hazardous areas — ATEX certificate | KEMA 06 ATEX 0086 |
| Use in hazardous areas — IECEx | IECEx KEM 06.0026 |
| Use in hazardous areas — CCC Ex | 2020322316002993 |
| Use in hazardous areas — EAC Ex | 1Ex ib IIC T4 Gb PB Ex ib I Mb |
| Use in hazardous areas — FM marking | Class I, Zone 1 AEx ib IIC T4 Ex ib IIC T4 NI, Class I, Division 2, GP. A,B,C,D T4 DIP, Class II, III, GP. E,F,G |
| Use in hazardous areas — Explosion protection category for gas | ATEX gas explosion protection, Zone 1 |
| Use in hazardous areas — Explosion protection category for dust | No |
| Use in hazardous areas — associated equipment (Ex ia) | No |
| Use in hazardous areas — associated equipment (Ex ib) | Yes |
| Marine approval — Germanischer Lloyd (GL) | Yes |
| Marine approval — American Bureau of Shipping (ABS) | Yes |
| Marine approval — Bureau Veritas (BV) | Yes |
| Marine approval — Det Norske Veritas (DNV) | Yes |
Connection method
| Design of electrical connection | Screw/spring-type terminal |

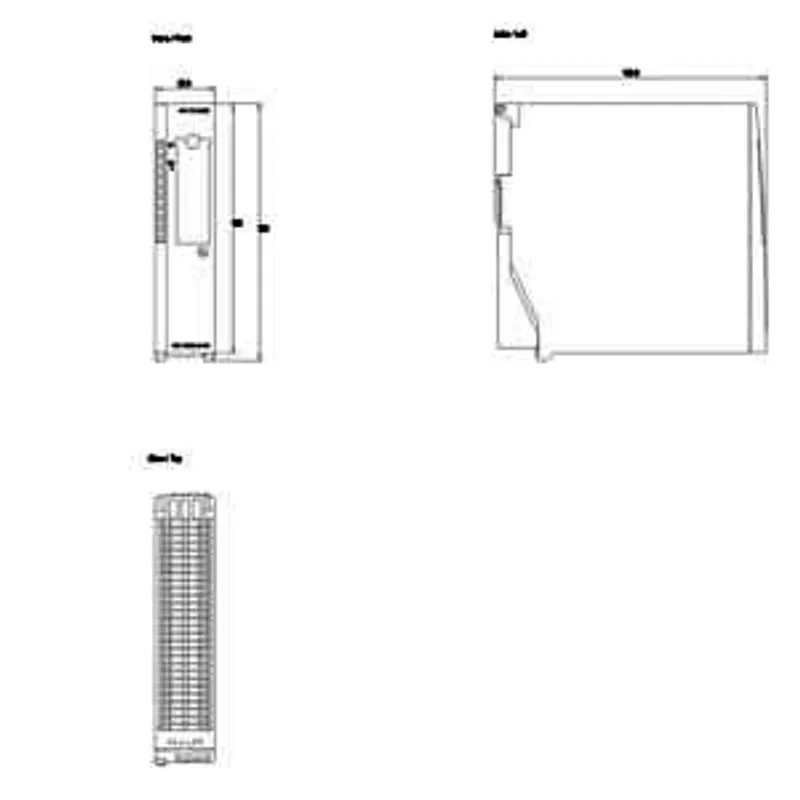

Dimensions
| Width | 30 mm |
| Height | 129 mm |
| Depth | 136.5 mm |
