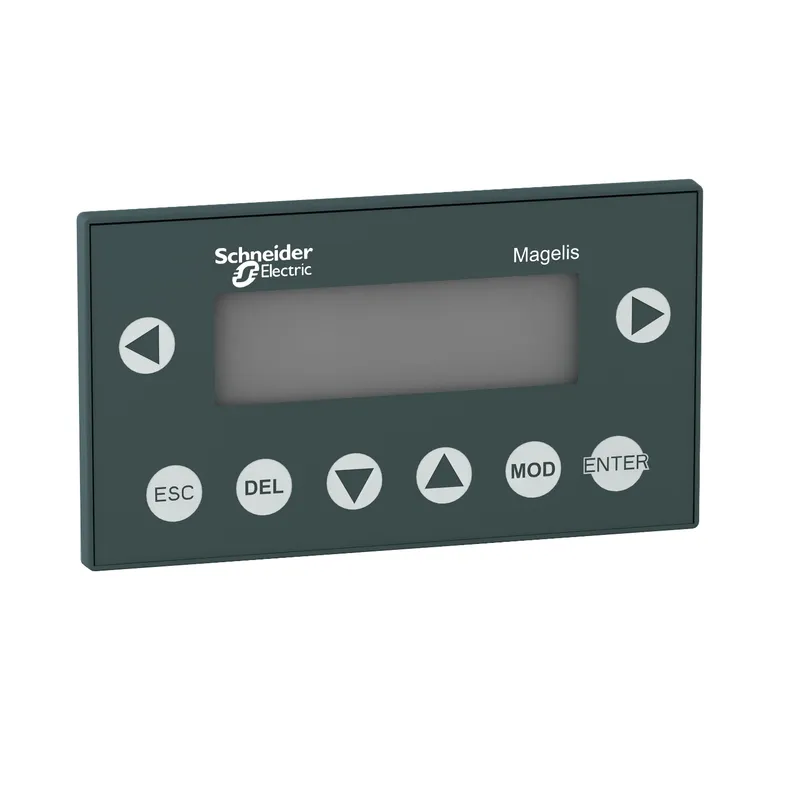

Schneider Electric XBTN410

Small panel with keypad - with matrix screen - green - 24 V

MPN
XBTN410
EAN
3389119000024
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original XBTN410 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric XBTN410?

This product is part of the Magelis XBT N range, an offer of HMI small panels. It comes a keypad and extra-bright matrix backlit green LCD display with a resolution of 122 x 32 pixels. The display supports ASCII, Katakana, Chinese (simplified Chinese), Greek and Cyrillic character fonts on 4 lines of 20 characters maximum and 1 line of 5 characters minimum messages. The HMI small panel provides operators enhanced text and image display, utilising graphic objects for display flexibility. It supports Vijeo Designer Lite configuration software and Magelis operating system with 512kB flash memory. It is equipped with removable screw terminal block, 25-way female D-Sub (DB-25), asynchronous transmission mode (RS232C/RS485) multidrop topology serial link integrated connections. It is an IP20/IP65 and NEMA 4X rated product. This keypad is made of polyester and front material is PPT. Its dimensions are 132mm (width) x 43mm (depth) x 74mm (height) and weighs 0.38kg. This product is certified by CE, ATEX, UL and CSA. It meets IEC 60068-2-27, UL 508, IEC 61131-2, CSA C22.2 No 14 and IEC 60068-2-6 standards. The Magelis XBT N, R, RT range brings you convenience and ease of use, with a compact product, touch screen features and semi-graphic display suitable for small machines. Display text messages, utilize semi-graphic screen, perform diagnostics, control and adjust your control system devices and deliver big things for your business. Discontinued by Schneider Electric; the manufacturer's successor is HMISTO705. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productMagelis XBTN
Product or component typeSmall panel with keypad
Display resolution122 x 32 pixels
Software typeConfiguration software
Software designationVijeo Designer Lite
Operating systemMagelis

Complementary

Display typeExtra-bright matrix backlit LCD
Display colourGreen
Character fontGreek; Katakana; Chinese (simplified Chinese); Cyrillic; ASCII
[Us] rated supply voltage24 V DC
SupplyExternal source
Supply voltage limits18…30 V
Residual ripple1200 mV
Power consumption in W5 W
Number of key8
Number of fixed keys4
Number of customisable keys4
Number of pages200 application pages; 256 alarm pages
Memory typeFlash
Memory capacity512 KB
Integrated connection typePower supply: removable screw terminal block; Serial link: female SUB-D 25, asynchronous transmission mode (RS232C/RS485)multidrop topology
Realtime clockAccess to the PLC real-time clock
Product mountingFlush mounting
fixing modeBy 2 spring clips
Display materialPolyester
Front materialPPT
Keypad materialPolyester
MarkingCE
Width132 mm
Height74 mm
Depth43 mm
Cut-out dimensions119.4 (+/- 0.5) x 63 (+/- 0.4) mm
Net weight0.38 kg

Environment

Messages display capacity1 line of 5 characters minimum; 4 lines of 20 characters maximum
Downloadable protocolsModbus; Third party protocols; Uni-TE
StandardsCSA C22.2 No 14; IEC 61131-2; IEC 60068-2-27; IEC 60068-2-6; UL 508
Product certificationsATEX zone 2/22; UL Class 1 Division 2; UL 1604; CSA Class 1 Division 2
Ambient air temperature for operation0…55 °C
Ambient air temperature for storage-20…60 °C
Relative humidity0…85 % without condensation
IP degree of protectionIP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel (outdoor use)
Shock resistance15 gn for 11 ms
Vibration resistance+/- 3.5 mm (f = 2…8.45 Hz); 1 gn (f = 8.45…150 Hz)

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

XBTN410: frequently asked questions

Can I still buy the XBTN410 now that it is discontinued?

Yes. Schneider Electric has discontinued the XBTN410, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the HMISTO705 as its successor — we can quote both.

When can XBTN410 be shipped?

XBTN410 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up XBTN410 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for XBTN410 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTN410, subject to availability and destination.
