Schneider Electric XBTHM027010

Matrix backlit LCD - 24 V DC - small panel with keypad

MPN
XBTHM027010
EAN
3389110877878
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original XBTHM027010 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric XBTHM027010?

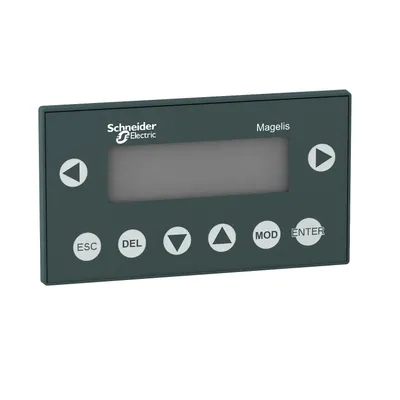

Schneider Electric XBTHM027010 — matrix backlit LCD - 24 V DC - small panel with keypad (Magelis XBT GT). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productMagelis XBT
Software typeConfiguration software
Software designationVijeo Designer Lite
Operating systemWindows

Complementary

Display typeMatrix backlit LCD
Character fontChinese (simplified Chinese); Greek; Cyrillic; Latin; Katakana
Supply voltage limits18…30 V
Residual ripple<= 1200 MV
Power consumption in W5 W
Number of pages200 application pages; 256 alarm pages
Memory typeFlash
Memory capacity512 KB
Realtime clockAccess to the PLC real-time clock
Product mountingFlush mounting
Fixing modeBy 4 spring clips
Display materialPolyester
Front materialPPT
Keypad materialPolyester
MarkingCE

Environment

Product or component typeSmall panel with keypad
Display colourGreen
[Us] rated supply voltage24 V DC
SupplyExternal source
StandardsIEC 60068-2-6; CSA C22.2 No 14; IEC 61131-2; IEC 60068-2-27; UL 508
Product certificationsCSA Class 1 Division 2; UL 1604; ATEX zone 2/22; UL Class 1 Division 2
Ambient air temperature for operation0…55 °C
Ambient air temperature for storage-20…60 °C
Relative humidity0…85 % without condensation
IP degree of protectionIP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel (outdoor use)
Shock resistance15 gn for 11 ms
Vibration resistance+/- 3.5 mm (f= 2…8.45 Hz) conforming to IEC 60068-2-6; 1 gn (f= 8.45…150 Hz) conforming to IEC 60068-2-6

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

XBTHM027010: frequently asked questions

Can I still buy the XBTHM027010 now that it is discontinued?

Yes. Schneider Electric has discontinued the XBTHM027010, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can XBTHM027010 be shipped?

XBTHM027010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up XBTHM027010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for XBTHM027010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTHM027010, subject to availability and destination.
