Schneider Electric XBTP021010

Small panel with keypad - matrix backlit LCD

MPN
XBTP021010
EAN
3389110542820
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original XBTP021010 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric XBTP021010?

Schneider Electric XBTP021010 — small panel with keypad - matrix backlit LCD (Magelis XBT GT). Discontinued by Schneider Electric; the manufacturer's successor is HMISTO705. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productMagelis XBT
Software typeConfiguration software
Software designationVijeo Designer Lite
Operating systemWindows

Complementary

Display typeMatrix backlit LCD
Character fontCyrillic; Chinese (simplified Chinese); Latin; Greek; Katakana
Supply voltage limits18…30 V
Residual ripple<= 1200 MV
Power consumption in W5 W
Number of pages256 alarm pages; 200 application pages
Memory typeFlash
Memory capacity512 KB
Realtime clockAccess to the PLC real-time clock
Product mountingFlush mounting
Fixing modeBy 4 spring clips
Display materialPolyester
Front materialPPT
Keypad materialPolyester
MarkingCE

Environment

Product or component typeSmall panel with keypad
Display colourGreen
[Us] rated supply voltage24 V DC
SupplyExternal source
StandardsIEC 60068-2-27; UL 508; IEC 61131-2; CSA C22.2 No 14; IEC 60068-2-6
Product certificationsCSA Class 1 Division 2; UL Class 1 Division 2; UL 1604; ATEX zone 2/22
Ambient air temperature for operation0…55 °C
Ambient air temperature for storage-20…60 °C
Relative humidity0…85 % without condensation
IP degree of protectionIP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel (outdoor use)
Shock resistance15 gn for 11 ms
Vibration resistance+/- 3.5 mm (f= 2…8.45 Hz) conforming to IEC 60068-2-6; 1 gn (f= 8.45…150 Hz) conforming to IEC 60068-2-6

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

XBTP021010: frequently asked questions

Can I still buy the XBTP021010 now that it is discontinued?

Yes. Schneider Electric has discontinued the XBTP021010, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the HMISTO705 as its successor — we can quote both.

When can XBTP021010 be shipped?

XBTP021010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up XBTP021010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for XBTP021010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTP021010, subject to availability and destination.

More Schneider Electric parts

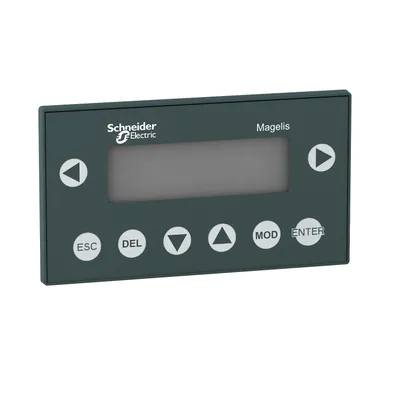

Schneider Electric XBTN410 – Small panel with keypad - with matrix screen - green - 24 V
