Schneider Electric HMISTO715
Touch panel screen, Harmony STO & STU, 4.3inch wide, RS 232/485 RJ45
- MPN
- HMISTO715
- EAN
- 3606480920905
- Category
- Harmony STO & STU
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric HMISTO715?

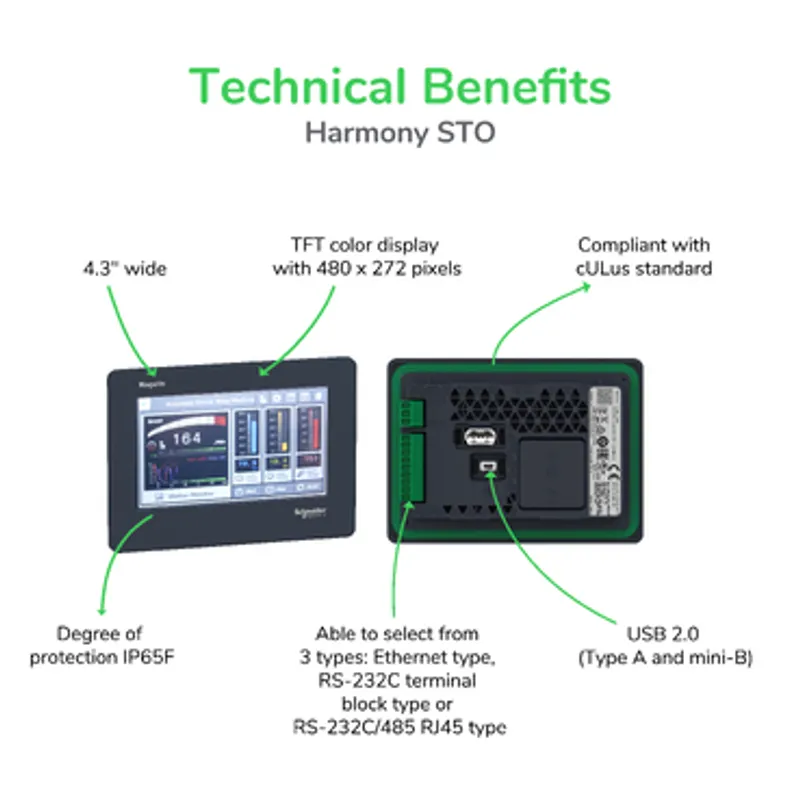

This Magelis STO small touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 4.3" color TFT LCD display with, 480 x 272 pixels and 26MB EPROM. It also has 1 host + 1 mini-B USB ports and 1 RS232C / RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays color graphic pages. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
Specifications
Specifications
| Range of product | Harmony STO & STU |
| Product or component type | Touch panel screen |
| Software package | EcoStruxure Operator Terminal Expert |
| Processor name | ARM926EJ-S |
| Display size | 4.3 inch |
| Display type | Colour TFT LCD |
| Display colour | 65536 colours |
| Display resolution | 480 x 272 pixels |
| Touch panel | Analogue |
| Backlight lifespan | 50000 hours with white |
| Brightness | 16 levels via touch panel |
| Character font | Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII (European characters), Taiwanese (traditional Chinese), Korean, Cyrillic |
| [Us] rated supply voltage | 12...24 V DC - 10...20 % |
| Power consumption in W | 7.5 W |
| Number of pages | 8999 |
| Memory description | Back up of data 512 KB, Application memory 26 MB |

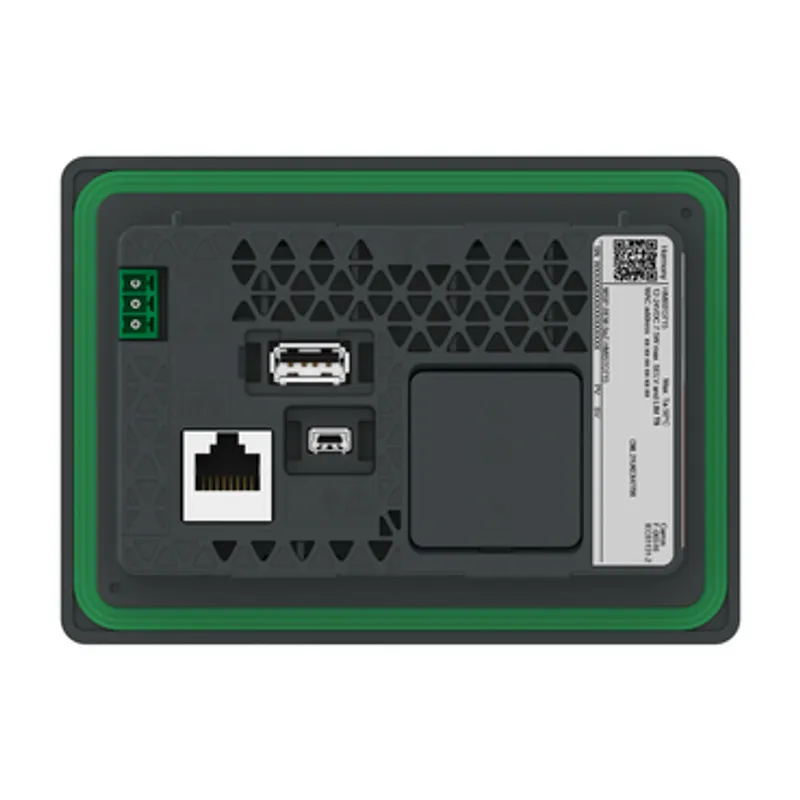

| Integrated connection type | 1 USB 2.0 type mini B, 1 USB 2.0 type A, 1 serial link - RJ45 - RS232C/RS485 (rate: 2400...115200 bps) |
| Supply | External source |
| Realtime clock | With RTC-battery set optional |
| Downloadable protocols | Third party protocols, Modbus |
| Range compatibility | MitsubishI, Omron, Siemens, Allen-Bradley |
| Fixing mode | By 2 installation fasteners, mounting on 1.5 to 6 mm thick panel |
| Enclosure material | PPT |
| Front material | Plastic |
| Cut-out dimensions | 77.5 x 112.5 mm, 66 x 105 mm with mounting adaptor |
| Height | 90.4 mm |
| Width | 124.9 mm |
| Depth | 38.8 mm |
| Net weight | 0.22 kg |
| Standards | ANSI/ISA 12.12.01, CSA C22.2 No 142, UL 61010-2-201, EN 61000-6-2, CSA C22.2 No 213, EN 61000-6-4, UL 61010-1, EN 61131-2 |
| Product certifications | UL, C-Tick, KCC, CE, cUL, ATEX zone 2/22, UKCA |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % without condensation |
| Operating altitude | 2000 m |
| IP degree of protection | IP65f (front panel), IP20 (rear panel) |
| NEMA degree of protection | NEMA 4X/13 front panel (indoor use) |
| Shock resistance | 15 gn for 11 ms conforming to IEC 61131-2 |
| Vibration resistance | 1 gn (f = 5…150 Hz) conforming to IEC 61131-2, 3.5 mm constant amplitude (f = 5…150 Hz) conforming to IEC 61131-2 |
| Electromagnetic compatibility | Resistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz), Resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2, Resistance to electrostatic discharge - test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2 |
Packaging
| Package 1 | 1 PCE, 18.000 cm × 13.000 cm × 7.000 cm (L × W × H), 529.000 g |
| Package 2 | 12 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.795 kg |
| Package 3 | 96 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 63.000 kg |
