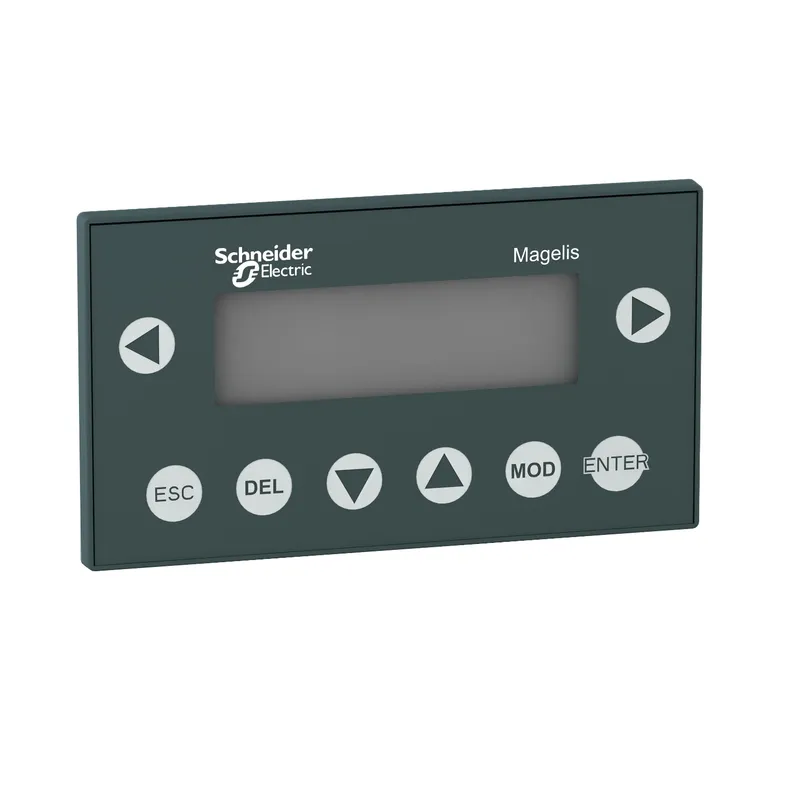

Schneider Electric XBTNU400 – small panel with keypad - with matrix screen - green - 24 V
Discontinued by Schneider Electric — we can still source the original XBTNU400 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magelis XBT N, R, RT |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3389110379976 |
| Recommended replacement | HMISTO705 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the XBTNU400 now that it is discontinued?
Yes. Schneider Electric has discontinued the XBTNU400, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the HMISTO705 as its successor — we can quote both.
When can XBTNU400 be shipped?
XBTNU400 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up XBTNU400 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for XBTNU400 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTNU400, subject to availability and destination.
Schneider Electric XBTNU400 — small panel with keypad - with matrix screen - green - 24 V (Magelis XBT N, R, RT). Discontinued by Schneider Electric; the manufacturer's successor is HMISTO705. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Magelis XBTN |
| Product or component type | Small panel with keypad |
| Display resolution | 122 x 32 pixels |
| Software type | Configuration software |
| Software designation | Vijeo Designer Lite |
| Operating system | Magelis |
Complementary
| Display type | Extra-bright matrix backlit LCD |
| Display colour | Green |
| Character font | ASCII; Katakana; Cyrillic; Greek; Chinese (simplified Chinese) |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 18…30 V |
| Residual ripple | 1200 mV |
| Power consumption in W | 5 W |
| Number of key | 8 |
| Number of fixed keys | 4 |
| Number of customisable keys | 4 |
| Number of pages | 256 alarm pages; 200 application pages |
| Memory type | Flash |
| Memory capacity | 512 KB |
| Integrated connection type | Power supply: removable screw terminal block; Serial link: female SUB-D 25, asynchronous transmission mode (RS232C/RS485)multidrop topology |
| Realtime clock | Access to the PLC real-time clock |
| Product mounting | Flush mounting |
| fixing mode | By 2 spring clips |
| Display material | Polyester |
| Front material | PPT |
| Keypad material | Polyester |
| Marking | CE |
| Width | 132 mm |
| Height | 74 mm |
| Depth | 43 mm |
| Cut-out dimensions | 119.4 (+/- 0.5) x 63 (+/- 0.4) mm |
Environment
| Messages display capacity | 1 line of 5 characters minimum; 4 lines of 20 characters maximum |
| Downloadable protocols | Modbus |
| Standards | IEC 60068-2-27; IEC 61131-2; CSA C22.2 No 14; IEC 60068-2-6; UL 508 |
| Product certifications | UL 1604; UL Class 1 Division 2; CSA Class 1 Division 2; ATEX zone 2/22 |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 0…85 % without condensation |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel (outdoor use) |
| Shock resistance | 15 gn for 11 ms |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet XBTNU400 |
