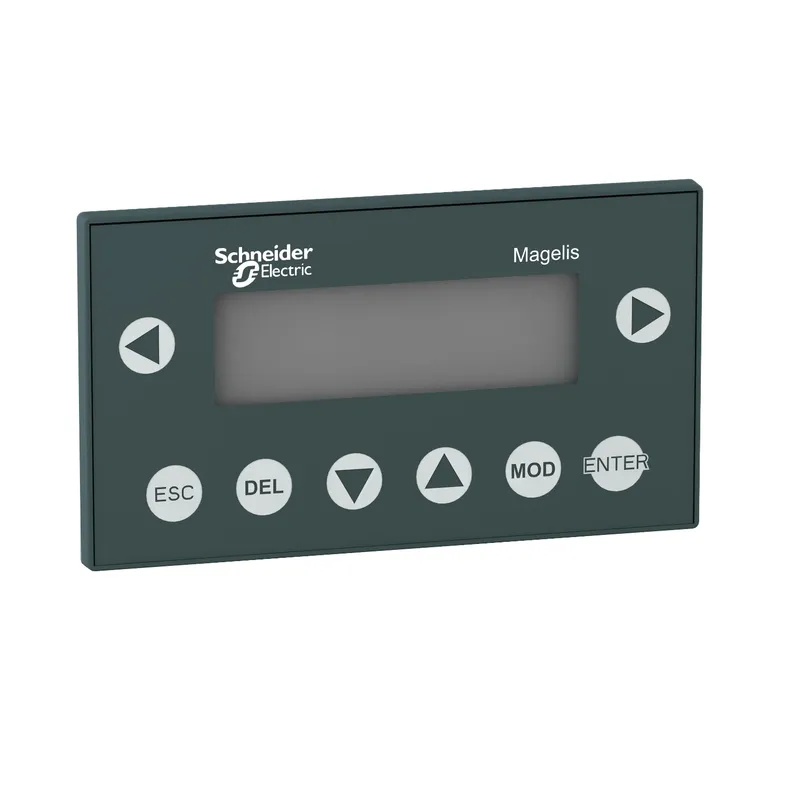

Schneider Electric XBTN400 – small panel with keypad - with matrix screen - green - 5 V
Discontinued by Schneider Electric — we can still source the original XBTN400 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magelis XBT N, R, RT |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | CN |
| UPC / EAN | 3389110379952 |
| Recommended replacement | HMISTO715 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the XBTN400 now that it is discontinued?
Yes. Schneider Electric has discontinued the XBTN400, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the HMISTO715 as its successor — we can quote both.
When can XBTN400 be shipped?
XBTN400 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up XBTN400 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for XBTN400 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTN400, subject to availability and destination.
This product is part of the Magelis XBT N range, an offer of HMI small panels. It comes a keypad and extra-bright matrix backlit green LCD display with a resolution of 122 x 32 pixels. The display supports ASCII, Katakana, Chinese (simplified Chinese), Greek and Cyrillic character fonts on 4 lines of 20 characters maximum and 1 line of 5 characters minimum messages. The HMI small panel provides operators enhanced text and image display, utilising graphic objects for display flexibility. It supports Vijeo Designer Lite configuration software and Magelis operating system with 512kB flash memory. It is equipped with female RJ45, asynchronous transmission mode (RS232C/RS485) point-to-point topology serial link integrated connections. It is an IP20/IP65 and NEMA 4X rated product. This keypad is made of polyester and front material is PPT. Its dimensions are 132mm (width) x 43mm (depth) x 74mm (height) and weighs 0.36kg. This product is certified by CE, ATEX, UL and CSA. It meets IEC 60068-2-27, UL 508, IEC 61131-2, CSA C22.2 No 14 and IEC 60068-2-6 standards. The Magelis XBT N, R, RT range brings you convenience and ease of use, with a compact product, touch screen features and semi-graphic display suitable for small machines. Display text messages, utilize semi-graphic screen, perform diagnostics, control and adjust your control system devices and deliver big things for your business. Discontinued by Schneider Electric; the manufacturer's successor is HMISTO715. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Magelis XBTN |
| Product or component type | Small panel with keypad |
| Display resolution | 122 x 32 pixels |
| Software type | Configuration software |
| Software designation | Vijeo Designer Lite |
| Operating system | Magelis |
Complementary
| Display type | Extra-bright matrix backlit LCD |
| Display colour | Green |
| Character font | ASCII; Chinese (simplified Chinese); Katakana; Cyrillic; Greek |
| [Us] rated supply voltage | 5 V DC |
| Supply | From PLC (terminal port) |
| Number of key | 8 |
| Number of fixed keys | 4 |
| Number of customisable keys | 4 |
| Number of pages | 256 alarm pages; 200 application pages |
| Memory type | Flash |
| Memory capacity | 512 KB |
| Integrated connection type | Serial link: female RJ45, asynchronous transmission mode (RS232C/RS485)point-to-point topology |
| Realtime clock | Access to the PLC real-time clock |
| Product mounting | Flush mounting |
| fixing mode | By 2 spring clips |
| Display material | Polyester |
| Front material | PPT |
| Keypad material | Polyester |
| Marking | CE |
| Width | 132 mm |
| Height | 74 mm |
| Depth | 43 mm |
| Cut-out dimensions | 119.4 (+/- 0.5) x 63 (+/- 0.4) mm |
| Net weight | 0.36 kg |
Environment
| Messages display capacity | 4 lines of 20 characters maximum; 1 line of 5 characters minimum |
| Downloadable protocols | Uni-TE; Modbus |
| Standards | UL 508; IEC 61131-2; CSA C22.2 No 14; IEC 60068-2-27; IEC 60068-2-6 |
| Product certifications | CSA Class 1 Division 2; UL 1604; UL Class 1 Division 2; ATEX zone 2/22 |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 0…85 % without condensation |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel (outdoor use) |
| Shock resistance | 15 gn for 11 ms |
| Vibration resistance | +/- 3.5 mm (f = 2…8.45 Hz); 1 gn (f = 8.45…150 Hz) |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet XBTN400 |
