Schneider Electric HMISTO705

Touch panel screen, Harmony STO & STU, 4.3inch wide, RS 232 terminal block

MPN
HMISTO705
EAN
3606480920899
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric HMISTO705?

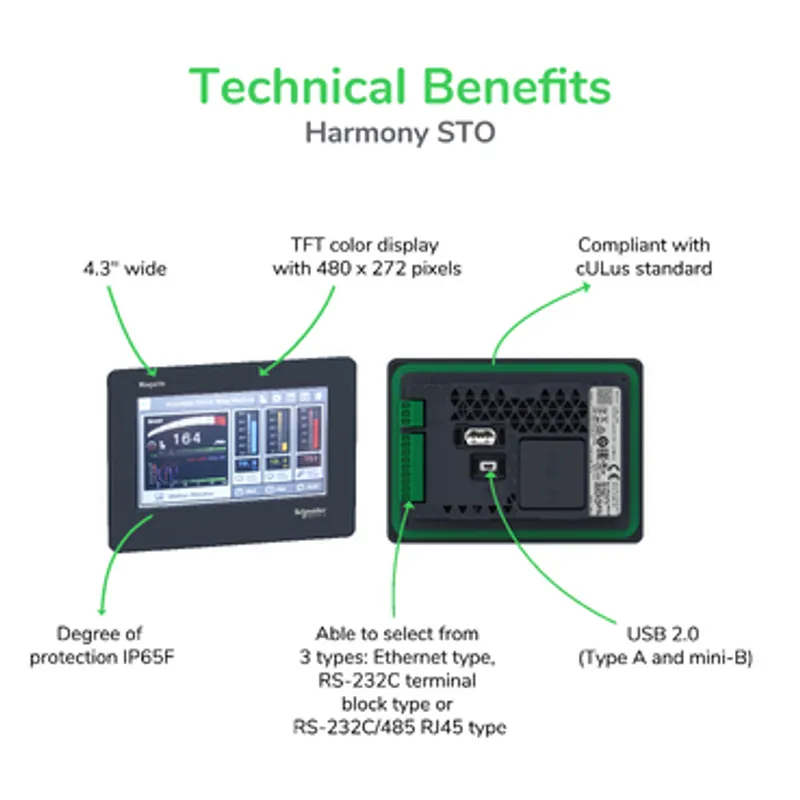

This Magelis STO small touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 4.3" color TFT LCD display with, 480 x 272 pixels and 26MB EPROM. It also has 1 host + 1 mini-B USB ports and 1 RS232C / RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays color graphic pages. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Specifications

Specifications

Range of productHarmony STO & STU
Product or component typeTouch panel screen
Software packageEcoStruxure Operator Terminal Expert
Processor nameARM926EJ-S
Display size4.3 inch
Display typeColour TFT LCD
Display colour65536 colours
Display resolution480 x 272 pixels
Touch panelAnalogue
Backlight lifespan50000 hours with white
Brightness16 levels via touch panel
Character fontASCII (European characters), Chinese (simplified Chinese), Korean, Japanese (ANK, Kanji), Cyrillic, Taiwanese (traditional Chinese)
[Us] rated supply voltage12...24 V DC - 10...20 %
Power consumption in W7.5 W
Number of pages8999
Memory descriptionBack up of data 512 KB, Application memory 26 MB

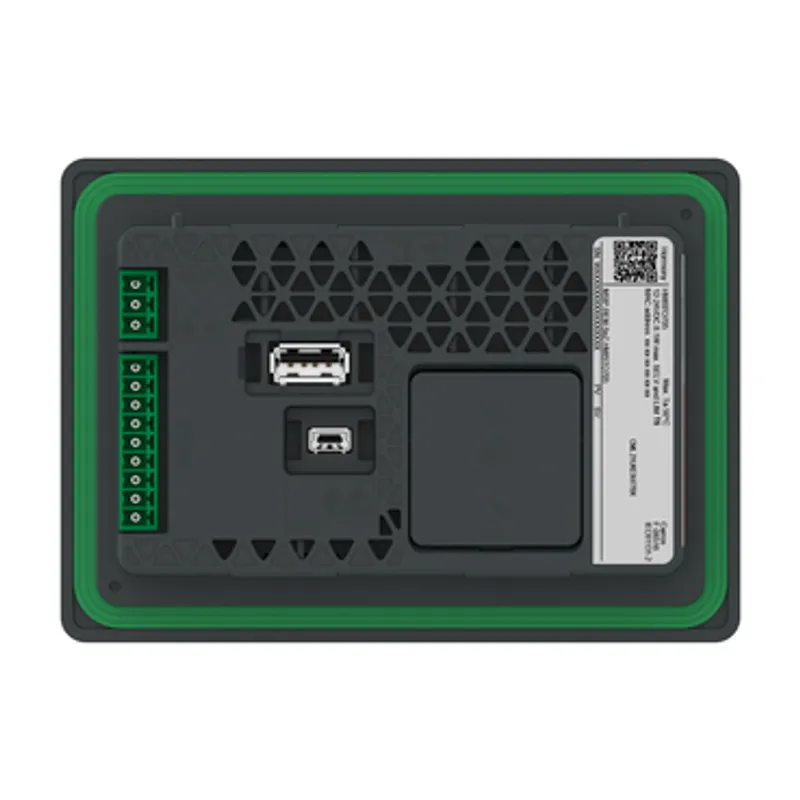

Integrated connection type1 USB 2.0 type mini B, 1 USB 2.0 type A, 1 serial link - 9-pin terminal block - RS232C (rate: 2400...115200 bps)
SupplyExternal source
Realtime clockWith RTC-battery set optional
Downloadable protocolsThird party protocols, Modbus
Range compatibilityMitsubishI, Siemens, Omron, Allen-Bradley
Fixing modeBy 2 installation fasteners, mounting on 1.5 to 6 mm thick panel
Enclosure materialPPT
Front materialPlastic
Cut-out dimensions77.5 x 112.5 mm, 66 x 105 mm with mounting adaptor
Height90.4 mm
Width124.9 mm
Depth38.8 mm
Net weight0.22 kg
StandardsANSI/ISA 12.12.01, CSA C22.2 No 142, EN 61000-6-2, CSA C22.2 No 213, UL 61010-1, EN 61131-2, EN 61000-6-4, UL 61010-2-201
Product certificationsKCC, CE, UL, C-Tick, ATEX zone 2/22, cUL, UKCA
Ambient air temperature for operation0…50 °C
Ambient air temperature for storage-20…60 °C
Relative humidity10…90 % without condensation
Operating altitude2000 m
IP degree of protectionIP65f (front panel), IP20 (rear panel)
NEMA degree of protectionNEMA 4X/13 front panel (indoor use)
Shock resistance15 gn for 11 ms conforming to IEC 61131-2
Vibration resistance1 gn (f = 5…150 Hz) conforming to IEC 61131-2, 3.5 mm constant amplitude (f = 5…150 Hz) conforming to IEC 61131-2
Electromagnetic compatibilityResistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz), Resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2, Resistance to electrostatic discharge - test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2

Packaging

Package 11 PCE, 18.200 cm × 13.500 cm × 8.000 cm (L × W × H), 524.000 g
Package 212 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.782 kg
