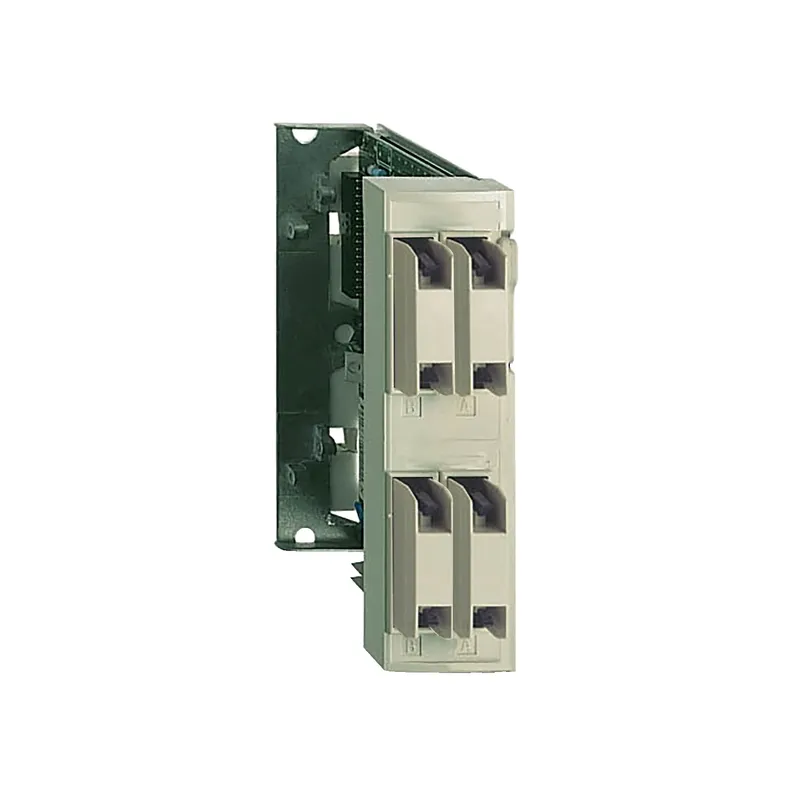

Schneider Electric TSXDMZ64DTK
TSX Micro - 64 I/O solid state
- MPN
- TSXDMZ64DTK
- EAN
- 3389110540475
- Category
- Modicon TSX Micro
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TSXDMZ64DTK (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TSXDMZ64DTK?
This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This discrete solid state I/O base has 32 discrete inputs (by HE-10 connector) and 32 discrete outputs (by HE-10 connector) with positive output logic. It is a solid state I/O base with residual voltage of 0.3V and power dissipation of 3.5W by module output, 0.15W by channel output, 5W input, an I/O voltage of 24V DC, a current consumption of 197mA and an isolation voltage of 1500V. It weighs 0.41kg. It is suitable for infrastructures, machine and manufacturing control applications. It meets IEC 1131-2 Type 1 standards. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete solid state I/O base DC |
| Discrete input number | 32 1 HE-10 connector |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Discrete input current | 3.5 mA |
| Discrete input type | Current sink |
| Discrete output number | 32 1 HE-10 connector |
| Discrete output voltage | 24 V DC |
| Discrete output current | 0.1 mA |
| Discrete output logic | Positive |
Complementary
| Input voltage limits | >= 11 V at state 1; < 5 V at state 0 |
| Current state 0 guaranteed | <= 1.5 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Input impedance | 6.3 Ohm |
| Response time | 0.1...7.5 ms from state 1 to state 0 input; 0.1...7.5 ms from state 0 to state 1 input; < 2.5 ms from state 1 to state 0 output; < 2.5 ms from state 0 to state 1 output |
| Input compatibility | 2-wire/3-wire proximity sensor |
| Current consumption | 197 mA |
| Power dissipation in W | 3.5 W by module output; 0.15 W by channel output; 5 W input |
| Output voltage limits | 19...30 V |
| Output current limits | 0.25 A |
| Maximum leakage current | 0.1 mA at state 0 |
| [Ures] residual voltage | 1.5 V |
| Load impedance ohmic | 220 Ohm |
| Switching frequency | < 0.5/LI² Hz |
| Output overvoltage protection | By zener diode |
| Output short-circuit protection | By current limiter and electronic circuit breaker |
| Reverse polarity protection | Reverse diode on power supply |
| Paralleling of outputs | Yes : 3 maximum |
| Isolation voltage | 1500 V for 1 s |
| Net weight | 0.41 kg |
Environment
| Standards | IEC 1131-2 Type 1 |
