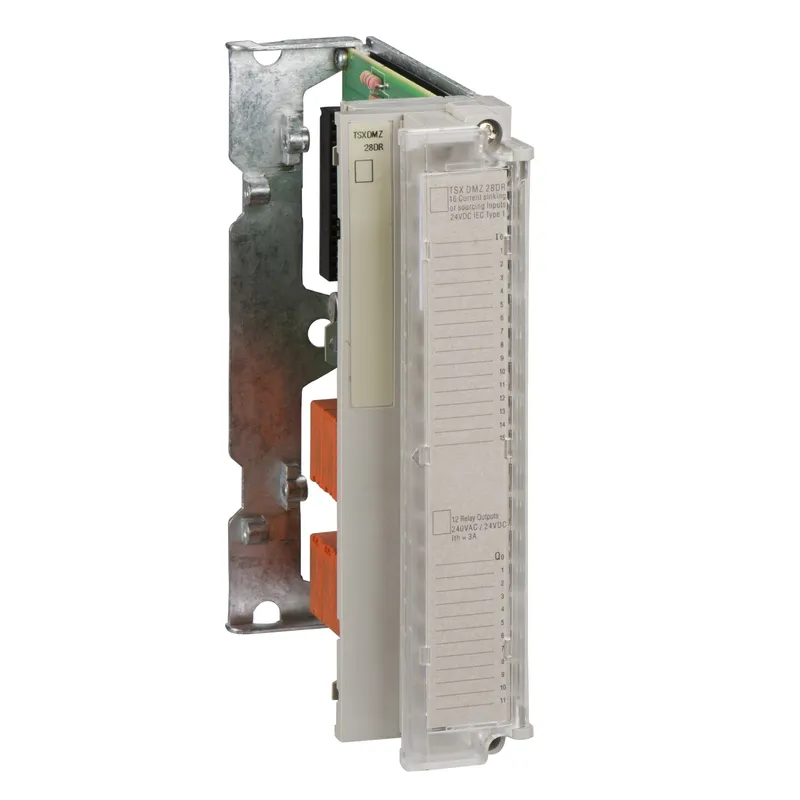

Schneider Electric TSXDMZ28DR – TSX Micro - 28 I/O 24 V DC relay
Discontinued by Schneider Electric — we can still source the original TSXDMZ28DR (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon TSX Micro |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3389110540543 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TSXDMZ28DR now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXDMZ28DR, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TSXDMZ28DR be shipped?
TSXDMZ28DR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXDMZ28DR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXDMZ28DR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXDMZ28DR, subject to availability and destination.
Schneider Electric TSXDMZ28DR — TSX Micro - 28 I/O 24 V DC relay (Modicon TSX Micro). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete relay I/O base |
| Discrete input number | 16 screw terminal block |
| Discrete input voltage | 24 V DC, discrete input logic: negative |
| Discrete input current | 9 mA |
Complementary
| Input voltage limits | <= 8 V at state 1 |
| Current state 0 guaranteed | <= 1.5 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Input impedance | 4 Ohm |
| Response time | 0.1...7.5 ms input at state 0 to state 1; 0.1...7.5 ms input at state 1 to state 0; < 10 ms output |
| Input compatibility | 2-wire/3-wire proximity sensor |
| load type | Resistive |
| Current consumption | 160 mA positive; 131 mA negative |
| Power dissipation in W | 4.5 W |
| Output voltage limits | 19…264 V AC; 10...34 V DC |
| Contacts type and composition | NO |
| Power consumption in VA | 50 VA 24 V AC-12 resistive; 110 VA 48 V AC-12 resistive; 220 VA 110 V AC-12 resistive; 220 VA 220 V AC-12 resistive; 24 VA 24 V AC-15 inductive; 24 VA 48 V AC-15 inductive; 220 VA 220 V AC-15 inductive; 110 VA 110 V AC-15 inductive |
| Power consumption in W | 40 W 24 V DC-12 resistive; 24 W 24 V DC-13 inductive |
| Isolation voltage | 1500 V for 1 s |
| Insulation resistance | >= 10 mOhm |
| Net weight | 0.5 kg |
Environment
| Standards | IEC 1131-2 Type 1 |
| [Ith] conventional free air thermal current | 3 A |
