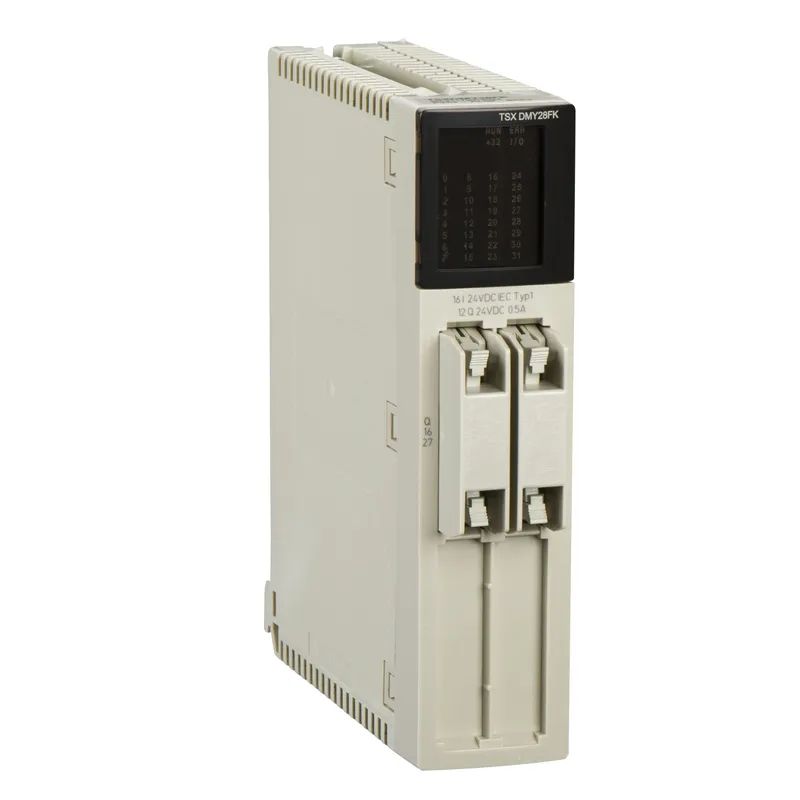

Schneider Electric TSXDMY28RFK – discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state
Discontinued by Schneider Electric — we can still source the original TSXDMY28RFK (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Premium |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| UPC / EAN | 3595860018090 |
| Recommended replacement | BMXDDM16022 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TSXDMY28RFK now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXDMY28RFK, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXDDM16022 as its successor — we can quote both.
When can TSXDMY28RFK be shipped?
TSXDMY28RFK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXDMY28RFK in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXDMY28RFK and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXDMY28RFK, subject to availability and destination.
Schneider Electric TSXDMY28RFK — discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state. Discontinued by Schneider Electric; the manufacturer's successor is BMXDDM16022. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon Premium Automation platform |
| Product or component type | Discrete I/O modules |
| Discrete I/O number | 28 |
| Discrete input number | 16 current sink fast input conforming to IEC 1131-2 Type 1 |
| Input logic | Positive |
| Input voltage | 24 V 3.5 mA DC |
Complementary
| Voltage state 1 guaranteed | >= 11 V |
| Current state 1 guaranteed | >= 3 mA |
| Voltage state 0 guaranteed | <= 5 V |
| Current state 0 guaranteed | <= 1.5 mA |
| Sensor power supply | 19…30 V |
| Filter time | 4 ms by default; 0.1 to 7.5 ms by configuration |
| Paralleling of inputs | Yes |
| Input compatibility | 2-wire/3-wire proximity sensor |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation | 1.2 W + 0.1 x number of input at 1 |
| Discrete output number | 12 |
| Maximum tungsten load | <6 W for solid state output |
| Output voltage | 24 V 0.5 A |
| Discrete output type | Reflex or time delayed |
| Output voltage limits | 19...30 V |
| Maximum output current | 4 A by module; 0.5 A by channel |
| Maximum leakage current | 1 mA at state 0 |
| [Ures] residual voltage | 1.2 V at state 1 |
| Minimum load impedance | 48 W |
| Response time on output | 0.6 ms |
| Switching frequency | 0.5/LI² Hz |
| Output overvoltage protection | By transil diode |
| Reverse polarity protection | Reversed diode |
| Preactuator voltage detection threshold | 16 V |
| Electrical connection | 2 connectors HE-10 |
| Current consumption | 300 mA at 5 V DC; 75 mA at 24 V DC |
| Module format | Standard |
Environment
| Dielectric strength | 1500 V 50/60 Hz for 1 minute |
| Derating factor | 60 % of inputs at state 1 at 60 °C fast input; 60 % of the maximum current of the module at 60 °C solid state output |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | <= 2000 m |
