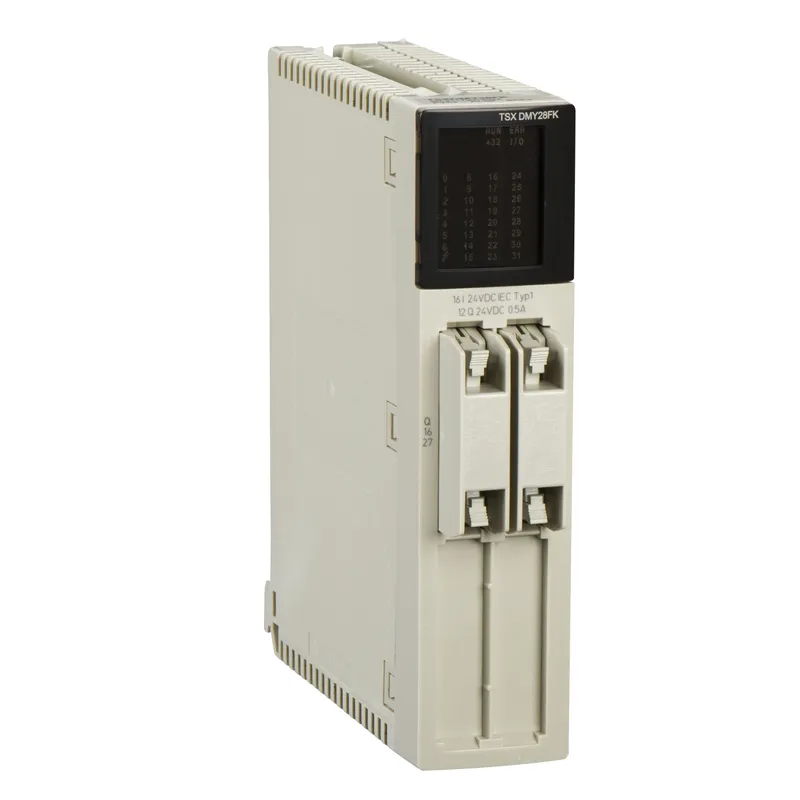

Schneider Electric TSXDMY28FK – discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state

Name: Schneider Electric TSXDMY28FK – discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state
Brand: Schneider Electric
SKU: TSXDMY28FK

MPN: TSXDMY28FK · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original TSXDMY28FK (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Premium
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	FR
UPC / EAN	3389110896404
Recommended replacement	BMXDDM16022
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the TSXDMY28FK now that it is discontinued?

Yes. Schneider Electric has discontinued the TSXDMY28FK, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXDDM16022 as its successor — we can quote both.

When can TSXDMY28FK be shipped?

TSXDMY28FK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXDMY28FK in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXDMY28FK and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXDMY28FK, subject to availability and destination.

Schneider Electric TSXDMY28FK — discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state. Discontinued by Schneider Electric; the manufacturer's successor is BMXDDM16022. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Premium Automation platform
Product or component type	Discrete I/O modules
Discrete I/O number	28
Discrete input number	16 current sink fast input conforming to IEC 1131-2 Type 1
Input logic	Positive
Input voltage	24 V 3.5 mA DC

Complementary

Voltage state 1 guaranteed	>= 11 V
Current state 1 guaranteed	>= 3 mA
Voltage state 0 guaranteed	<= 5 V
Current state 0 guaranteed	<= 1.5 mA
Sensor power supply	19…30 V
Filter time	0.1 to 7.5 ms by configuration; 4 ms by default
Paralleling of inputs	Yes
Input compatibility	2-wire/3-wire proximity sensor
Insulation resistance	> 10 MOhm 500 V DC
Power dissipation	1.2 W + 0.1 x number of input at 1
Discrete output number	12
Maximum tungsten load	<6 W for solid state output
Output voltage	24 V 0.5 A
Discrete output type	Solid state
Output voltage limits	19...30 V
Maximum output current	4 A by module; 0.5 A by channel
Maximum leakage current	1 mA at state 0
[Ures] residual voltage	1.2 V at state 1
Minimum load impedance	48 W
Response time on output	0.6 ms
Switching frequency	0.5/LI² Hz
Output overvoltage protection	By transil diode
Reverse polarity protection	Reversed diode
Preactuator voltage detection threshold	16 V
Electrical connection	2 connectors HE-10
Current consumption	300 mA at 5 V DC; 75 mA at 24 V DC
Module format	Standard
Net weight	0.32 kg

Environment

Dielectric strength	1500 V 50/60 Hz for 1 minute
Derating factor	60 % of inputs at state 1 at 60 °C fast input; 60 % of the maximum current of the module at 60 °C solid state output
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	5…95 % without condensation
Operating altitude	<= 2000 m
