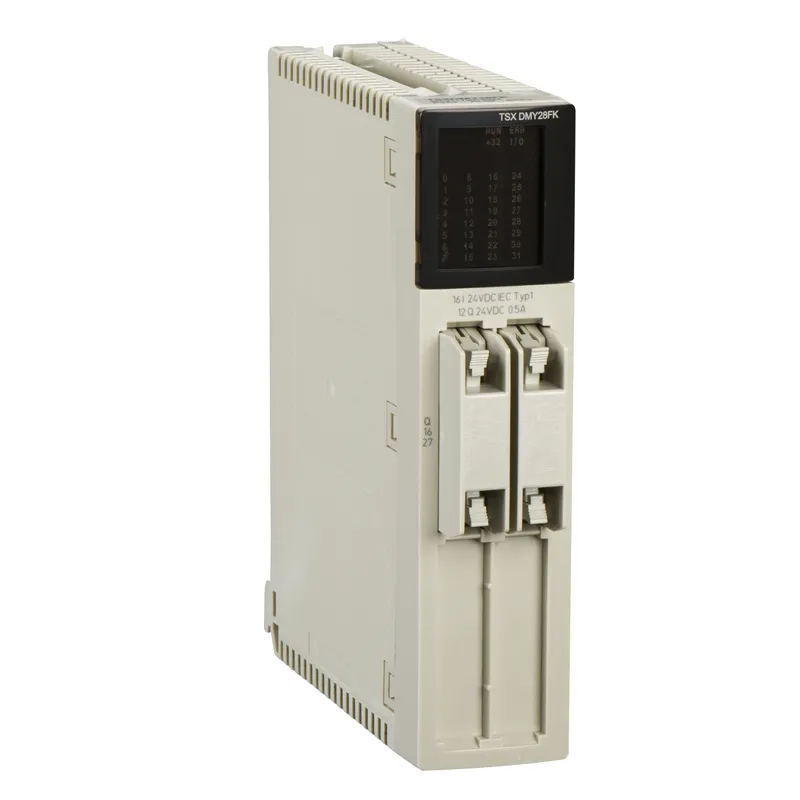

Coated discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state

MPN: TSXDMY28FKC
EAN: 3595863936728
Category: Modicon Premium

Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original TSXDMY28FKC (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TSXDMY28FKC?

Schneider Electric TSXDMY28FKC — coated discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state. Discontinued by Schneider Electric; the manufacturer's successor is BMXDDM16022H. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Premium Automation platform
Product or component type	Discrete I/O modules
Discrete I/O number	28
Discrete input number	16 current sink fast input conforming to IEC 1131-2 Type 1
Input logic	Positive
Input voltage	24 V 3.5 mA DC

Complementary

Voltage state 1 guaranteed	>= 11 V
Current state 1 guaranteed	>= 3 mA
Voltage state 0 guaranteed	<= 5 V
Current state 0 guaranteed	<= 1.5 mA
Sensor power supply	19…30 V
Filter time	0.1 to 7.5 ms by configuration; 4 ms by default
Paralleling of inputs	Yes
Input compatibility	2-wire/3-wire proximity sensor
Insulation resistance	> 10 MOhm 500 V DC
Power dissipation	1.2 W + 0.1 x number of input at 1
Discrete output number	12
Maximum tungsten load	<6 W for solid state output
Output voltage	24 V 0.5 A
Discrete output type	Solid state
Output voltage limits	19...30 V
Maximum output current	4 A by module; 0.5 A by channel
Maximum leakage current	1 mA at state 0
[Ures] residual voltage	1.2 V at state 1
Minimum load impedance	48 W
Response time on output	0.6 ms
Switching frequency	0.5/LI² Hz
Output overvoltage protection	By transil diode
Reverse polarity protection	Reversed diode
Preactuator voltage detection threshold	16 V
Electrical connection	2 connectors HE-10
Current consumption	300 mA at 5 V DC; 75 mA at 24 V DC
Module format	Standard
Protective treatment	Conformal coating Humiseal 1A33
Net weight	0.32 kg

Environment

Dielectric strength	1500 V 50/60 Hz for 1 minute
Derating factor	60 % of inputs at state 1 at 60 °C fast input; 60 % of the maximum current of the module at 60 °C solid state output
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	5…95 % without condensation
Operating altitude	<= 2000 m
