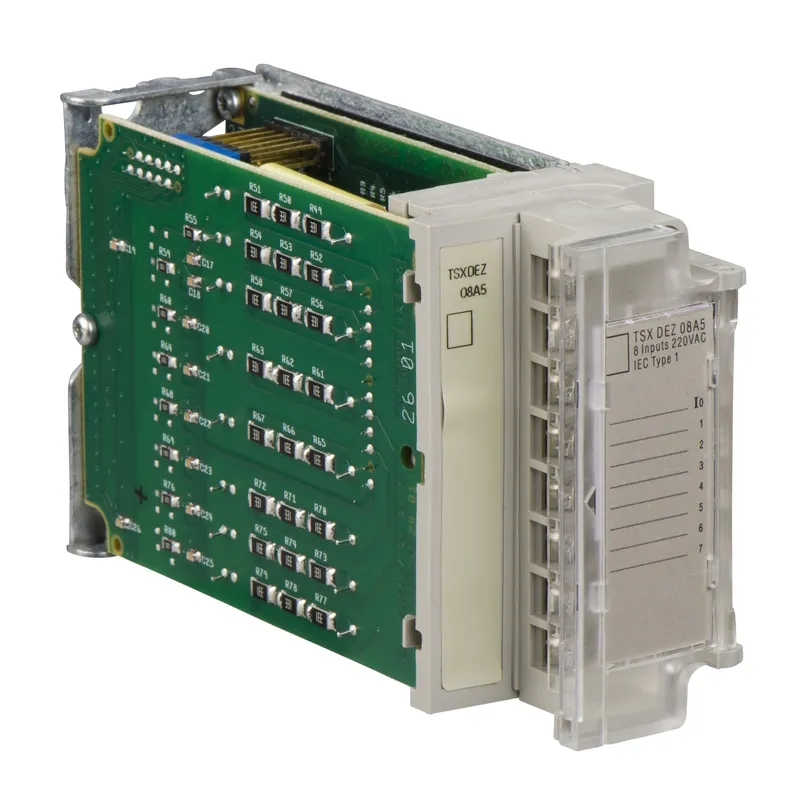

Schneider Electric TSXDEZ08A5

TSX Micro - 8 Discret Input AC

MPN: TSXDEZ08A5
EAN: 3389110759655
Category: Modicon TSX Micro

Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original TSXDEZ08A5 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TSXDEZ08A5?

Schneider Electric TSXDEZ08A5 — TSX Micro - 8 Discret Input AC (Modicon TSX Micro). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon TSX Micro automation platform
Product or component type	Discrete input module
Discrete input number	8 screw terminal block
Discrete input voltage	200...240 V AC; 170...264 V
Discrete input frequency	47...63 Hz
Discrete input current	10 mA at 50 Hz; 12 mA at 60 Hz
Input voltage limits	>= 120 V at state 1; < 40 V at state 0
Current state 0 guaranteed	<= 5 mA
Current state 1 guaranteed	>= 6 mA
Response time	11...18 ms at state 0 to state 1 at 50 Hz; 9...16 ms at state 0 to state 1 at 60 Hz; 11...24 ms at state 1 to state 0 at 50 Hz; 10...22 ms at state 1 to state 0 at 60 Hz

Complementary

Standards	IEC 1131-2 Type 1
Input compatibility	2-wire proximity sensor
Discrete input type	Capacitive
Current consumption	20 mA
Power dissipation in W	1.4 W
Isolation voltage	1500 V AC 1 s

Environment

Net weight

0.23 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet TSXDEZ08A5PDF

TSXDEZ08A5: frequently asked questions

Can I still buy the TSXDEZ08A5 now that it is discontinued?

Yes. Schneider Electric has discontinued the TSXDEZ08A5, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can TSXDEZ08A5 be shipped?

TSXDEZ08A5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXDEZ08A5 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXDEZ08A5 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXDEZ08A5, subject to availability and destination.
