Schneider Electric TSXDEZ08A4 – TSX Micro - 8 Discret Input AC
Discontinued by Schneider Electric — we can still source the original TSXDEZ08A4 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon TSX Micro |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| UPC / EAN | 3389110540413 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TSXDEZ08A4 now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXDEZ08A4, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TSXDEZ08A4 be shipped?
TSXDEZ08A4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXDEZ08A4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXDEZ08A4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXDEZ08A4, subject to availability and destination.
Schneider Electric TSXDEZ08A4 — TSX Micro - 8 Discret Input AC (Modicon TSX Micro). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete input module |
| Discrete input number | 8 screw terminal block |
| Discrete input voltage | 100...120 V AC; 85...132 V |
| Discrete input frequency | 47...63 Hz |
| Discrete input current | 11 mA at 50 Hz; 13 mA at 60 Hz |
| Input voltage limits | >= 74 V at state 1; < 20 V at state 0 |
| Current state 0 guaranteed | <= 4 mA |
| Current state 1 guaranteed | >= 6 mA |
| Response time | 11...18 ms at state 0 to state 1 at 50 Hz; 9...16 ms at state 0 to state 1 at 60 Hz; 11...24 ms at state 1 to state 0 at 50 Hz; 10...22 ms at state 1 to state 0 at 60 Hz |
Complementary
| Standards | IEC 1131-2 Type 2 |
| Input compatibility | 2-wire proximity sensor |
| Discrete input type | Capacitive |
| Current consumption | 20 mA |
| Power dissipation in W | 1.7 W |
| Isolation voltage | 1500 V AC 1 s |
Environment
| Net weight | 0.23 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet TSXDEZ08A4 |
More Schneider Electric parts

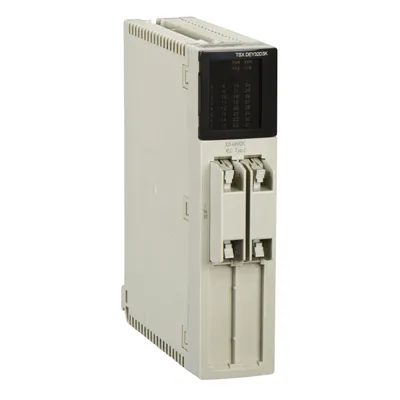

Available on requestdiscrete input module Modicon Premium - 32 I 48 V DC
Available on requestdiscrete input module -32 current sink isolated - 48 V DC - 7 mA
Available on requestdiscrete input module Modicon Premium - 64 I 24 V DC
Available on requestdiscrete input module -64 current sink isolated - 24 V DC - 3.5 mA

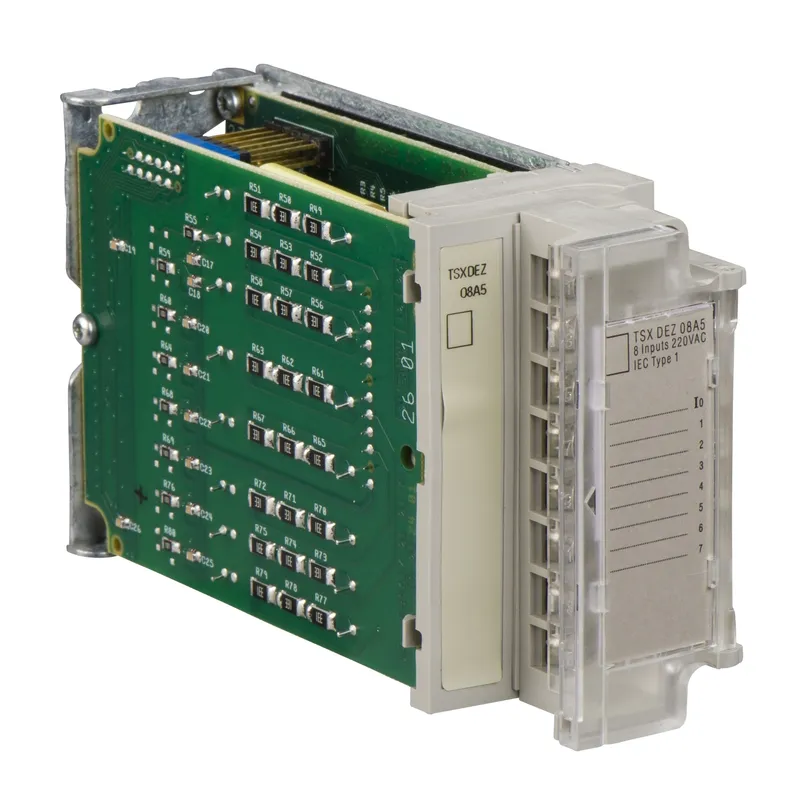

Available on requestTSX Micro - 8 Discret Input AC
