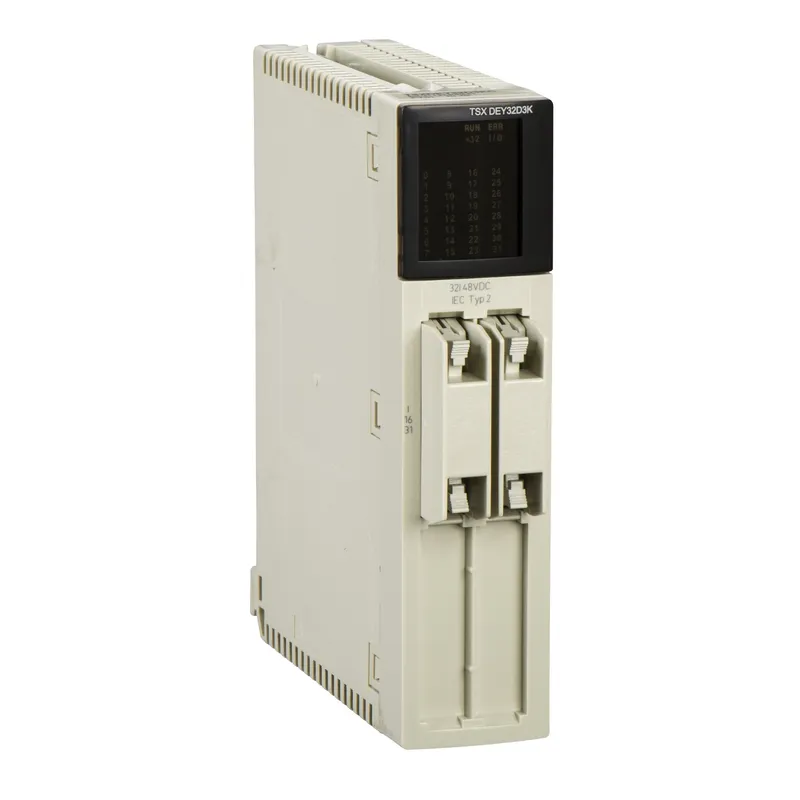

Schneider Electric TSXDEY32D3KC – discrete input module -32 current sink isolated - 48 V DC - 7 mA

Name: Schneider Electric TSXDEY32D3KC – discrete input module -32 current sink isolated - 48 V DC - 7 mA
Brand: Schneider Electric
SKU: TSXDEY32D3KC

MPN: TSXDEY32D3KC · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original TSXDEY32D3KC (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Premium
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3595863936810
Recommended replacement	BMXDDI1603H
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the TSXDEY32D3KC now that it is discontinued?

Yes. Schneider Electric has discontinued the TSXDEY32D3KC, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXDDI1603H as its successor — we can quote both.

When can TSXDEY32D3KC be shipped?

TSXDEY32D3KC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXDEY32D3KC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXDEY32D3KC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXDEY32D3KC, subject to availability and destination.

Schneider Electric TSXDEY32D3KC — discrete input module -32 current sink isolated - 48 V DC - 7 mA (Modicon Premium). Discontinued by Schneider Electric; the manufacturer's successor is BMXDDI1603H. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Premium Automation platform
Product or component type	Discrete input module
Discrete input number	32 current sink isolated conforming to EN/IEC 61131-2 type 2
Discrete input voltage	48 V DC positive
Sensor power supply	38…60 V
Input compatibility	With 2-wire/3-wire proximity sensors conforming to EN/IEC 60947-5-2
Discrete input current	7 mA

Complementary

Voltage state 1 guaranteed	>= 30 V
Current state 1 guaranteed	>= 6.5 mA
Voltage state 0 guaranteed	<= 10 V
Current state 0 guaranteed	<= 2 mA
Input impedance	4000 Ohm at state 1
Response time	4 ms; <= 7 ms
isalotion resistance	< 10 MOhm 500 V DC
Power dissipation	(2 W + 0.1 W x No of channels used)
Electrical connection	HE-10 connector
Marking	CE
Current consumption	140 mA at 5 V DC; 275 mA at 24 V DC
Module format	Standard
Net weight	0.31 kg

Environment

Dielectric strength	1500 V AC at 50/60 Hz
Standards	CSA C22.2 No 213 Class I Division 2 Group B; 93/68/EEC; 89/336/EEC; CSA C22.2 No 142; EN/IEC 61131-2; UL 508; CSA C22.2 No 213 Class I Division 2 Group C; 73/23/EEC; 92/31/EEC; CSA C22.2 No 213 Class I Division 2 Group D; CSA C22.2 No 213 Class I Division 2 Group A; IEC 60664
Product certifications	LR; ABS; GL; DNV; RMRS; RINA; BV
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation for operation; 5…95 % without condensation for storage
Operating altitude	0...2000 m
Protective treatment	TC; Conformal coating Humiseal 1A33
IP degree of protection	IP20
Pollution degree	2
