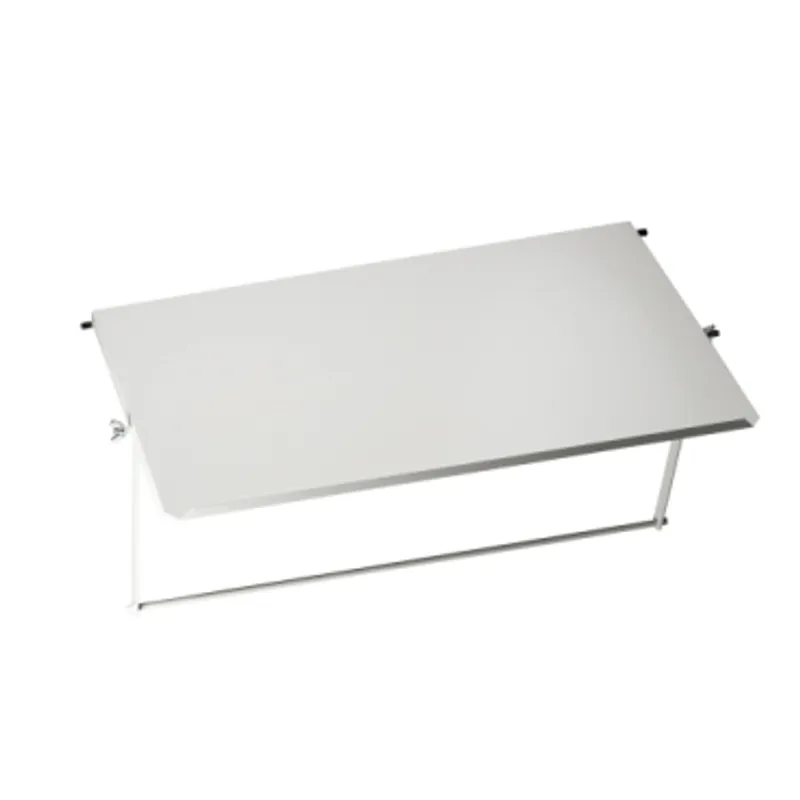

Folding support tray - 500 mm enclosure - 30 kg load
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2.92 kg |
Shipping & availability
When can NSYSDT5 be shipped?
NSYSDT5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSDT5 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSDT5 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSDT5, subject to availability and destination.
Folding support tray for Spacial enclosures. Enclosure dimensions is W is500 mm. 30 kg/m² max load. Mounting on door reinforcement frame/door cross rails for 1000 mm wide enclosures. Compatible is Spacial SF, SM, SFX, SMX, S3D, CRN. Adjustable in height, steps of 25 mm. Steel body, epoxy-polyester powder finish. Operating Angle is 45°, 60°, 75°, 90°.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Folding support tray |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - W: 500 mm |
| Mounting location | On door reinforcement frame, On door cross rails for 1000 mm wide enclosures |
| Mounting support | Cross rails |
| Range compatibility | PanelSeT SF, SM, SFX, SMX, S3D, CRN enclosures |
| Device composition | Fixing elements, 1 x tray |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By fixing element |
| Adjustment | Adjustable in height, steps of 25 mm |
| Operating angle | 45 °, 60 °, 75 °, 90 ° |
| Maximum load | 30 kg/m² |
| Height | 50 mm |
| Width | Nominal: 325 mm |
| Depth | 350 mm |
| thickness | 1.5 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 36.000 cm |
| Package 1 Length | 40.500 cm |
| Package 1 Weight | 2.916 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 63.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 185.200 kg |
| Warranty | 18 months |
