Schneider Electric NSYSFBK19

Coupling kit for enclosures equipped with swinging 19" rack, PanelSeT SFN, PanelSeT SF, Set of 1

MPN
NSYSFBK19
EAN
3606485131818
Category
PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSFBK19?

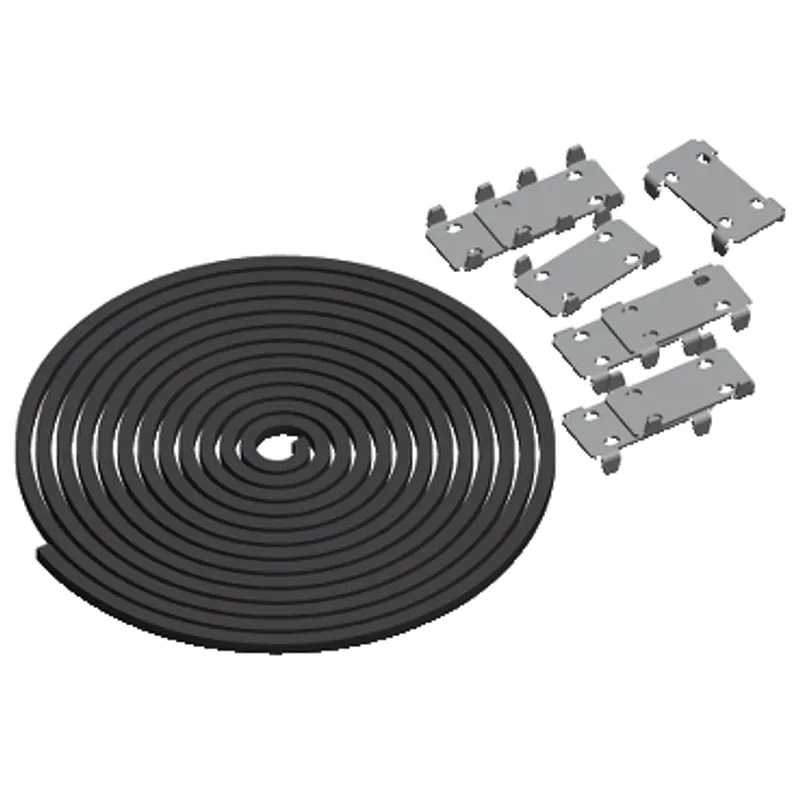

This is a coupling kit system suitable for PrsimaSeT, PanelSeT SFN and PanelSeT SF electrical enclosures equipped with swinging 19” rack. It is designed to form side-by-side or back-to-back combintations. The kit contains 8 flat connectors, sealing gasket and the fixing elements. The sealing gasket is made of EPDM and the flat connectors are made of steel. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The IP degree of protection is 55.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryCoupling accessory
Product or component typeCoupling kit
AnwendungPrisma application, Multi-purpose
Mounting locationSide coupling of 2 enclosures, Depthwise coupling of 2 enclosures
Range compatibilityPrisma PH suitable enclosure, PanelSeT SFX suitable enclosure, Prisma Prisma PH, PanelSeT SFM
Device composition8 flat connector, fixing elements, sealing gasket
Quantity per setSet of 1
MaterialSealing gasket: EPDM, Flat connector: steel
Surface finishZinc coated
Fixing modeBy screws - screw type M6 self tapping
Height80 mm
Width345 mm
Depth335 mm
IP degree of protectionIP55
Mounting diameter0 mm

Packaging

Package 11 PCE, 34.500 cm × 33.500 cm × 8.000 cm (L × W × H), 1.416 kg
Package 2125 P12, 120.000 cm × 80.000 cm × 149.000 cm (L × W × H), 188.250 kg
