Schneider Electric NSYSDR80A

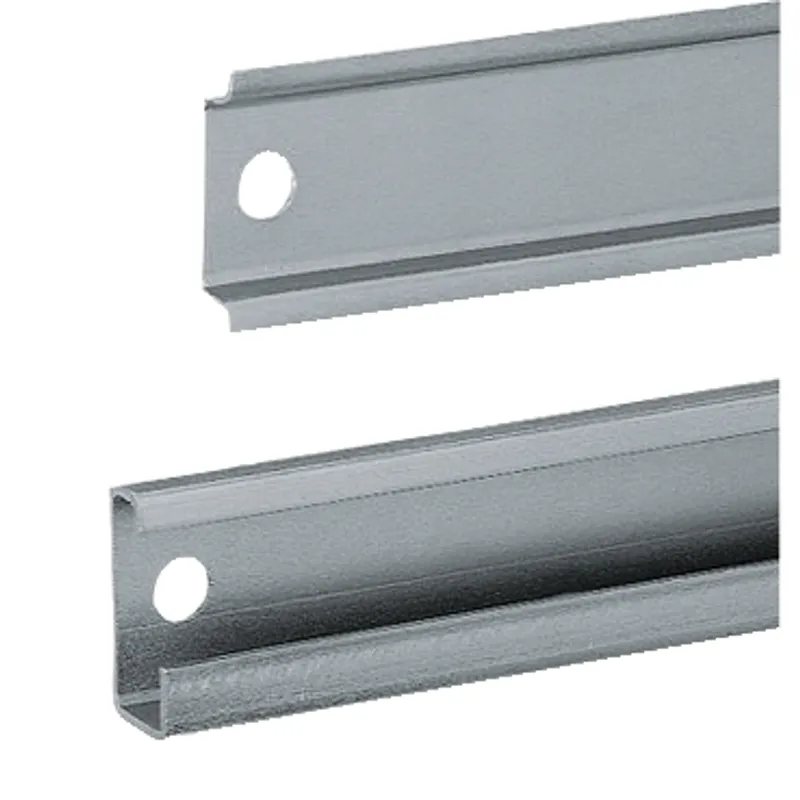

One symmetric mounting rail 35x15 L800mm type A Supply: 20

MPN
NSYSDR80A
EAN
3606480184390
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSDR80A?

Set of 20 symmetrical DIN rails for equipment to be used in PanelSeT SF, PanelSeT SM, PanelSeT SFX, PanelSeT SMX and PanelSeT SD enclosures The rail is made from zinc coated 1,5mm zinc coated steel The nominal width is 35mm The nominal height is 15mm The product nominal length is 800mm and real length is 750mm Fixed with a pitch of 25mm

Specifications

Specifications

AnwendungMulti-purpose
RangePanelSeT
Product or component typeRail
Accessory / separate part categoryMounting accessory
Type of railSymmetrical DIN
Enclosure nominal dimensions-
Range compatibilityPanelSeT SF, PanelSeT SM, PanelSeT SFX, PanelSeT SMX, PanelSeT SD
Device compositionFixing elements, 1 rail
Quantity per setSet of 20
MaterialZinc coated steel
Surface finishZinc coated
Fixing modeBy fixing element - structure of enclosure location
AdjustmentPitch 25 mm, Continuous adjustment
LengthNominal: 800 mm, Real: 750 mm
HeightNominal: 15 mm
WidthNominal: 35 mm
thickness1.5 mm

Packaging

Package 11 PCE, 74.5 cm × 3.5 cm × 1.5 cm (L × W × H), 426.0 g

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYSDR80A: frequently asked questions

When can NSYSDR80A be shipped?

NSYSDR80A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSDR80A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSDR80A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSDR80A, subject to availability and destination.
