Schneider Electric NSYSDR50A

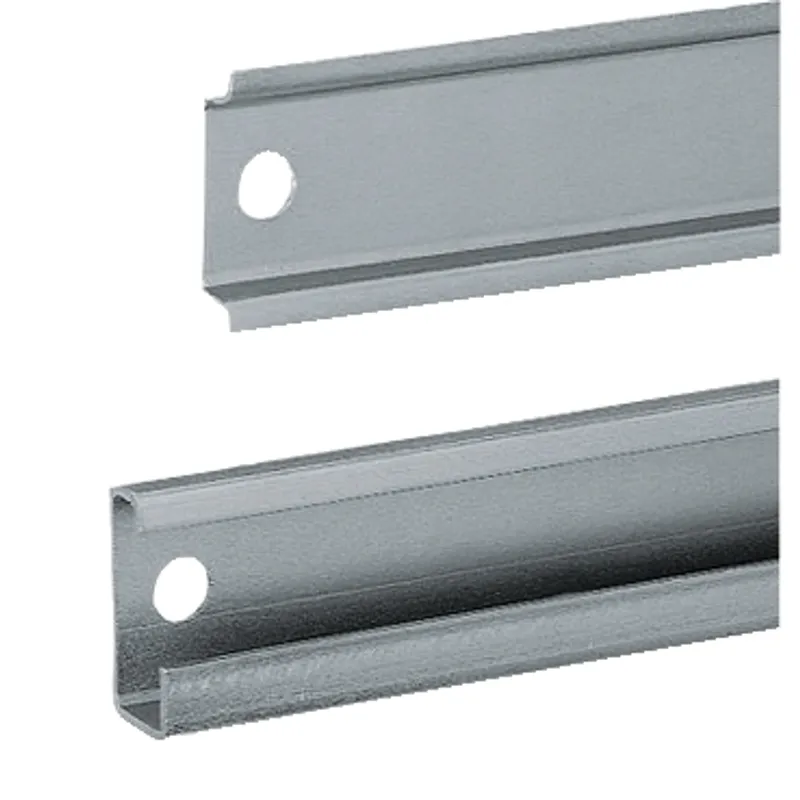

One symmetric mounting rail 35x15 L500mm type A - Wall mounting - Supply: 20

MPN
NSYSDR50A
EAN
3606480184376
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSDR50A?

Set of 20 symmetrical DIN rails for equipment to be used in PanelSeT CRN, PanelSeT S3D, PanelSeT S3X and PanelSeT PLM enclosures The rail is made from zinc coated 1,5mm zinc coated steel The nominal width is 35mm The nominal height is 15mm The product nominal length is 500mm and real length is 450mm Fixed with a pitch of 25mm

Specifications

Specifications

AnwendungMulti-purpose
RangePanelSeT
Product or component typeRail
Accessory / separate part categoryMounting accessory
Type of railSymmetrical DIN
Enclosure nominal dimensions-
Range compatibilityPanelSeT CRN, PanelSeT S3D, PanelSeT PLM
Device compositionFixing elements, 1 rail
Quantity per setSet of 20
MaterialZinc coated steel
Surface finishZinc coated
Fixing modeBy fixing element - structure of enclosure location
AdjustmentContinuous adjustment, Pitch 25 mm
LengthNominal: 500 mm, Real: 450 mm
HeightNominal: 15 mm
WidthNominal: 35 mm
thickness1.5 mm

Packaging

Package 11 PCE, 44.5 cm × 3.5 cm × 1.5 cm (L × W × H), 318 g

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYSDR50A: frequently asked questions

When can NSYSDR50A be shipped?

NSYSDR50A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSDR50A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSDR50A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSDR50A, subject to availability and destination.
