Schneider Electric NSYSFBK

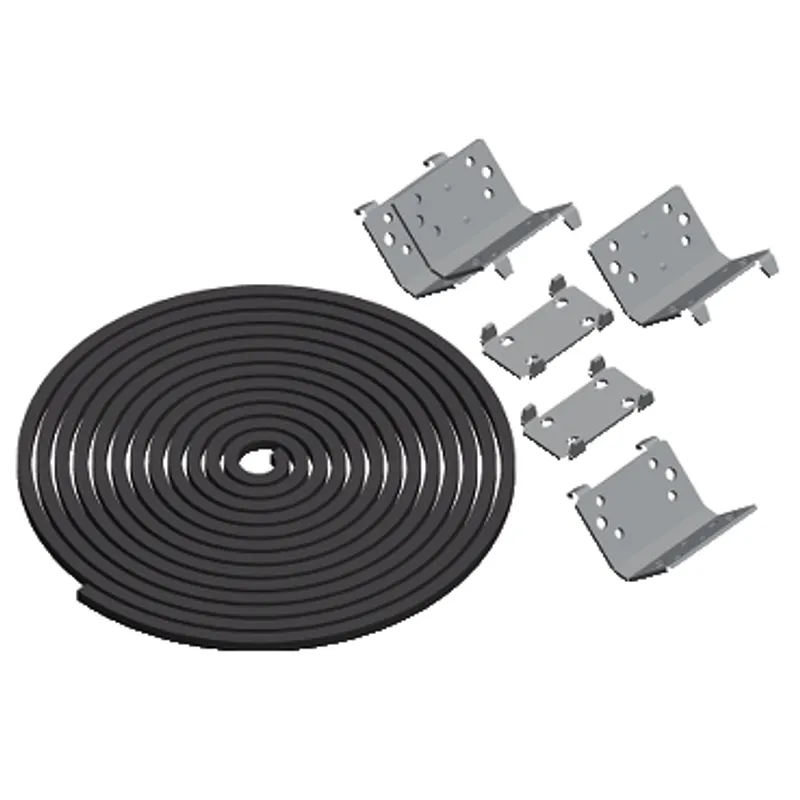

Standard coupling kit, PanelSeT SFN, PanelSeT SF, set of 4 brackets, 2 connectors, sealing gasket and fixing elements
- MPN
- NSYSFBK
- EAN
- 3606485131825
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSFBK?
This is a coupling kit for PanelSeT SFN and PanelSeT SF electrical enclosures. It is designed for joining enclosures side-to-side or depth wide by screws of type M6 self-tapping. The kit contains 2 flat connectors, 4 brackets, fixing elements and the sealing gasket. The sealing gasket is made of EPDM and the brackets and flat connectors are made of steel. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The ingress protection rating is IP55.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Coupling accessory |
| Product or component type | Coupling kit |
| Anwendung | Multi-purpose |
| Mounting location | Side coupling of 2 enclosures, Depthwise coupling of 2 enclosures |
| Range compatibility | PanelSeT SF suitable enclosure |
| Device composition | 2 flat connector, 4 bracket, fixing elements, sealing gasket |
| Quantity per set | Set of 1 |
| Material | Sealing gasket: EPDM, Bracket: steel, Flat connector: steel |
| Surface finish | Zinc coated |
| Fixing mode | By screws - screw type M6 self tapping |
| Height | 65 mm |
| Width | 340 mm |
| Depth | 365 mm |
| IP degree of protection | IP55 |
| Mounting diameter | 0 mm |
Packaging
| Package 1 | 1 PCE, 36.500 cm × 34.000 cm × 6.500 cm (L × W × H), 1.664 kg |
| Package 2 | 100 P12, 120.000 cm × 80.000 cm × 116.000 cm (L × W × H), 187.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSFBK: frequently asked questions
When can NSYSFBK be shipped?
NSYSFBK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSFBK in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSFBK and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFBK, subject to availability and destination.
