Schneider Electric NSYSDT8

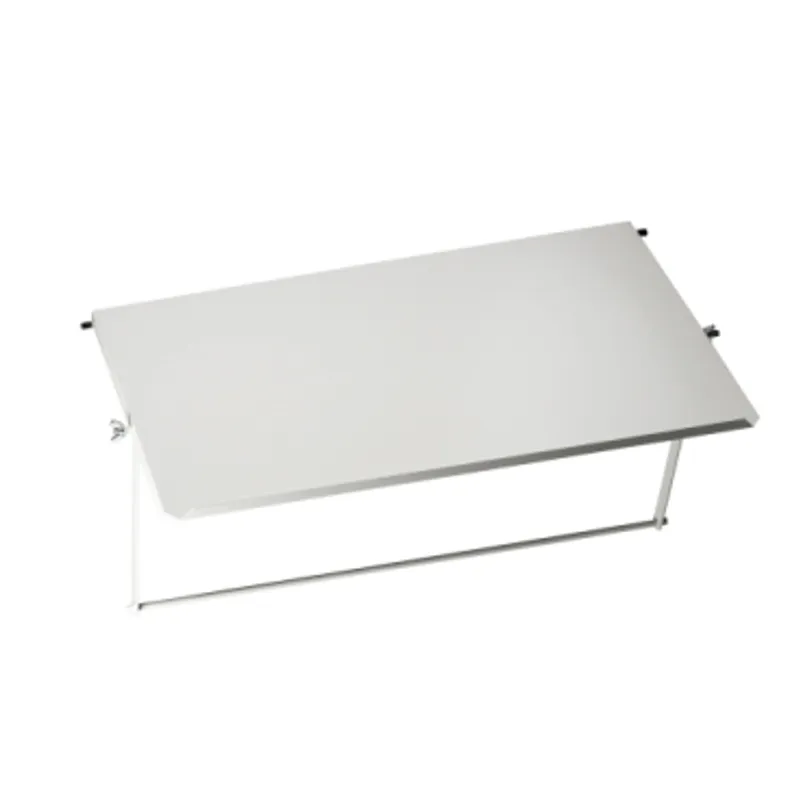

Folding support tray - 800 mm enclosure - 30 kg load
- MPN
- NSYSDT8
- EAN
- 3606485131511
- Category
- PanelSeT SM
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSDT8?
Folding support tray for PanelSeT SFN and PanelSeT SM electrical enclosures. The nominal width of the tray is 625 mm. This adjustable horizontal support can be used for laptop computers, documents or any other element. To be install on the door cross rails and allows 4 positions in angles of 45°, 60°, 75° and 90°. It alllows a maximum load of 30 kg. It is made of steel and has a epoxy plyester powder finish with RAL 7035 grey color.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Folding support tray |
| Application | Door accessories |
| Nominal dimensions of the housing | - |
| Mounting location | Door cross rail, On door reinforcement frame |
| Mounting support | Direct mounting |
| Range compatibility | PanelSeT SF, SM, SFX and SMX enclosures |
| Device composition | 1 x fixing element, 1 x folding support tray |
| Quantity per set | Set of 1 |
| Material | Door: steel |
| Colour | Door: grey (RAL 7035) |
| Surface finish | Painted |
| Fixing mode | Direct fixing - door location |
| Adjustment | Adjustable in height, steps of 25 mm for door |
| Operating angle | 60 °, 45 °, 90 °, 75 ° |
| Maximum load | 30 kg |
| Width | Nominal: 325 mm |
| Depth | 350 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 66.500 cm × 37.000 cm × 4.500 cm (L × W × H), 4.422 kg |
| Package 2 | 80 PAM, 120.000 cm × 100.000 cm × 90.000 cm (L × W × H), 368.000 kg |
