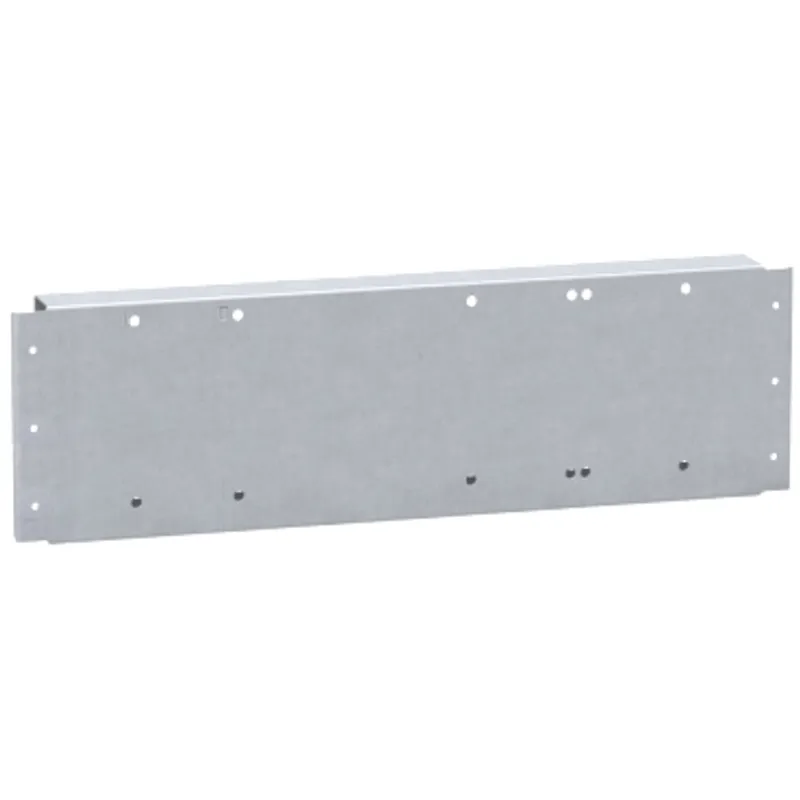

Schneider Electric NSYFXMNW80W

Withdrawable suppport for Masterpact MTZ2 & NW, PanelSeT SFN, PanelSeT SF, galvanized steel, W800

MPN
NSYFXMNW80W
EAN
3606489421380
Category
PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYFXMNW80W?

Support for withdrawable MasterPact MTZ1 and NW in PanelSeT SFN electrical enclosures with nominal width of 800 mm. It secures and facilitates the positioning of MasterPacT in the switchboard, minimizing distortion and reducing installation time. The plate is made of galvanized steel. The set includes 1 support and fixing elements.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryMounting accessory
Product or component typeMounting plate
For enclosure nominal dimensions- W: 800 mm
Installed deviceWithdrawable NW08...32 for Masterpact (3P or 4P), withdrawable MTZ2 08...32 for Masterpact (3P or 4P)
Mounting locationOn universal cross railwidth90 mm), On quick cross railwidth90 mm)
Mounting plate descriptionPre-punched
Range compatibilityPanelSeT PanelSeT SF
Device composition1 mounting plate, fixing kit (screws, cage nuts…)
Quantity per setSet of 1
MaterialSteel
Fixing modeBy screws - screw type M6 - rail location
Height60 mm
Width771 mm
Depth230 mm
Net weight5.7 kg
CoverageCore product

Packaging

Package 11 PCE, 7.000 cm × 24.500 cm × 78.500 cm (L × W × H), 6.084 kg
Package 220 PAM, 120.000 cm × 100.000 cm × 48.000 cm (L × W × H), 135.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYFXMNW80W: frequently asked questions

When can NSYFXMNW80W be shipped?

NSYFXMNW80W is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYFXMNW80W in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYFXMNW80W and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYFXMNW80W, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYFXMNT60F – Fixed support for Masterpact MTZ1 & NT, PanelSeT SFN, PanelSeT SF, galvanized steel, W600
Schneider Electric
NSYFXMNT60F

Fixed support for Masterpact MTZ1 & NT, PanelSeT SFN, PanelSeT SF, galvanized steel, W600

Schneider Electric NSYFXMNT80F – Fixed support for Masterpact MTZ1 & NT, PanelSeT SFN, PanelSeT SF, galvanized steel, W800
Schneider Electric
NSYFXMNT80F

Fixed support for Masterpact MTZ1 & NT, PanelSeT SFN, PanelSeT SF, galvanized steel, W800

Schneider Electric NSYFXMNT80W – Withdrawable support for Masterpact MTZ1 & NT, PanelSeT SFN, PanelSeT SF, galvanized steel, W800
Schneider Electric
NSYFXMNT80W

Withdrawable support for Masterpact MTZ1 & NT, PanelSeT SFN, PanelSeT SF, galvanized steel, W800

Schneider Electric NSYFXMNW80F – Fixed support for Masterpact MTZ2 & NW, PanelSeT SFN, PanelSeT SF, galvanized steel, W800
Schneider Electric
NSYFXMNW80F

Fixed support for Masterpact MTZ2 & NW, PanelSeT SFN, PanelSeT SF, galvanized steel, W800

Schneider Electric NSYFXMNWT60FW – Withdrawable support Masterpact MTZ1 & NT, Fixed/Withdrawable suppport MTZ2 & NW, PanelSeT SFN, PanelSeT SF, W600
Schneider Electric
NSYFXMNWT60FW

Withdrawable support Masterpact MTZ1 & NT, Fixed/Withdrawable suppport MTZ2 & NW, PanelSeT SFN, PanelSeT SF, W600

Schneider Electric NSYFXT6040 – Fixed tray, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600 D400mm, steel
Schneider Electric
NSYFXT6040

Fixed tray, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600 D400mm, steel

Schneider Electric NSYFXT6050 – Fixed tray, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600 D500mm, steel
Schneider Electric
NSYFXT6050

Fixed tray, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600 D500mm, steel

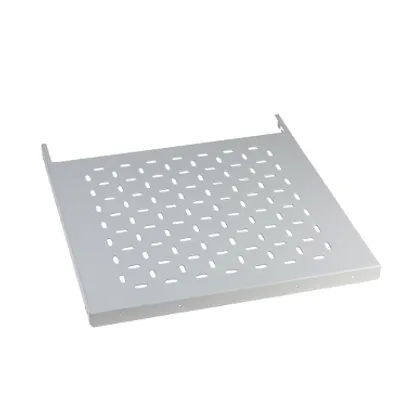

Schneider Electric NSYFXT6060 – Fixed tray, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600 D600mm, steel
