Schneider Electric NSYFXT6050
Fixed tray, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600 D500mm, steel
- MPN
- NSYFXT6050
- EAN
- 3606480064500
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

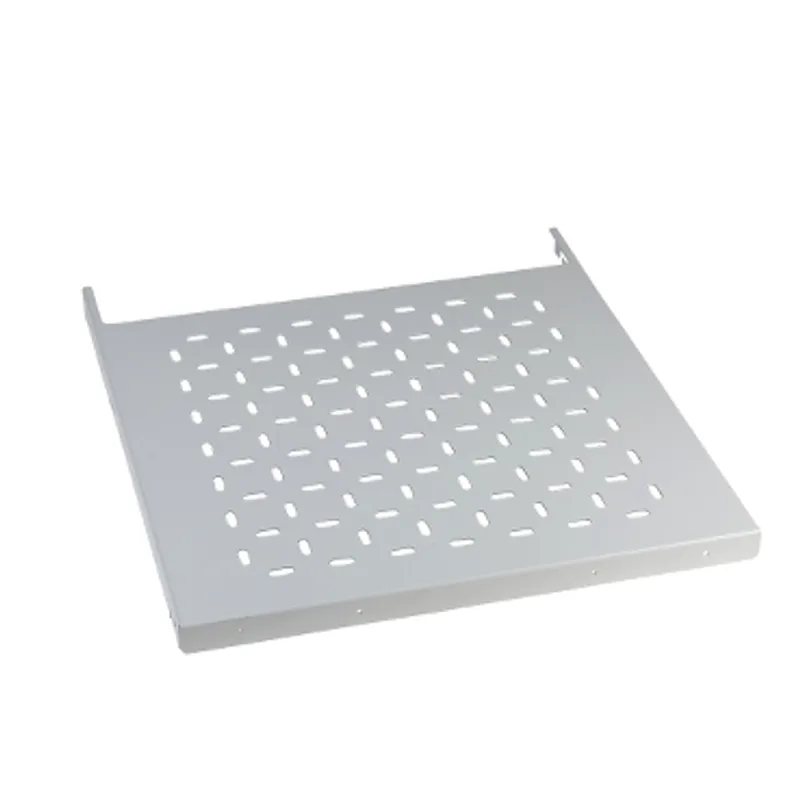

What is the Schneider Electric NSYFXT6050?
This is a fixed tray for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It is made of steel. The product is to be fixed on direct to the structure and 40 mm cross rails. The kit consists of 1 fixed tray and fixing elements. The tray is to be used with enclosures of nonimal width and depth of 600 and 500 mm respectively. Adjustable in depth every 25 mm. Maximum load is 150 kg evenly distributed. Anti-corrosion protection is ensured by epoxy-polyester powder coating. .
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Installation accessory |
| Product or component type | Fixed tray |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - W: 600 mm D: 500 mm |
| Mounting support | Direct to the structure, 40 mm cross rails |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | 1 fixed tray, fixing elements |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Adjustment | Adjustable in depth every 25 mm |
| Maximum load | 150 kg evenly distributed |
| Height | 30 mm |
| Width | 482 mm |
| Depth | 390 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 3.000 cm × 48.500 cm × 41.000 cm (L × W × H), 2.950 kg |
| Package 2 | 50 P12, 120.000 cm × 80.000 cm × 88.000 cm (L × W × H), 162.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYFXT6050: frequently asked questions
When can NSYFXT6050 be shipped?
NSYFXT6050 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYFXT6050 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYFXT6050 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYFXT6050, subject to availability and destination.
