Schneider Electric NSYFXMNT80F

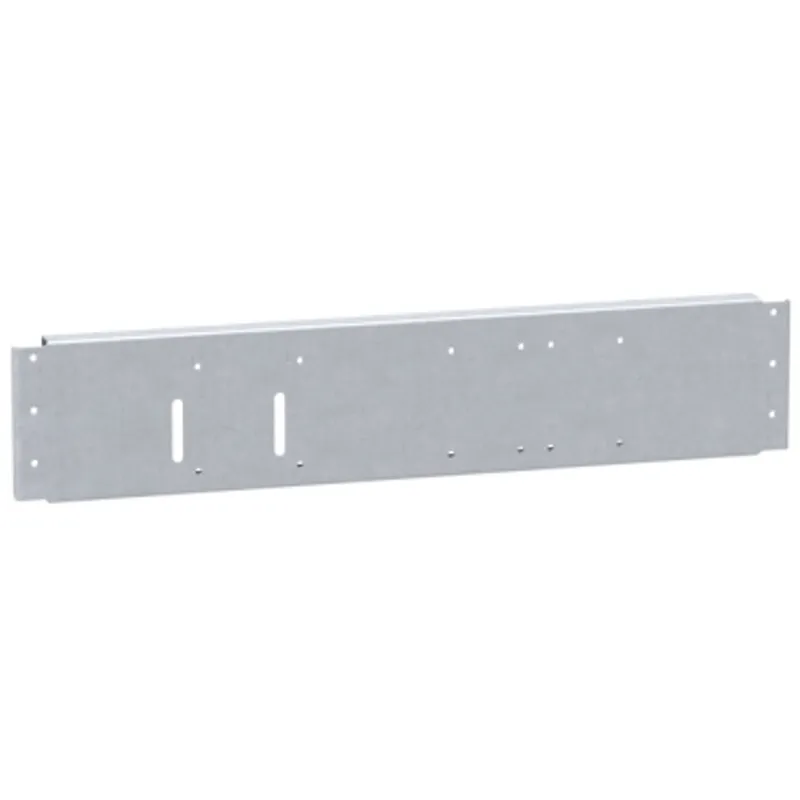

Fixed support for Masterpact MTZ1 & NT, PanelSeT SFN, PanelSeT SF, galvanized steel, W800
- MPN
- NSYFXMNT80F
- EAN
- 3606489421366
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYFXMNT80F?
Support for fixed MasterPact MTZ1 and NT in PanelSeT SFN electrical enclosures with nominal width of 800 mm. It secures and facilitates the positioning of MasterPacT in the switchboard, minimizing distortion and reducing installation time. The plate is made of galvanized steel. The set includes 1 support and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| For enclosure nominal dimensions | - W: 800 mm |
| Installed device | Fixed NW08...32 for Masterpact (3P or 4P), fixed MTZ2 08...32 for Masterpact (3P or 4P) |
| Mounting location | On universal cross railwidth65 mm), On quick cross railwidth65 mm) |
| Mounting plate description | Pre-punched |
| Range compatibility | PanelSeT PanelSeT SF |
| Device composition | 1 mounting plate, fixing kit (screws, cage nuts…) |
| Quantity per set | Set of 1 |
| Material | Steel |
| Fixing mode | By screws - screw type M6 - rail location |
| Height | 30 mm |
| Width | 771 mm |
| Depth | 155 mm |
| Net weight | 3.4 kg |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 5.000 cm × 18.000 cm × 78.000 cm (L × W × H), 3.668 kg |
| Package 2 | 20 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 83.360 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYFXMNT80F: frequently asked questions
When can NSYFXMNT80F be shipped?
NSYFXMNT80F is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYFXMNT80F in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYFXMNT80F and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYFXMNT80F, subject to availability and destination.
