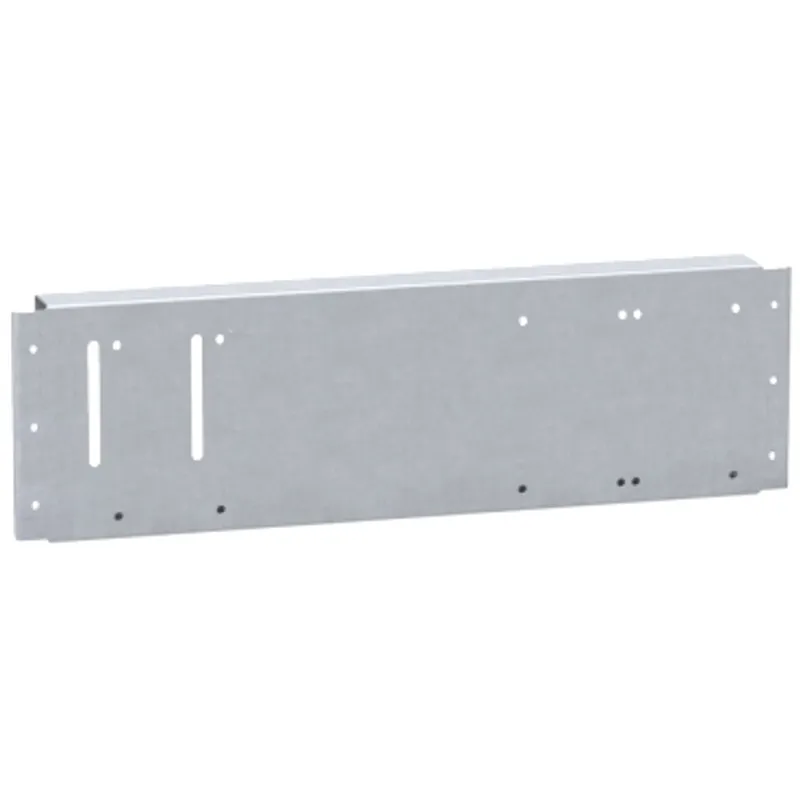

Schneider Electric NSYFXMNW80F
Fixed support for Masterpact MTZ2 & NW, PanelSeT SFN, PanelSeT SF, galvanized steel, W800
- MPN
- NSYFXMNW80F
- EAN
- 3606489421397
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYFXMNW80F?
Support for fixed MasterPact MTZ1 and NW in PanelSeT SFN electrical enclosures with nominal width of 800 mm. It secures and facilitates the positioning of MasterPacT in the switchboard, minimizing distortion and reducing installation time. The plate is made of galvanized steel. The set includes 1 support and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| For enclosure nominal dimensions | - W: 800 mm |
| Installed device | Fixed NW08...32 for Masterpact (3P or 4P), fixed MTZ2 08...32 for Masterpact (3P or 4P) |
| Mounting location | On universal cross railwidth90 mm), On quick cross railwidth90 mm) |
| Mounting plate description | Pre-punched |
| Range compatibility | PanelSeT PanelSeT SF |
| Device composition | 1 mounting plate, fixing kit (screws, cage nuts…) |
| Quantity per set | Set of 1 |
| Material | Steel |
| Fixing mode | By screws - screw type M6 - rail location |
| Height | 60 mm |
| Width | 771 mm |
| Depth | 230 mm |
| Net weight | 5.7 kg |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 7.000 cm × 24.500 cm × 78.500 cm (L × W × H), 6.030 kg |
| Package 2 | 20 P12, 120.000 cm × 80.000 cm × 52.000 cm (L × W × H), 126.920 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYFXMNW80F: frequently asked questions
When can NSYFXMNW80F be shipped?
NSYFXMNW80F is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYFXMNW80F in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYFXMNW80F and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYFXMNW80F, subject to availability and destination.
