Schneider Electric NSYFXMNWT60FW

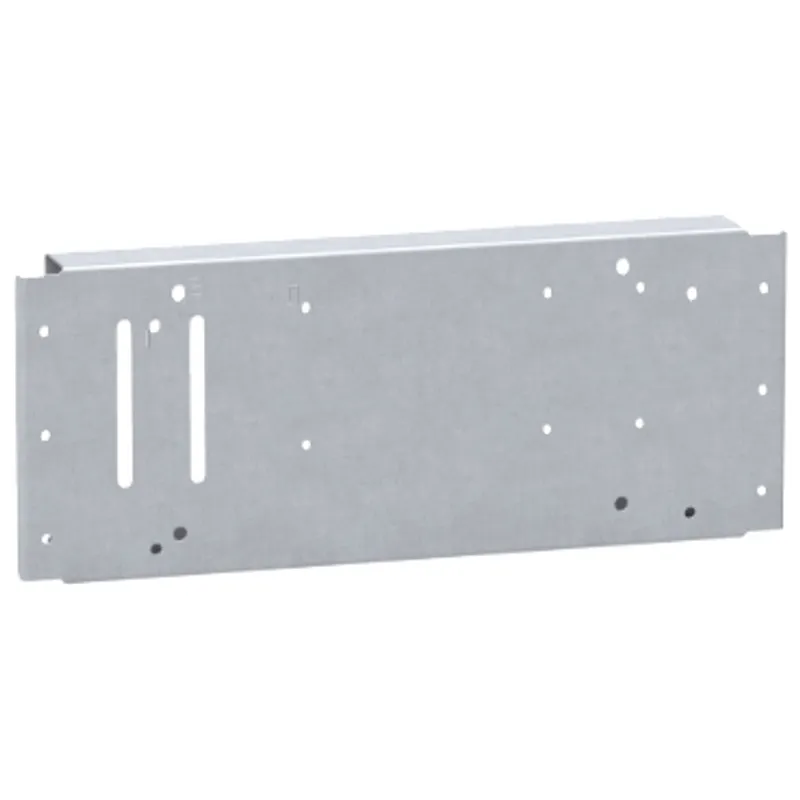

Withdrawable support Masterpact MTZ1 & NT, Fixed/Withdrawable suppport MTZ2 & NW, PanelSeT SFN, PanelSeT SF, W600
- MPN
- NSYFXMNWT60FW
- EAN
- 3606489421342
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYFXMNWT60FW?
Support for fixed and withdrawable MasterPact MTZ1 and NT, and MTZ2 and NW in PanelSeT SFN electrical enclosures with nominal width of 600 mm. It secures and facilitates the positioning of MasterPacT in the switchboard, minimizing distortion and reducing installation time. The plate is made of galvanized steel. The set includes 1 support and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| For enclosure nominal dimensions | - W: 600 mm |
| Installed device | Fixed NW08...32 for Masterpact (3P or 4P), withdrawable NW08...32 for Masterpact (3P or 4P), withdrawable NT06...16 for Masterpact (3P or 4P), fixed MTZ2 08...32 for Masterpact (3P or 4P), withdrawable MTZ2 08...32 for Masterpact (3P or 4P), withdrawable MTZ1 06...16 for Masterpact (3P or 4P) |
| Mounting location | On universal cross railwidth90 mm) for NW08...32 device installation, On quick cross railwidth90 mm) for NW08...32 device installation, On universal cross railwidth65 mm) for NT06...16 device installation, On quick cross railwidth65 mm) for NT06...16 device installation, On universal cross railwidth90 mm) for MTZ2 08...32 device installation, On quick cross railwidth90 mm) for MTZ2 08...32 device installation, On universal cross railwidth65 mm) for MTZ1 06...16 device installation, On quick cross railwidth65 mm) for MTZ1 06...16 device installation |
| Mounting plate description | Pre-punched |
| Range compatibility | PanelSeT PanelSeT SF |
| Device composition | 1 mounting plate, fixing kit (screws, cage nuts…) |
| Quantity per set | Set of 1 |
| Material | Steel |
| Fixing mode | By screws - screw type M6 - rail location |
| Height | 60 mm |
| Width | 571 mm |
| Depth | 230 mm |
| Net weight | 4.1 kg |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 7.500 cm × 24.500 cm × 58.000 cm (L × W × H), 4.452 kg |
| Package 2 | 20 PAM, 120.000 cm × 100.000 cm × 48.000 cm (L × W × H), 102.000 kg |
