Schneider Electric NSYFXMNT60F

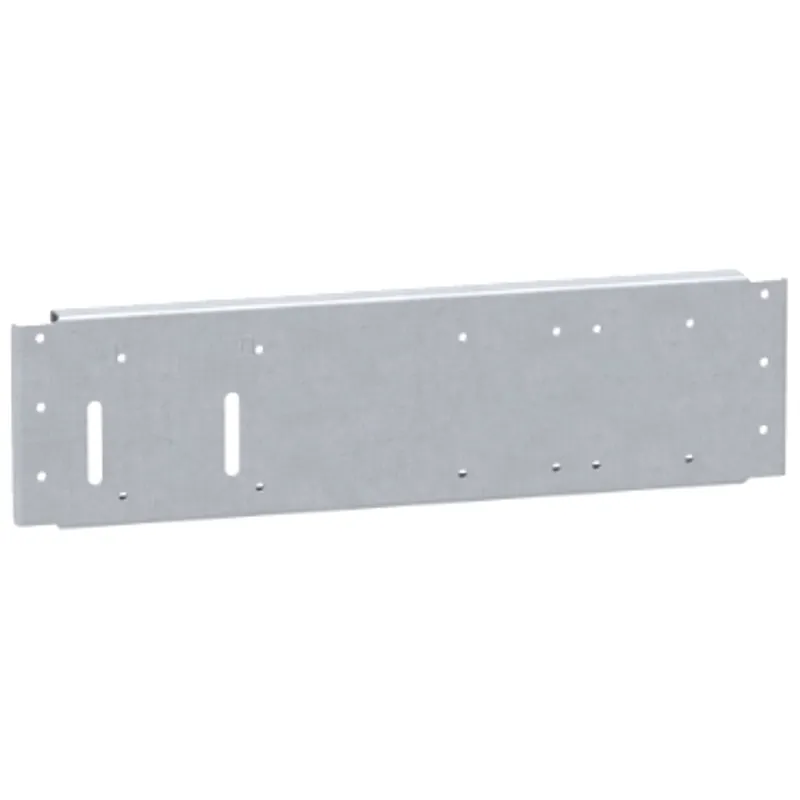

Fixed support for Masterpact MTZ1 & NT, PanelSeT SFN, PanelSeT SF, galvanized steel, W600
- MPN
- NSYFXMNT60F
- EAN
- 3606489421359
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYFXMNT60F?
Support for fixed MasterPact MTZ1 and NT in PanelSeT SFN electrical enclosures with nominal width of 600 mm. It secures and facilitates the positioning of MasterPacT in the switchboard, minimizing distortion and reducing installation time. The plate is made of galvanized steel. The set includes 1 support and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| For enclosure nominal dimensions | - W: 600 mm |
| Installed device | Fixed NT06...16 for Masterpact (3P or 4P), fixed MTZ1 06...16 for Masterpact (3P or 4P) |
| Mounting location | On universal cross railwidth65 mm), On quick cross railwidth65 mm) |
| Mounting plate description | Pre-punched |
| Range compatibility | PanelSeT PanelSeT SF |
| Device composition | 1 mounting plate, fixing kit (screws, cage nuts…) |
| Quantity per set | Set of 1 |
| Material | Steel |
| Fixing mode | By screws - screw type M6 - rail location |
| Height | 30 mm |
| Width | 571 mm |
| Depth | 155 mm |
| Net weight | 2.5 kg |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 5.000 cm × 18.000 cm × 58.000 cm (L × W × H), 2.720 kg |
| Package 2 | 6 PAL, 120.000 cm × 45.000 cm × 29.000 cm (L × W × H), 16.320 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYFXMNT60F: frequently asked questions
When can NSYFXMNT60F be shipped?
NSYFXMNT60F is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYFXMNT60F in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYFXMNT60F and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYFXMNT60F, subject to availability and destination.
