Schneider Electric NSYFXMNT80W

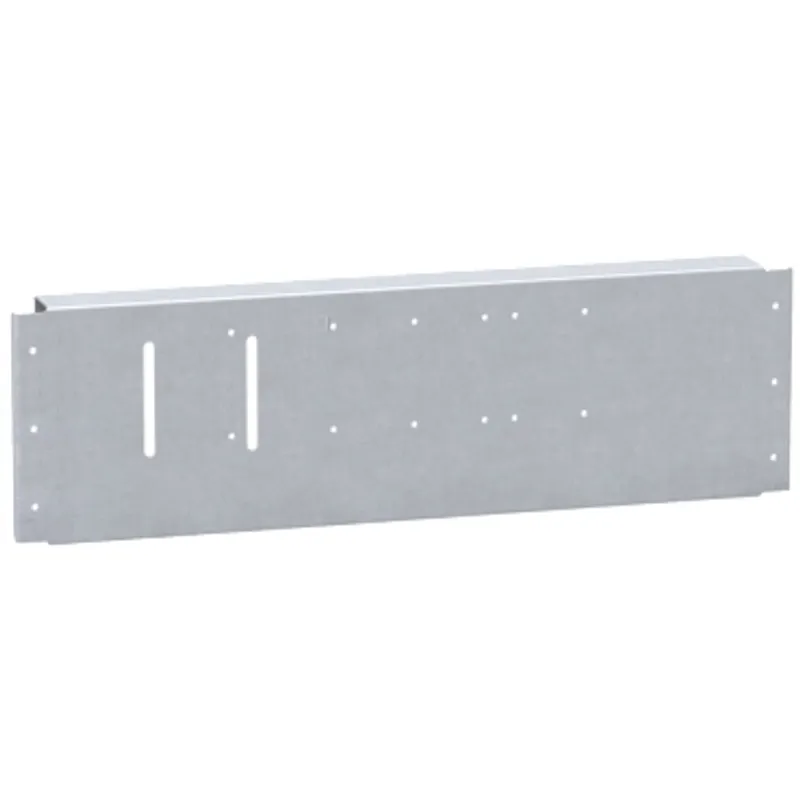

Withdrawable support for Masterpact MTZ1 & NT, PanelSeT SFN, PanelSeT SF, galvanized steel, W800
- MPN
- NSYFXMNT80W
- EAN
- 3606489421373
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYFXMNT80W?
Support for withdrawable MasterPact MTZ1 and NT in PanelSeT SFN electrical enclosures with nominal width of 800 mm. It secures and facilitates the positioning of MasterPacT in the switchboard, minimizing distortion and reducing installation time. The plate is made of galvanized steel. The set includes 1 support and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| For enclosure nominal dimensions | - W: 800 mm |
| Installed device | Withdrawable NT06...16 for Masterpact (3P or 4P), withdrawable MTZ1 06...16 for Masterpact (3P or 4P) |
| Mounting location | On universal cross railwidth65 mm), On quick cross railwidth65 mm) |
| Mounting plate description | Pre-punched |
| Range compatibility | PanelSeT PanelSeT SF |
| Device composition | 1 mounting plate, fixing kit (screws, cage nuts…) |
| Quantity per set | Set of 1 |
| Material | Steel |
| Fixing mode | By screws - screw type M6 - rail location |
| Height | 30 mm |
| Width | 771 mm |
| Depth | 230 mm |
| Net weight | 5.7 kg |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 7.000 cm × 24.500 cm × 78.500 cm (L × W × H), 6.040 kg |
| Package 2 | 20 PAM, 120.000 cm × 100.000 cm × 48.000 cm (L × W × H), 132.800 kg |
