Schneider Electric NSYCRN88300

PanelSeT CRN plain door w/o mount.plate. H800xW800xD300 IP66 IK10 RAL7035..

MPN
NSYCRN88300
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN88300?

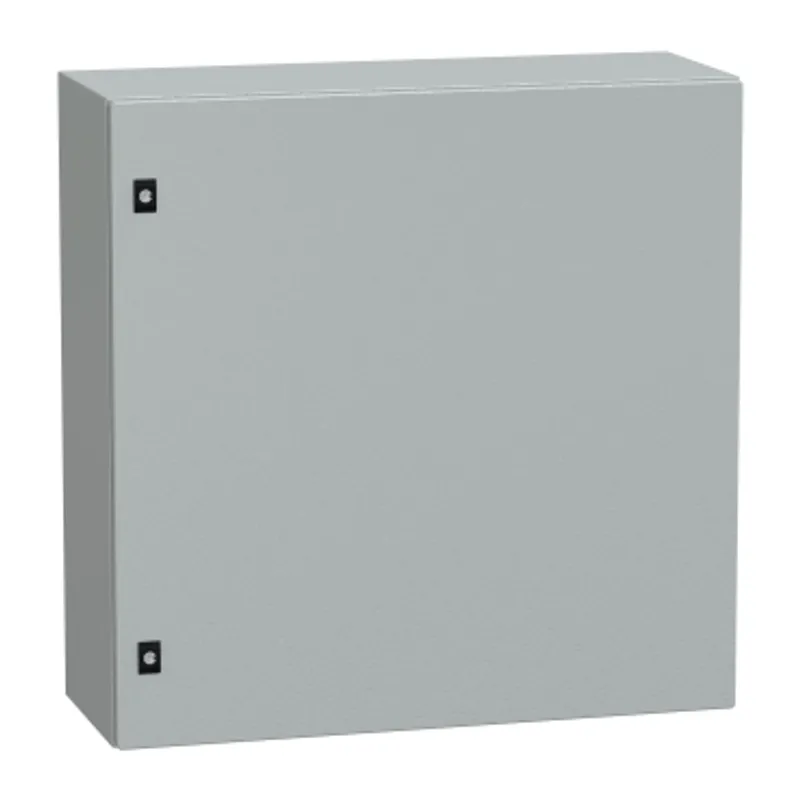

Spacial CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 800mm, 800mm, and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a plain door, a lock, and two cable gland plates (bottom) The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 29,034kg

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height800 mm
Enclosure nominal width800 mm
Enclosure nominal depth300 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 door, 1 lock, 2 cable gland plate: bottom
Door typePlain
Mounting plate descriptionWithout mounting plate
body typeSides made from a single folded section, Back welded with double profile forming a protected sealed area
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsUL, cUL, DNV-GL
Net weight29.034 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 81.500 cm × 81.500 cm × 32.000 cm (L × W × H), 29.000 kg
Package 28 PAM, 120.000 cm × 100.000 cm × 176.000 cm (L × W × H), 245.000 kg
