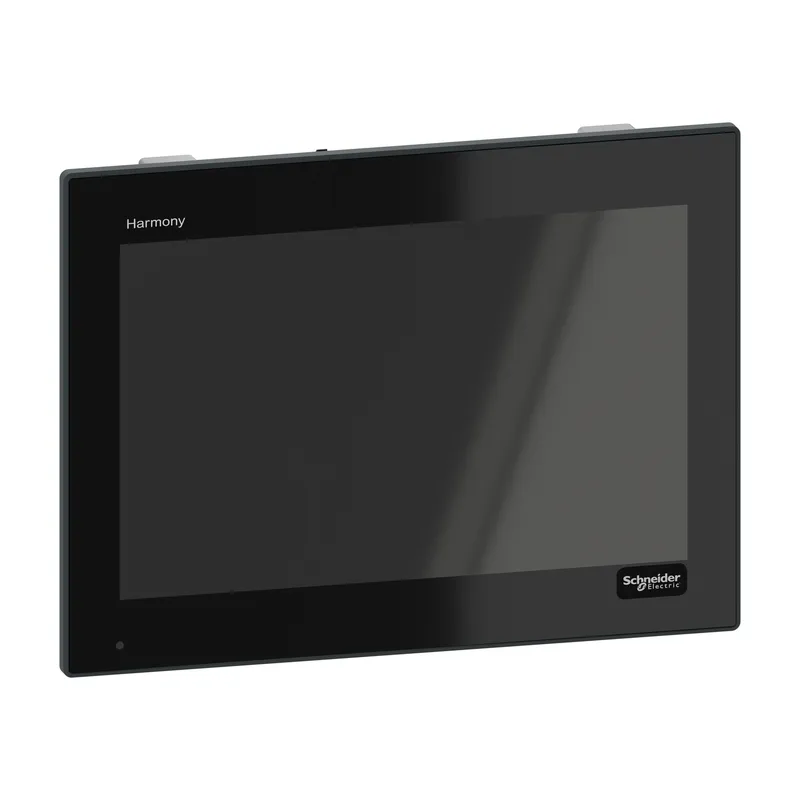

Schneider Electric HMIGT6640WCDW – Harmony Web Panel GTW6 Screen 12.1"W WXGA Touch PCAP 12-24VDC power

Name: Schneider Electric HMIGT6640WCDW – Harmony Web Panel GTW6 Screen 12.1"W WXGA Touch PCAP 12-24VDC power
Brand: Schneider Electric
SKU: HMIGT6640WCDW

MPN: HMIGT6640WCDW · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	HMI & Operator Panels
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3606487846376
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can HMIGT6640WCDW be shipped?

HMIGT6640WCDW is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HMIGT6640WCDW in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HMIGT6640WCDW and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HMIGT6640WCDW, subject to availability and destination.

What is this product? This product is a 12.1" wide Web HMI that offers a larger display for enhanced visualization and control. Built for demanding environments, it combines cutting-edge technology with a modern design to optimize efficiency and operator experience. Select this panel for its high-resolution screen, secure login, HTTPS protection, and rapid updates. It’s engineered for reliability and sustainability, ensuring smooth operations and compliance with industrial standards. What is the product technical and installation information? It features a vivid 1280x800 resolution, capacitive touch, IP66/IP67 front protection, dual Ethernet ports, and 1GB RAM with 4GB of flash storage. Its fast performance and HTML5 compatibility make it ideal for advanced industrial applications. Installation is simple, with panel or VESA mounting options, and a cut-out size of 295 x 217 mm. Remote setup, auto network configuration, and flexible orientation options simplify deployment and reduce downtime for your operations. This offer includes the HMI panel with integrated memory and interfaces. Fully compatible with Schneider Electric EcoStruxure architecture, supporting PLCs, drives, energy monitoring, and building automation systems for complete operational synergy. What is the product range information? Harmony GTW6 range delivers secure, IIoT-ready HMIs with advanced connectivity and durable design. Ideal for industrial, energy, and building sectors, it ensures future-proof solutions with easy integration and superior user experience. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Product or component type

Touch panel screen

Complementary

Display size	12.1 inch
Display type	Colour TFT LCD
Display colour	16 million colours
Display resolution	1280 x 800 pixels WXGA
Touch panel	Multi-touch projected capactive technology (PCT)
Backlight lifespan	50000 hours with white
[Us] rated supply voltage	12...24 V DC
Inrush current	30 A
Input voltage limits	10.8…28.8 V DC
voltage endurance	1000 V AC during 1 min
Local signalling	Status LED green, steady for operating
Memory description	Built in flash memory 4 GB
Processor frequency	1600 MHz
Memory description	Backup memory NVRAM 512 KB
Integrated connection type	2 USB 2.0 port USB type A 2 10/100/1000 BASE-TX; SD card slot
Electrical connection	Cable 2 mm², 14 AWG, max resistance 100 Ohm for functional grounding
Type of cooling	AN (air natural)
Fixing mode	By 4 installation fasteners, mounting on 1.6...5 mm thick panel
Cut-out dimensions	295 x 217 mm panel cut dimension
Height	230.5 mm
Width	308.5 mm
Depth	64 mm
Net weight	3.85 kg

Environment

Standards	EN 61010-2-201
Product certifications	UL
Directives	2014/35/EU - low voltage directive
Ambient air temperature for storage	-20…60 °C
Relative humidity	10…90 % non condensing
Storage Relative Humidity	10…90 % non condensing
Operating altitude	2000 m
IP degree of protection	IP67f (front panel (in enclosure)) conforming to UL 50
Pollution degree	2
Environmental characteristic	Corrosive gas free
Shock resistance	147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Vibration resistance	3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Insulation resistance	> 10 MOhm
Electromagnetic compatibility	Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
