Schneider Electric CCT15940

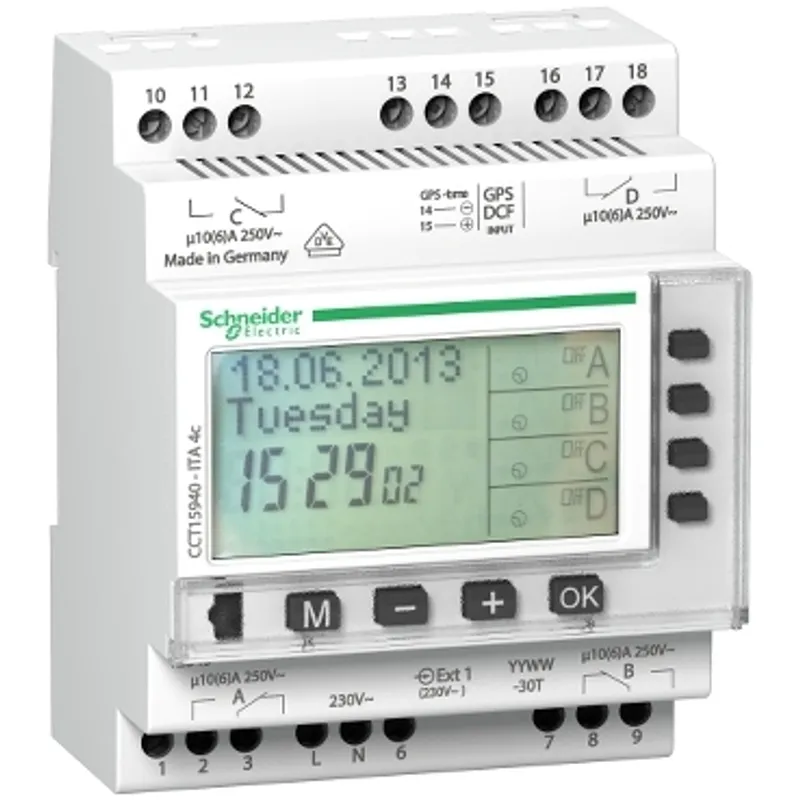

Acti9 - ITA - 4C yearly time switch - 24 hours + 7 days + year
- MPN
- CCT15940
- EAN
- 3606480625169
- Category
- ITM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric CCT15940?
ITA 4c yearly programmable time switch. Weekly or yearly time programming to be distributed over 4 channels. Override control with switch or push-button via external inputs. A memory key and a programming kit can be used to duplicate on another ITA or to save the program created by the user. Voltage rating (Ue): 230 V AC, 50/60 Hz. Consumption 124-3.2 W depending on the switching status). Operating temperature -30°C to +55°C. Width (9 mm modules): 8. Degree of protection: IP20. Output contact rating 250 V: 16 A cos Phi 1. 6 A cos Phi 0.6. LCD liquid crystal display: Back-lit. Number of switching operations: 300. Minimum switching: 1 s. Switching accuracy: Without antenna: ± 0.5 s per day at 20°C. With antenna: 1 s on 1 million years1 s. Number of channels: 4.
Specifications
Specifications
| range of product | Acti9 |
| Product name | Acti9 ITA |
| Device short name | ITA |
| Product or component type | Yearly programmable time switch |
| Device application | Building |
| Battery type | Lithium |
| Number of channels | 4 |
| User language | Hungarian, Norwegian, Spanish, French, Dutch, Italian, German, English, Danish, Portuguese, Swedish, Romanian, Czech, Polish, Finnish |
| Colour tint | White (RAL 9003) |
| Maximum switching current | 10 A - 250 V AC pf = 1, 6 A - 250 V AC pf = 0.6 |
| [Ue] rated operational voltage | 230 V AC at 50/60 Hz |
| Number of inputs | 2 input(s) impulse and maintained |
| Accuracy | +/- 0.5 s/day 20 °C |
| Cycle duration | 24 hours + 7 days + year |
| Maximum number of switchings | 300 |
| Minimum interval duration | 1 s |
| Function available | Cycle programming, Manual or software programming, Pulse programming, External input for override, Time synchronisation via antenna possible, Automatic winter/summer time changeover |
| Display type | Backlit LCD |
| Battery life | 10 year(s) |
| Backup time | 10 years time and program saving |
| Type of setting | PIN code, Absence for holidays function |
| Connections - terminals | Screw terminals |
| Mounting support | DIN rail |
| 9 mm pitches | 8 |
| Width | 71.5 mm |
| Height | 90 mm |
| Depth | 63 mm |
| Function | Pulse programming |
| Absence for holidays | Yes |
| Time changeover | Automatic |
| Updated by | GPS, DCF77 |
| Compatibility code | ITA |
| Market segment | Small commercial |
| Ambient air temperature for operation | -30…55 °C |
| IP degree of protection | IP20 |
Packaging
| Package 1 | 1 PCE, 12.500 cm × 7.800 cm × 6.500 cm (L × W × H), 381.000 g |
| Package 2 | 18 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 7.025 kg |
