Schneider Electric

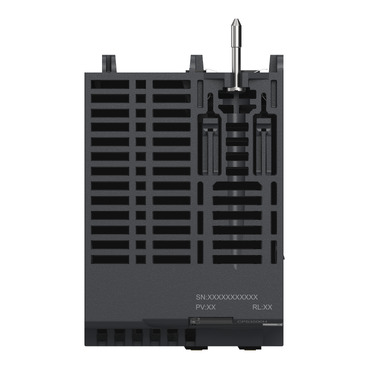

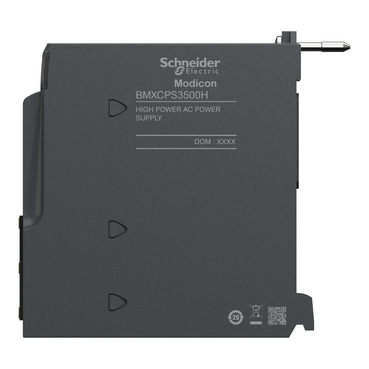

Schneider Electric BMXCPS3500H

Power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment

MPN: BMXCPS3500H
EAN: 3595864029894
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXCPS3500H?

This power supply for severe environments is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This power supply module has a primary voltage of 100V to 240V AC for severe environments. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.36kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. The product must be installed on the rack and fixed with 2 screws. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Specifications

Range of product	Modicon X80
Product or component type	Power supply module
backplane compatibility	Not compatible with BMEXBP..02
Product specific application	For severe environments
Primary voltage	100...240 V
Supply circuit type	AC
Secondary power	15 W 3.3 V DC at 0…60 °C I/O module logic power supply, 31.2 W 24 V DC at 0…60 °C I/O module power supply and processor, 11.3 W 3.3 V DC at -25…70 °C I/O module logic power supply, 23.4 W 24 V DC at -25…70 °C I/O module power supply and processor, 21.6 W 24 V DC at 0…60 °C sensor power supply, 16.2 W 24 V DC at -25…70 °C sensor power supply
Primary voltage limit	85...264 V
Network frequency	50/60 Hz
Network frequency limits	47…63 Hz
Apparent power	0.12 kVA
Input current	0.52 A 240 V, 1.04 A 115 V
Inrush current	30 A 120 V, 60 A 240 V
I²t on activation	1 A².s 120 V, 3 A².s 240 V
It on activation	0.05 A.s 120 V, 0.07 A.s 240 V
MTBF reliability	4300000 H
Protection type	Internal fuse not accessible for primary circuit, Overload protection for secondary circuit, Overvoltage protection for secondary circuit, Short-circuit protection for secondary circuit
Current at secondary voltage	0.9 A 24 V DC sensor power supply, 1.3 A 24 V DC I/O module power supply and processor, 4.5 A 3.3 V DC I/O module logic power supply
Maximum power dissipation in W	8.5 W
Status LED	1 LED (green) rack voltage OK, 1 LED (green) sensor voltage
Control type	RESET push-button cold restart
Electrical connection	1 connector 2 pin(s)alarm relay, 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor
Insulation resistance	>= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
Net weight	0.36 kg
Immunity to microbreaks	1 ms
Dielectric strength	1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor, 2300 V primary/secondary sensor power supply, 1500 V primary/ground, 500 V 24 V sensor output/ground
Vibration resistance	3 gn
Shock resistance	30 gn
IP degree of protection	IP20
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product certifications	CE, UL, CSA, RCM, EAC, Merchant Navy
Standards	IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G
Environmental characteristic	Gas resistant class Gx conforming to ISA S71.04, Gas resistant class 3C4 conforming to IEC 60721-3-3, Dust resistant class 3S4 conforming to IEC 60721-3-3, Sand resistant class 3S4 conforming to IEC 60721-3-3, Salt resistant level 2 conforming to IEC 68252, Mold growth resistant class 3B2 conforming to IEC 60721-3-3, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3, Hazardous location class I division 2
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	-25…70 °C
Relative humidity	5…95 % at 55 °C without condensation
Protective treatment	Conformal coating
Operating altitude	0...2000 m, 2000...5000 m with derating factor

Packaging

Package 1	1 PCE, 16.000 cm × 15.500 cm × 13.000 cm (L × W × H), 540.000 g
Package 2	12 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 7.575 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet BMXCPS3500HPDF
