Schneider Electric BMXCPS3020

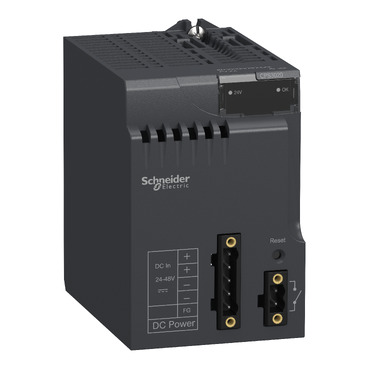

Power supply module, Modicon X80, 24 to 48V DC, 31.2W

MPN: BMXCPS3020
EAN: 3595863908985
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXCPS3020?

This power supply is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This module provides the power supply for each Modicon X80 I/O rack and the modules installed. It is supplied with 24V to 48V DC isolated. It has a case which provides IP 20 protection of the electronics.

Specifications

Range of product	Modicon X80
Product or component type	Power supply module
backplane compatibility	Not compatible with BMEXBP..02
Primary voltage	24...48 V isolated
Supply circuit type	DC
Secondary power	15 W 3.3 V DC I/O module logic power supply, 31.2 W 24 V DC I/O module power supply and processor
Primary voltage limit	18...62.4 V
Input current	0.83 A 48 V, 1.65 A 24 V
Inrush current	30 A 24 V, 60 A 48 V
I²t on activation	1 A².s 24 V, 3 A².s 48 V
It on activation	0.2 A.s 24 V, 0.3 A.s 48 V
MTBF reliability	4600000 H
Protection type	Internal fuse not accessible for primary circuit, Overload protection for secondary circuit, 24 V sensor power supply, Overvoltage protection for secondary circuit, 24 V sensor power supply, Short-circuit protection for secondary circuit, 24 V sensor power supply
Current at secondary voltage	1.3 A 24 V DC I/O module power supply and processor, 4.5 A 3.3 V DC I/O module logic power supply
Maximum power dissipation in W	8.5 W
Status LED	1 LED (green) rack voltage OK
Control type	RESET push-button cold restart
Electrical connection	1 connector 2 pin(s)alarm relay, 1 connector 5 pin(s)line supply, protective earth
Maximum cable distance between devices	10 m power supply cable copper 1.5 mm², 15 m power supply cable copper 2.5 mm²
Insulation resistance	>= 10 MOhm primary/ground, >= 10 MOhm primary/secondary
Net weight	0.34 kg
Immunity to microbreaks	1 ms
Dielectric strength	1500 V primary/ground, 1500 V primary/secondary
Vibration resistance	3 gn
Shock resistance	30 gn
IP degree of protection	IP20
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	0…60 °C
Relative humidity	5…95 % at 55 °C without condensation
Protective treatment	TC
Operating altitude	0...2000 m, 2000...5000 m with derating factor

Packaging

Package 1	1 PCE, 15.500 cm × 15.500 cm × 13.200 cm (L × W × H), 519.000 g
Package 2	12 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 7.378 kg
Package 3	48 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 38.000 kg
