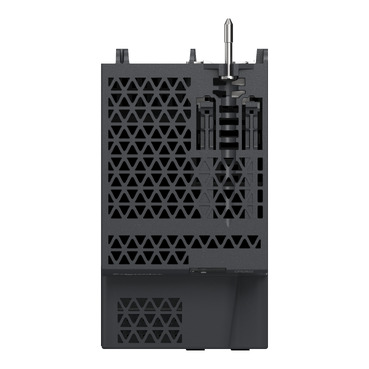

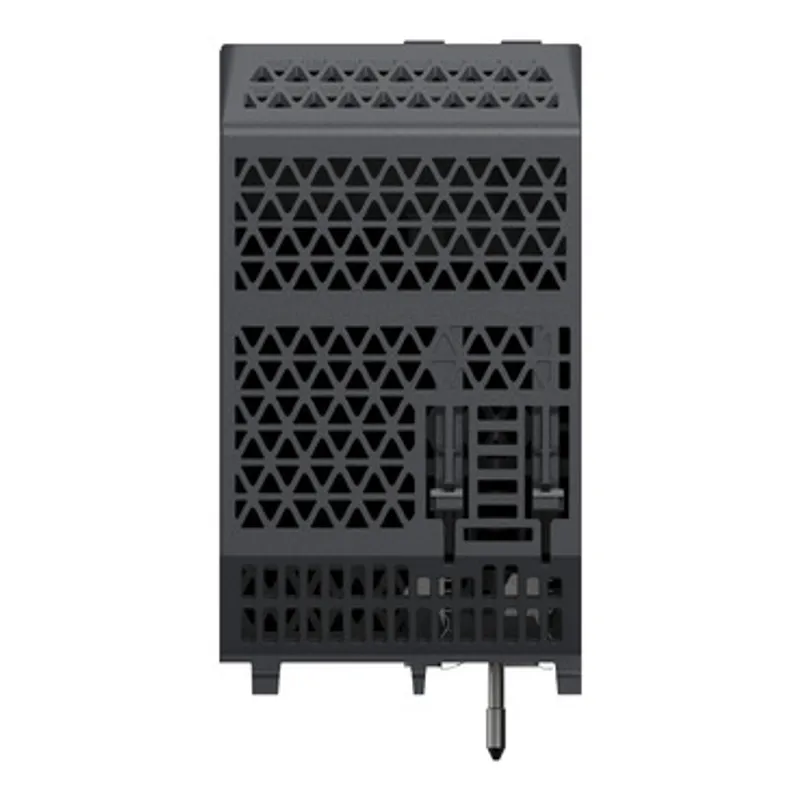

Schneider Electric BMXCPS3522H

Redundant power supply module X80 - 125 V DC - for severe environments

MPN: BMXCPS3522H
EAN: 3606481179104
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXCPS3522H?

"This power supply for severe environments is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580." "This power module provide the power supply for Modicon X80 rack and the modules installed on it." "This power supply has a power consumption of 40W." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection." "It is an IP20 rated product." "The power supply has a weigh of 0.610kg." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product is certified by CE, UL, CSA, RCM, EAC, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards." "This power supply is compatible with Modicon M340 range." "Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC)." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs."

Specifications

Range of product	Modicon X80
Product or component type	Power supply module
backplane compatibility	All backplane
Product specific application	For severe environments
advanced diagnostics available via network	Temperature sensing, Redundancy information, Redundancy test, Uptime duration, Remaining lifetime
Primary voltage	125 V
Supply circuit type	DC
Secondary power	18 W 3.3 V DC at -25…70 °C I/O module logic power supply, 40 W 24 V DC at -25…70 °C I/O module power supply and processor if 3.3 V not loaded
Primary voltage limit	100...150 V
Input current	600 mA 125 V
Inrush current	60 A 125 V
I²t on activation	2.5 A².s 125 V
It on activation	0.09 A.s 125 V
MTBF reliability	830000 H
Protection type	Internal fuse not accessible for primary circuit, Overload protection for secondary circuit, Overvoltage protection for secondary circuit, Short-circuit protection for secondary circuit
Current at secondary voltage	1.67 A 24 V DC I/O module power supply and processor, 5 A 3.3 V DC I/O module logic power supply
Maximum power dissipation in W	8.5 W
Status LED	1 LED (green) presence of voltages (OK), 1 LED (green) redundancy OK, 1 LED (green) power supply status
Control type	RESET push-button cold restart
Electrical connection	1 connector 2 pin(s)alarm relay, 1 connector 5 pin(s)line supply, protective earth
Insulation resistance	>= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
Net weight	0.61 kg
Immunity to microbreaks	1 ms
Dielectric strength	1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor, 2300 V primary/secondary sensor power supply, 1500 V primary/ground
IP degree of protection	IP20
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product certifications	CE, UL, CSA, RCM, EAC, Merchant Navy
Standards	IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G
Environmental characteristic	Gas resistant class Gx conforming to ISA S71.04, Gas resistant class 3C4 conforming to IEC 60721-3-3, Dust resistant class 3S4 conforming to IEC 60721-3-3, Sand resistant class 3S4 conforming to IEC 60721-3-3, Salt resistant level 2 conforming to IEC 68252, Mold growth resistant class 3B2 conforming to IEC 60721-3-3, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3, Hazardous location class I division 2
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	-25…70 °C
Relative humidity	10…95 % without condensation
Protective treatment	Conformal coating

Packaging

Package 1	1 PCE, 25.000 cm × 18.000 cm × 9.000 cm (L × W × H), 621.000 g
Package 2	6 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.509 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet BMXCPS3522HPDF

BMXCPS3522H: frequently asked questions
