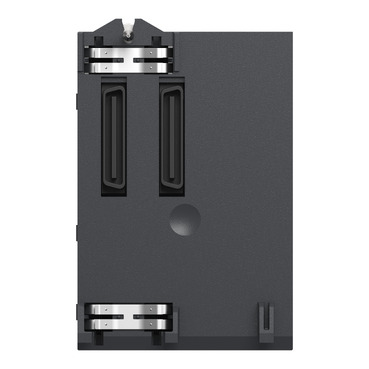

power supply module, Modicon X80, 24V DC, 16.8W
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon X80 modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.29 kg |
Shipping & availability
When can BMXCPS2010 be shipped?
BMXCPS2010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXCPS2010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXCPS2010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXCPS2010, subject to availability and destination.
This power supply is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This power supply module has an isolated voltage of 24V DC. It is a power supply module with a secondary power of 16.8W at 24V DC, a current at secondary voltage of 2.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.29kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. The product must be installed on the rack and fixed with 2 screws. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 |
| Primary voltage | 24 V isolated |
| Supply circuit type | DC |
| Secondary power | 16.8 W 24 V DC I/O module power supply and processor, 8.3 W 3.3 V DC I/O module logic power supply |
| Primary voltage limit | 18...31.2 V |
| Input current | 1 A 24 V |
| Inrush current | 30 A 24 V |
| I²t on activation | 0.6 A².s 24 V |
| It on activation | 0.15 A.s 24 V |
| MTBF reliability | 4886000 H |
| Protection type | Internal fuse not accessible for primary circuit, Overload protection for secondary circuit, 24 V sensor power supply, Overvoltage protection for secondary circuit, 24 V sensor power supply, Short-circuit protection for secondary circuit, 24 V sensor power supply |
| Current at secondary voltage | 0.7 A 24 V DC I/O module power supply and processor, 2.5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) rack voltage OK |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay, 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor |
| Maximum cable distance between devices | 20 m power supply cable copper 1.5 mm², 30 m power supply cable copper 2.5 mm² |
| Insulation resistance | >= 10 MOhm primary/ground, >= 10 MOhm primary/secondary |
| Net weight | 0.29 kg |
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/ground, 1500 V primary/secondary |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | TC |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.300 cm |
| Package 1 Width | 13.000 cm |
| Package 1 Length | 15.500 cm |
| Package 1 Weight | 466.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 6.288 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 35.160 kg |
| Warranty (in months) | 18 |
