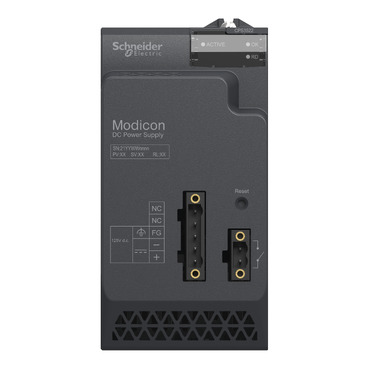

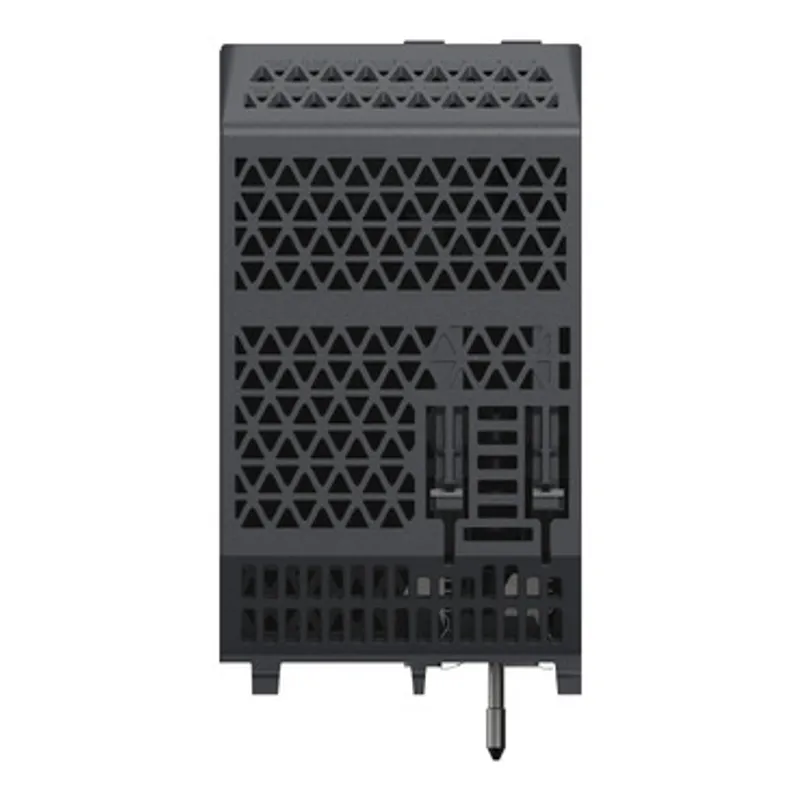

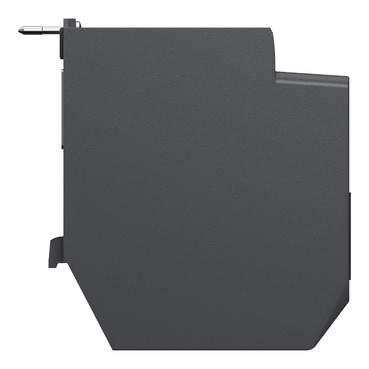

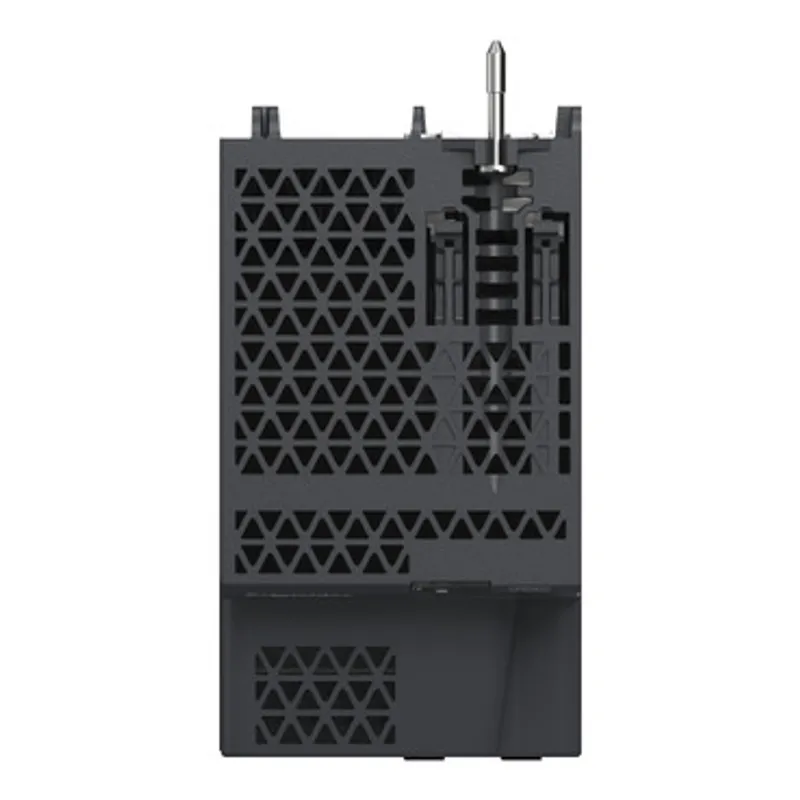

Redundant power supply module, Modicon X80, 125V DC

MPN: BMXCPS3522
EAN: 3606481179098
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXCPS3522?

"This power supply is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580." "This power module provide the power supply for Modicon X80 rack and the modules installed on it." "This power supply has a power consumption of 40W." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection." "It is an IP20 rated product." "The power supply has a weigh of 0.610kg." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product is certified by CE, UL, CSA, RCM, EAC, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards." "This power supply is compatible with Modicon M340 range." "Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC)." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs."

Specifications

Range of product	Modicon X80
Product or component type	Power supply module
backplane compatibility	All backplane
advanced diagnostics available via network	Uptime duration, Temperature sensing, Remaining lifetime, Redundancy information, Redundancy test
Primary voltage	125 V
Supply circuit type	DC
Secondary power	18 W 3.3 V DC at 0…60 °C I/O module logic power supply, 40 W 24 V DC at 0…60 °C I/O module power supply and processor if 3.3 V not loaded
Primary voltage limit	100...150 V
Input current	600 mA 125 V
Inrush current	60 A 125 V
I²t on activation	2.5 A².s 125 V
It on activation	0.09 A.s 125 V
MTBF reliability	830000 H
Protection type	Internal fuse not accessible for primary circuit, Overload protection for secondary circuit, Overvoltage protection for secondary circuit, Short-circuit protection for secondary circuit
Current at secondary voltage	1.67 A 24 V DC I/O module power supply and processor, 5 A 3.3 V DC I/O module logic power supply
Maximum power dissipation in W	8.5 W
Status LED	1 LED (green) presence of voltages (OK), 1 LED (green) redundancy OK, 1 LED (green) power supply status
Control type	RESET push-button cold restart
Electrical connection	1 connector 2 pin(s)alarm relay, 1 connector 5 pin(s)line supply, protective earth
Insulation resistance	>= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
Net weight	0.61 kg
Immunity to microbreaks	1 ms
Dielectric strength	1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor, 2300 V primary/secondary sensor power supply, 1500 V primary/ground
IP degree of protection	IP20
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Environmental characteristic	3C3 conforming to IEC 60721-3-3, 3C4 conforming to IEC 60721-3-3
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	0…60 °C
Relative humidity	10…95 % without condensation

Packaging

Package 1	1 PCE, 25.5 cm × 18 cm × 9 cm (L × W × H), 620 g
Package 2	6 S03, 40 cm × 30 cm × 30 cm (L × W × H), 4.22 kg
Package 3	48 P06, 80 cm × 60 cm × 70 cm (L × W × H), 43.2 kg
