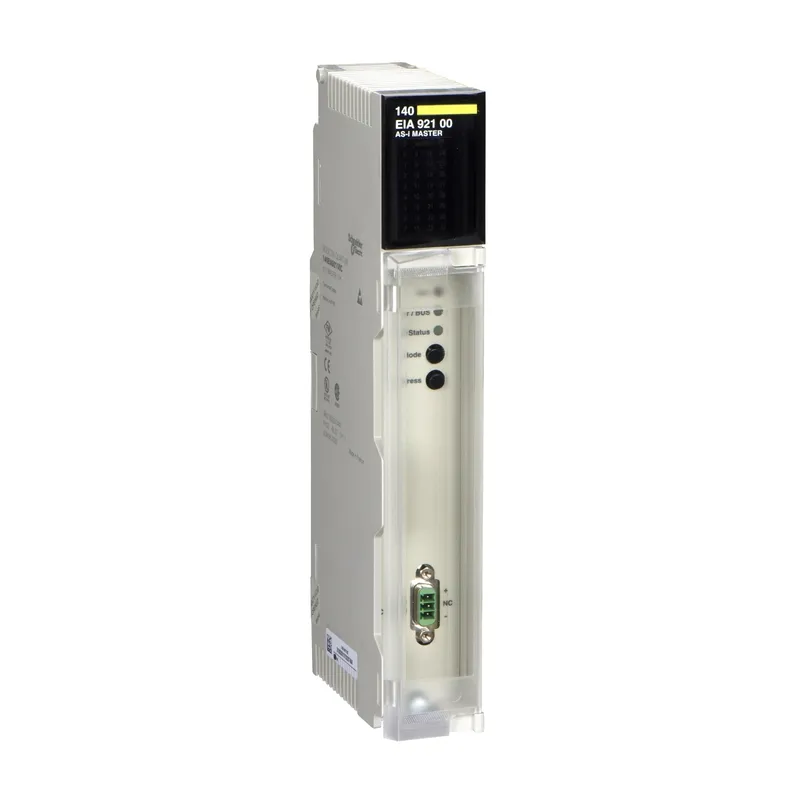

Schneider Electric 140EIA92100 – AS-Interface master module Modicon Quantum - 30 V DC

MPN: 140EIA92100 · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original 140EIA92100 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Quantum
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	FR
UPC / EAN	3595860031389
Recommended replacement	BMXEIA0100
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the 140EIA92100 now that it is discontinued?

Yes. Schneider Electric has discontinued the 140EIA92100, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXEIA0100 as its successor — we can quote both.

When can 140EIA92100 be shipped?

140EIA92100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 140EIA92100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 140EIA92100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 140EIA92100, subject to availability and destination.

Schneider Electric 140EIA92100 — AS-Interface master module Modicon Quantum - 30 V DC. Discontinued by Schneider Electric; the manufacturer's successor is BMXEIA0100. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Quantum automation platform
Product or component type	AS-Interface master module

Complementary

Range compatibility	AS-Interface cabling system
AS-i version	V1
Actuator sensor interface profile [AS-i]	M2
Addressing	Standard
Maximum cycle time	5 ms
Bus length	0…100 m without repeater
Discrete input number	124
Discrete output number	124
Number of server device(s)	31
Number of module per PLC	2 per Quantum PLC distributed drop; 4 per Quantum PLC local drop; 4 per Quantum PLC remote drop
Supply	Via AS-Interface line
[Us] rated supply voltage	30 V DC
AS-i cabling system cycle time	156 x (n + 1) µs with 31 slave(s); 156 x (n + 2) µs
Transmission rate	167 kbit/s
Reverse polarity protection	Internal
Local signalling	32 LEDs for slave addresses and state of slave I/O bits
Electrical connection	1 male connector SUB-D 3 pins for AS-Interface link
Current consumption	<= 100 mA
Typical current consumption	60 mA 30 V DC
Marking	CE
Net weight	0.45 kg
