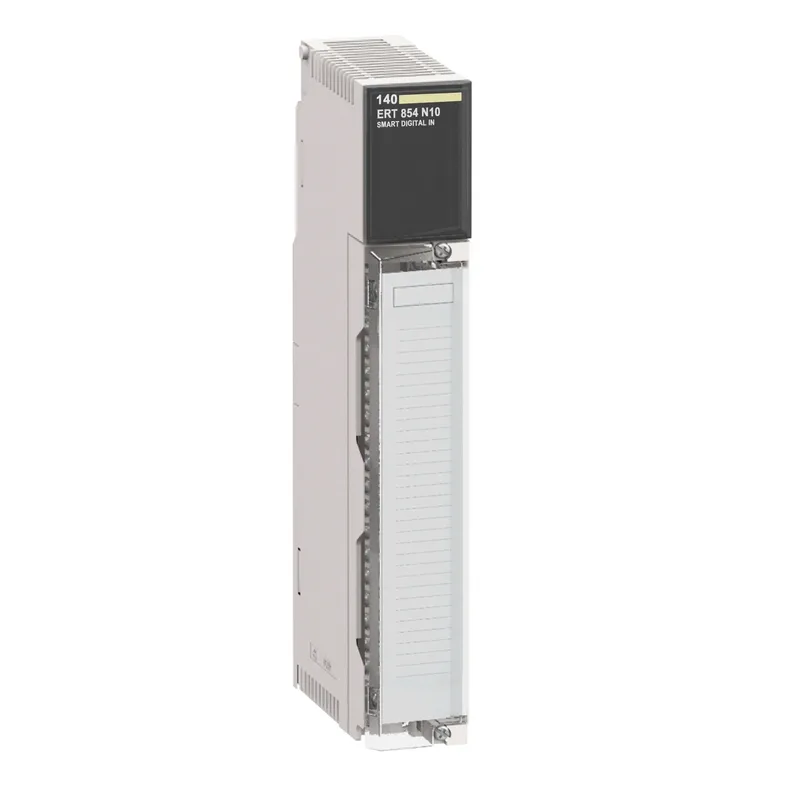

Schneider Electric 140ERT85410C – multifunction input module - Modicon Quantum - 32 I - DCF77

MPN: 140ERT85410C · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original 140ERT85410C (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Quantum
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3595863927375
Recommended replacement	BMXERT1604T
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the 140ERT85410C now that it is discontinued?

Yes. Schneider Electric has discontinued the 140ERT85410C, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXERT1604T as its successor — we can quote both.

When can 140ERT85410C be shipped?

140ERT85410C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 140ERT85410C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 140ERT85410C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 140ERT85410C, subject to availability and destination.

Schneider Electric 140ERT85410C — multifunction input module - Modicon Quantum - 32 I - DCF77. Discontinued by Schneider Electric; the manufacturer's successor is BMXERT1604T. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Quantum automation platform
Product or component type	Multifunction input module
Number of terminals	40

Complementary

Function of module	Status logging counting 500 Hz; Time and date stamped event logging; Status monitoring on discrete inputs
Time synchronisation protocol	DCF77
Product compatibility	Concept; Unity Pro
Group of channels	2 groups of 16 inputs for process input
Discrete input number	1 discrete input(s) at 24 V for clock signal input; 32 discrete input(s) at 24...125 V for process input
Switching voltage	125 V at 1 mA for process input; 24 V at 6 mA for process input; 48 V at 2.5 mA for process input; 60 V at 2.5 mA for process input
Maximum power consumption in W	7.5 W for process input
Insulation	By optocoupler for clock signal input
Insulation between group of channels	By optocoupler
Anti bounce filtering	Configurable from 0 to 255 ms
Input state	Inversion configurable
Acquisition time	1 ms for clock signal input
Input current	5 mA for clock signal input
Electrical connection	Cable - shielded cable <600 m for process input; Cable - unshielded cable <400 m for process input
Connections - terminals	Screw terminal block
Local signalling	1 LED (green) for communication on the bus (Active); 1 LED (green) for self test OK, module ready (R); 1 LED (red) for fault (F); 32 LEDs for status of inputs (1 to 32)
Current consumption	0.07 mA at 24 V DC 140XCP90000 module; 3 mA at 24...125 V DC external power supply per group of channel; 300 mA at 5 V DC bus
Module format	Standard
Net weight	0.45 kg

Environment

Resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2; 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields	10 V/m 80...2000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	95 % without condensation
Operating altitude	<= 5000 m
Protective treatment	Conformal coating Humiseal 1A33; TC
Standards	HazLoc; UL 508
Product certifications	C-Tick; Merchant Navy; LR; UL; CSA Class 1 Division 2; GOST
