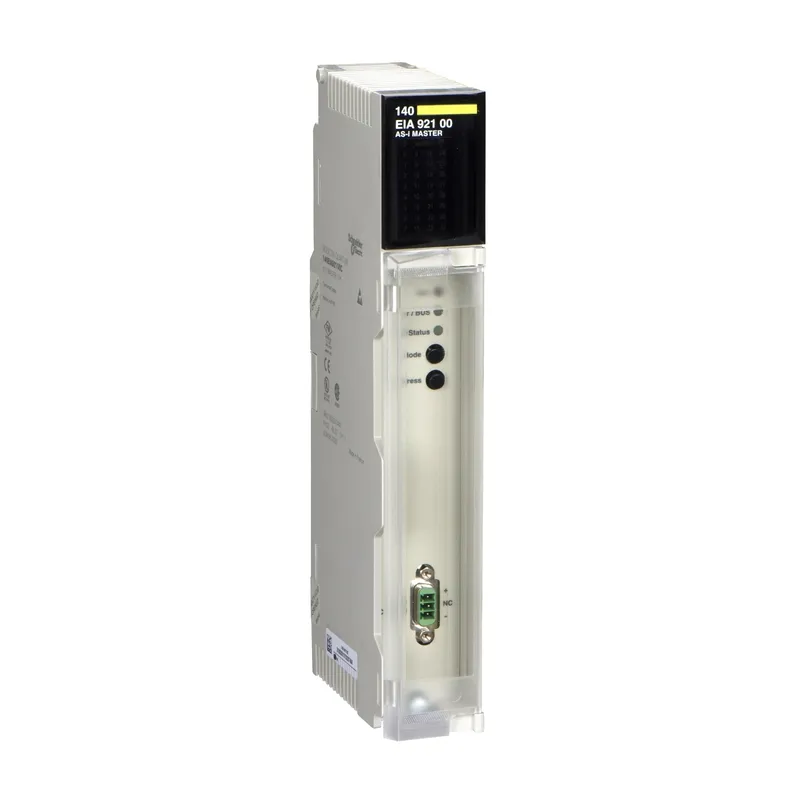

Schneider Electric 140EIA92100C

AS-Interface master module Modicon Quantum - 30 V DC

MPN
140EIA92100C
EAN
3595862033411
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original 140EIA92100C (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 140EIA92100C?

Schneider Electric 140EIA92100C — AS-Interface master module Modicon Quantum - 30 V DC. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productModicon Quantum automation platform
Product or component typeAS-Interface master module

Complementary

Range compatibilityAS-Interface cabling system
AS-i versionV1
Actuator sensor interface profile [AS-i]M2
AddressingStandard
Maximum cycle time5 ms
Bus length0…100 m without repeater
Discrete input number124
Discrete output number124
Number of server device(s)31
Number of module per PLC2 per Quantum PLC distributed drop; 4 per Quantum PLC local drop; 4 per Quantum PLC remote drop
SupplyVia AS-Interface line
[Us] rated supply voltage30 V DC
AS-i cabling system cycle time156 x (n + 1) µs with 31 slave(s); 156 x (n + 2) µs
Transmission rate167 kbit/s
Reverse polarity protectionInternal
Local signalling32 LEDs for slave addresses and state of slave I/O bits
Electrical connection1 male connector SUB-D 3 pins for AS-Interface link
Current consumption<= 100 mA
Typical current consumption60 mA 30 V DC
MarkingCE
Net weight0.45 kg

Environment

IP degree of protectionIP20
Ambient air temperature for operation0…60 °C
Product certificationsUL; FM; C-Tick; CSA; GOST

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

140EIA92100C: frequently asked questions

Can I still buy the 140EIA92100C now that it is discontinued?

Yes. Schneider Electric has discontinued the 140EIA92100C, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 140EIA92100C be shipped?

140EIA92100C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 140EIA92100C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 140EIA92100C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 140EIA92100C, subject to availability and destination.
