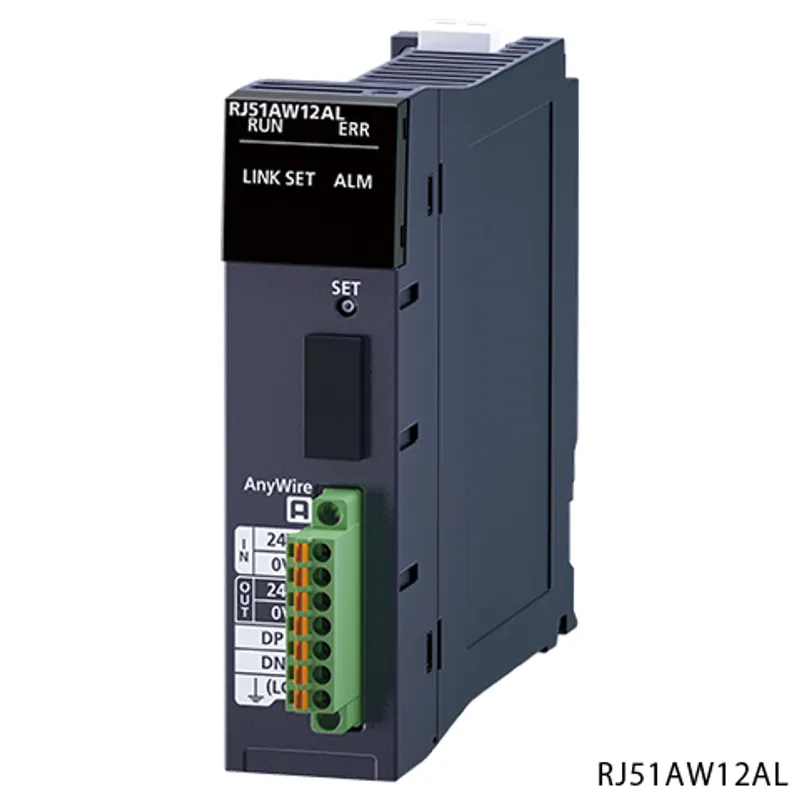

RJ51AW12AL Mitsubishi MELSEC iQ-R Series AnyWireASLINK

MPN: RJ51AW12AL · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – Information/network
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can RJ51AW12AL be shipped?

RJ51AW12AL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RJ51AW12AL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RJ51AW12AL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RJ51AW12AL, subject to availability and destination.

The Mitsubishi Electric RJ51AW12AL is a anyWireASLINK in the MELSEC iQ-R Series. Master station, AnyWireASLINK system compatible, powered by Anywire. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	AnyWireASLINK
Outline	Master station, AnyWireASLINK system compatible, powered by Anywire

Specifications

Transmission clock	27.0 kHz
Maximum transmission distance (total length)	200 m
Transmission system	DC power supply transmission total frame cyclic system
Connection type	Bus topology (multidrop system, T-branch system, tree branch system, star topology)
Transmission protocol	Dedicated protocol (AnyWireASLINK)
Error control	Checksum, double-check system
Number of bit data points/number of word data points	• Number of bit data points: 512 bits maximum (input: 256 bits/output: 256 bits) • Number of word data points: 1024 words maximum (input: 512 words/output: 512 words)
Number of connected remote modules	128 maximum (varies depending on the current consumption of each remote module)
Transmission cable (DP, DN)	• UL-listed general-purpose 2-wire cable (VCTF, VCT 1.25 mm 2 , 0.75 mm 2 , rated temperature 70 ˚C or higher) • UL-listed general-purpose wire (1.25 mm 2 , 0.75 mm 2 , rated temperature 70 ˚C or higher) • Dedicated flat cable (1.25 mm 2 , 0.75 mm 2 , rated temperature 90 ˚C)
Power cable (24V, 0V)	• UL-listed general-purpose 2-wire cable (VCTF, VCT 0.75...2.0 mm 2 , rated temperature 70 ˚C or higher) • UL-listed general-purpose wire (0.75...2.0 mm 2 , rated temperature 70 ˚C or higher) • Dedicated flat cable (1.25 mm 2 , 0.75 mm 2 , rated temperature 90 ˚C)
Applicable bar solderless terminal	• Processing of a 1.25 mm 2 wire: AI 1,5-10 • Processing of a 0.75 mm 2 wire: AI 0,75-10 GY
Transmission cable supply current	• When using 1.25 mm 2 cable: Up to 2A • When using 0.75 mm 2 cable: Up to 1.2A
Maximum number of writes to EEPROM	100000 times maximum
Internal current consumption (5 V DC)	0.2 A
External power supply: Voltage	21.6...27.6 V DC (24 V DC, -10...+15 %), ripple voltage 0.5 Vp-p or lower Recommended voltage: 26.4 V (24 V DC, +10 %)
External interface	Push-in type 7-piece spring clamp terminal block
Number of occupied I/O points	When using 1.25 mm 2 cable: Up to 2A When using 0.75 mm 2 cable: Up to 1.2A
External dimensions: Height	32 points (I/O assignment: Intelligent 32 points)
External dimensions: Width	106 mm (base unit mounting side: 98 mm)
External dimensions: Depth	27.8 mm
Weight	124 mm

Specifications

General specifications

Refer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R AnyWireASLINK Master Module User's Manual (Startup) (SH-081584ENG-I)	PDF · 1.81MB
MELSEC iQ-R AnyWireASLINK Master Module User's Manual (Application) (SH-081585ENG-G)	PDF · 3.28MB
MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)	PDF · 44.18MB
Before Using the Product (BCN-P5999-0625E-F)	PDF · 0.19MB
Safety Guidelines (IB-0800525E-AC)	PDF · 11.79MB
