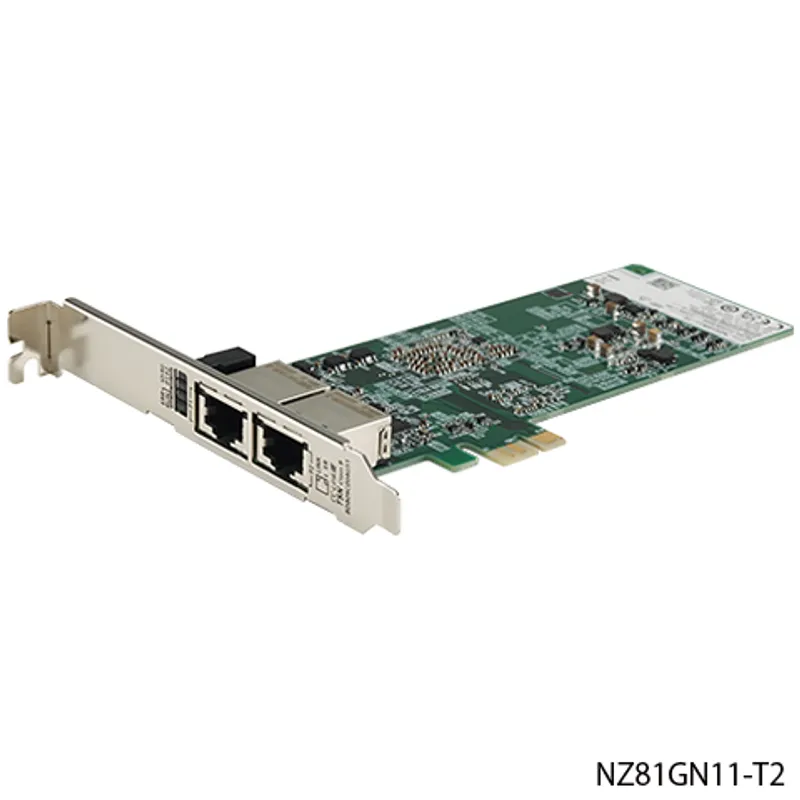

What is the Mitsubishi Electric NZ81GN11-T2?

The Mitsubishi Electric NZ81GN11-T2 is a network interface boards in the MELSEC network modules. CC-Link IE TSN Interface Board manager/local station, Ethernet cable-compatible. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryNetwork interface boards
TypeManager/local station
OutlineCC-Link IE TSN Interface Board manager/local station, Ethernet cable-compatible

CC-Link IE TSN specifications

Maximum number of link points per network: RX16K points (16384 points, 2K bytes)
Maximum number of link points per network: RY16K points (16384 points, 2K bytes)
Maximum number of link points per network: RWr8K points (8192 points, 16K bytes)
Maximum number of link points per network: RWw8K points (8192 points, 16K bytes)
Maximum number of link points per network: LB32K points (32768 points, 4K bytes)
Maximum number of link points per network: LW16K points (16384 points, 32K bytes)
Maximum number of link points per station: RX16K points (16384 points, 2K bytes)
Maximum number of link points per station: RY16K points (16384 points, 2K bytes)
Maximum number of link points per station: RWr8K points (8192 points, 16K bytes)
Maximum number of link points per station: RWw8K points (8192 points, 16K bytes)
Maximum number of link points per station: LB32K points (32768 points, 4K bytes)
Maximum number of link points per station: LW16K points (16384 points, 32K bytes)
Transient transmissionCommunication with MD functions
Transient transmission capacityMaximum 1920 bytes
Transient reception capacityReceive buffer (internal memory) 2K bytes × 128 (total: 256K bytes)
Communication speed1 Gbps/100 Mbps
Minimum synchronization cycle125.00 µs
CC-Link IE TSN ClassCC-Link IE TSN Class B
CC-Link IE TSN protocol versionProtocol version 2.0/1.0
Network topologyLine topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Communication cableEthernet cable which satisfies 1000BASE-T standard: Category 5e or higher, straight cable (double shielded, STP)
Maximum station-to-station distance100 m
Overall cable distanceLine topology:12000 m (when 121 stations are connected) Ring topology:12100 m (when 121 stations are connected) Others:Depends on the system configuration.
Maximum number of connectable stations121 stations (manager station: 1, device station: 120)
Number of pieces of connectable CC-Link IE TSN Communication Software2
Block data assurance per station121
Maximum number of networks239
Maximum number of groups32
Communication methodTime sharing method/time-managed polling method
Multicast filterSupported
Encoding method8B10B
Jumbo frameNot supported

Ethernet specifications

Transmission specifications: Data transmission speed1 Gbps/100 Mbps
Transmission specifications: Communication mode1000BASE-T: Full-duplex 100BASE-TX: Full-duplex
Transmission specifications: Maximum frame size1518 bytes
Transmission specifications: Maximum segment length100 m
Transmission specifications: Number of cascaded connectionsConsult the manufacturer of the switching hub used.
Transmission specifications: IP versionIPv4

Hardware specifications

Number of installable boardsMaximum 4 boards
Installation slotPCI Express ® X1, X4, X8, X16 slot (standard/low profile, half size)
Exclusive slots1 slot
Personal computer connection I/FPCI Express
Personal computer transfer speedMaximum 5 Gbps when connected with PCI Express 2.0
Number of personal computer lanesX1
Internal current consumption (3.3 V DC)1.14 A
External dimensions: HeightStandard size: 121 mm Low profile size : 80 mm
External dimensions: Width18.5 mm
External dimensions: Depth181 mm
WeightStandard size: 0.08 kg Low profile size : 0.08 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: Compliant with IEC 61131-2: 2017 and JIS B 3502: 2021Frequency: 5...8.4 Hz, Constant amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 10 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Shock resistance: Compliant with IEC 61131-2: 2017 and JIS B 3502: 2021150 m/s 2 , 3 times each in X, Y, and Z directions
Operating atmosphereNo corrosive gases, flammable gases, less conductive dust
Operating altitude0...2000 m
Installation locationInside a control panel for indoor use
Overvoltage categoryII or less
Pollution degree2 or less
