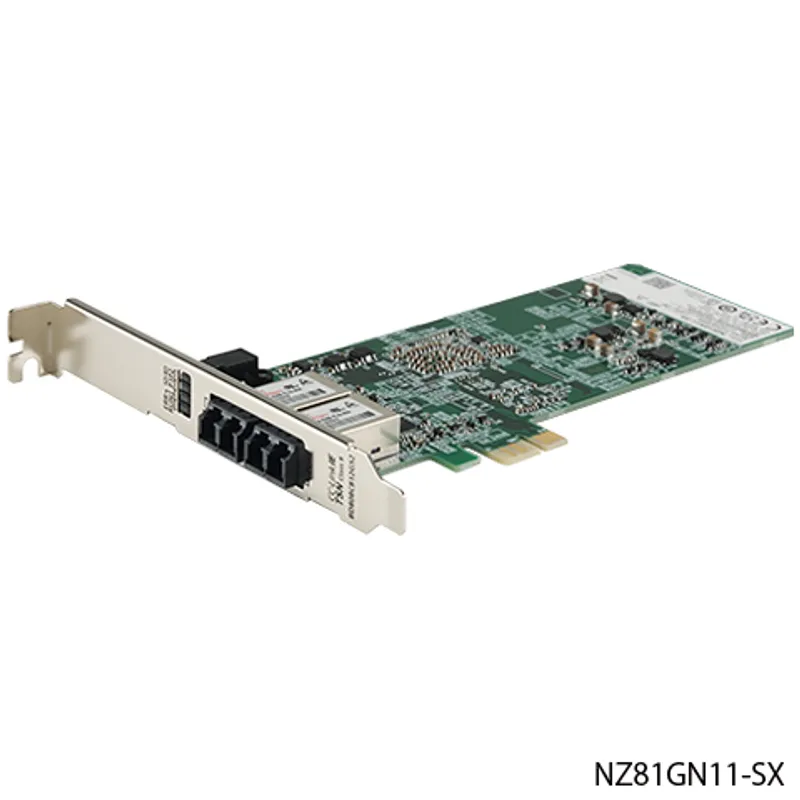

Mitsubishi Electric NZ81GN11-SX

Mitsubishi MELSEC network modules Network interface boards

MPN
NZ81GN11-SX
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric NZ81GN11-SX?

The Mitsubishi Electric NZ81GN11-SX is a network interface boards in the MELSEC network modules. CC-Link IE TSN Interface Board manager/local station, optical fiber cable-compatible. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryNetwork interface boards
TypeManager/local station
OutlineCC-Link IE TSN Interface Board manager/local station, optical fiber cable-compatible

CC-Link IE TSN specifications

Maximum number of link points per network: RX16K points (16384 points, 2K bytes)
Maximum number of link points per network: RY16K points (16384 points, 2K bytes)
Maximum number of link points per network: RWr8K points (8192 points, 16K bytes)
Maximum number of link points per network: RWw8K points (8192 points, 16K bytes)
Maximum number of link points per network: LB32K points (32768 points, 4K bytes) When the number of link points is extended: 128K points (131072 points, 16K bytes)
Maximum number of link points per network: LW16K points (16384 points, 32K bytes) When the number of link points is extended: 512K points (524288 points, 1024K bytes)
Maximum number of link points per station: RX16K points (16384 points, 2K bytes)
Maximum number of link points per station: RY16K points (16384 points, 2K bytes)
Maximum number of link points per station: RWr8K points (8192 points, 16K bytes)
Maximum number of link points per station: RWw8K points (8192 points, 16K bytes)
Maximum number of link points per station: LB32K points (32768 points, 4K bytes) When the number of link points is extended: 128K points (131072 points, 16K bytes)
Maximum number of link points per station: LW16K points (16384 points, 32K bytes) When the number of link points is extended: 512K points (524288 points, 1024K bytes)
Transient transmissionCommunication with MD functions
Transient transmission capacityMaximum 1920 bytes
Transient reception capacityReceive buffer (internal memory) 2K bytes × 128 (total: 256K bytes)
Communication speed1 Gbps
Minimum synchronization cycle125.00 µs
CC-Link IE TSN ClassCC-Link IE TSN Class B
CC-Link IE TSN protocol versionProtocol version 2.0/1.0
Network topologyRing topology
Communication cableOptical fiber cable which satisfies standard: IEEE 802.3z 1000BASE-SX compatible GI type silica glass multimode optical fiber cable IEC 60793-2-10 A1a.1 compliant
Maximum station-to-station distance550 m
Overall cable distanceRing topology:66550 m (when 121 stations are connected)
Maximum number of connectable stations121 stations (manager station: 1, device station: 120)
Block data assurance per station121
Maximum number of networks239
Maximum number of groups32
Communication methodTime sharing method
Multicast filterSupported
Encoding method8B10B
Laser class (IEC 60825-1)Class 1 laser product

Ethernet specifications

Transmission specifications: Data transmission speed1 Gbps
Transmission specifications: Communication mode1000BASE-SX: Full-duplex
Transmission specifications: Maximum frame size1518 bytes
Transmission specifications: Maximum segment length550 m
Transmission specifications: IP versionIPv4

Hardware specifications

Number of installable boardsMaximum 4 boards
Installation slotPCI Express ® X1, X4, X8, X16 slot (standard/low profile, half size)
Exclusive slots1 slot
Personal computer connection I/FPCI Express
Personal computer transfer speedMaximum 5 Gbps when connected with PCI Express 2.0
Number of personal computer lanesX1
Internal current consumption (3.3 V DC)1.08 A
External dimensions: HeightStandard size: 121 mm Low profile size : 80 mm
External dimensions: Width18.5 mm
External dimensions: Depth181 mm
WeightStandard size: 0.09 kg Low profile size : 0.08 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: Compliant with IEC 61131-2: 2017 and JIS B 3502: 2021Frequency: 5...8.4 Hz, Constant amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 10 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Shock resistance: Compliant with IEC 61131-2: 2017 and JIS B 3502: 2021150 m/s 2 , 3 times each in X, Y, and Z directions
Operating atmosphereNo corrosive gases, flammable gases, less conductive dust
Operating altitude0...2000 m
Installation locationInside a control panel for indoor use
Overvoltage categoryII or less
Pollution degree2 or less

NZ81GN11-SX: frequently asked questions

When can NZ81GN11-SX be shipped?

NZ81GN11-SX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ81GN11-SX in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ81GN11-SX and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ81GN11-SX, subject to availability and destination.
