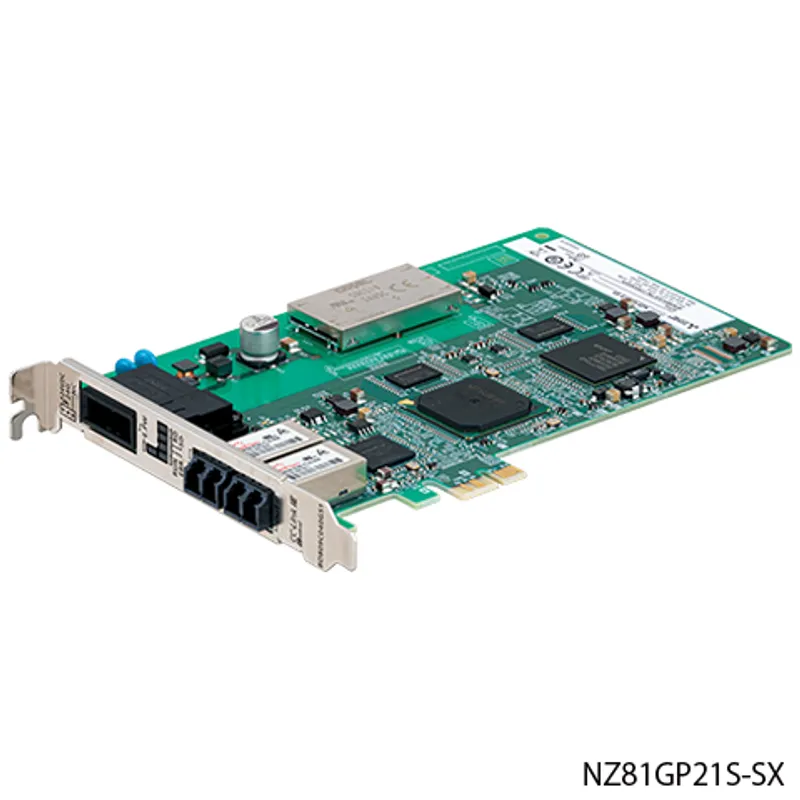

What is the Mitsubishi Electric NZ81GP21S-SX?

The Mitsubishi Electric NZ81GP21S-SX is a network interface boards in the MELSEC network modules. CC-Link IE Controller Network control/normal station (with the External power supply function); Compatible with PCI Express ® bus. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryNetwork interface boards
TypeOptical fiber cable
SubtypeControl/normal station
OutlineCC-Link IE Controller Network control/normal station (with the External power supply function); Compatible with PCI Express ® bus

Specifications

Maximum number of link points per network: LB・32K points (32768 points, 4 KB): When "Link points extend setting" is set to "Not to extend" ・64K points (65536 points, 8 KB): When "Link points extend setting" is set to "Extend"
Maximum number of link points per network: LW・128K points (131072 points, 256 KB): When "Link points extend setting" is set to "Not to extend" ・256K points (262144 points, 512 KB): When "Link points extend setting" is set to "Extend"
Maximum number of link points per network: LX8K points (8192 points, 1 KB)
Maximum number of link points per network: LY8K points (8192 points, 1 KB)
Maximum number of link points per station: LB・16K points (16384 points, 2 KB) ・32K points (32768 points, 4 KB): When the extended mode is set and "Link points extend setting" is set to "Not to extend" ・64K points (65536 points, 8 KB): When the extended mode is set and "Link points extend setting" is set to "Extend"
Maximum number of link points per station: LW・16K points (16384 points, 32 KB) ・128K points (131072 points, 256 KB): When the extended mode is set and "Link points extend setting" is set to "Not to extend" ・256K points (262144 points, 512 KB): When the extended mode is set and "Link points extend setting" is set to "Extend"
Maximum number of link points per station: LX8K points (8192 points, 1 KB)
Maximum number of link points per station: LY8K points (8192 points, 1 KB)
Transient transmission capacityUp to 1920 B
Communication speed1 Gbps
Communication cableOptical fiber cable which satisfies 1000BASE-SX standard: Multimode optical fiber (GI)
Optical fiber specificationsStandard: IEC 60793-2-10 Types A1a.1 Outside diameter of the core/clad: 50 µm/125 µm Transmission loss: 3.5 dB/km or lower [λ = 850 nm] Transmission band: 500 MHz-km or higher [λ = 850 nm]
Connector specificationsDuplex LC connector Standard: IEC 61754-20 Type LC connector Connection loss: 0.3 dB or lower Polished surface: PC (Physical Contact) polishing
Laser class (IEC 60825-1: 2014, JIS C 6802: 2014)Class 1 laser product
Overall cable distance66000 m (when 120 stations are connected)
Maximum station-to-station distance550 m
Maximum number of connectable stations120 stations (Control station: 1, Normal station: 119)
Maximum number of networks239
Maximum number of groups32
Communication methodToken ring
Network topologyDuplex loop
Number of installable boardsUp to 4
Installation slotPCI Express ® slot For a card edge connector supporting x1, x4, x8, x16 lanes (Standard size)
Number of occupied slots1 slot
Personal computer connection I/FPCI Express
Personal computer transfer speed2.5 Gbps (when connected with PCI Express 1.1)
Number of personal computer lanesx1
External power supply: Voltage24 VDC Fluctuation range: 20.4 to 31.2 VDC Ripple ratio: within 5%
External power supply: Rated current0.28 A
External power supply: Power supply connectorConnector set
External power supply: Applicable wire size0.50 to 1.25 ㎟ (20 to 16 AWG)
External power supply: Allowable momentary power failure time1 ms (Level PS1)
External power supply: Noise immunity・Noise voltage: 500 Vp-p ・Noise width: 1 µs By noise simulator of noise frequency at 25 to 60 Hz
Internal current consumption (3.3 V DC)1.82 A
External dimensions: HeightStandard size: 121 mm
External dimensions: Width18.5 mm
External dimensions: Depth181 mm
Weight0.13 kg

Specifications

Operating ambient temperature0 to 55℃
Storage ambient temperature-25 to 75℃
Operating ambient humidity5 to 95% RH, non-condensing
Storage ambient humidity5 to 95% RH, non-condensing
Vibration resistance: IEC 61131-2: 2017 and JIS B 3502: 2021Frequency: 5 to 8.4 Hz, Constant amplitude: 3.5 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 10 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Shock resistance: IEC 61131-2: 2017 and JIS B 3502: 2021150 m/s 2 , 3 shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases, flammable gases, less conductive dust
Operating altitude0 to 2000 m
Installation locationInside a control panel for indoor use
Overvoltage categoryⅡ or less
Pollution degree2 or less
