Mitsubishi Electric NZ2MHG-T8F2

Mitsubishi MELSEC network modules Option

MPN
NZ2MHG-T8F2
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

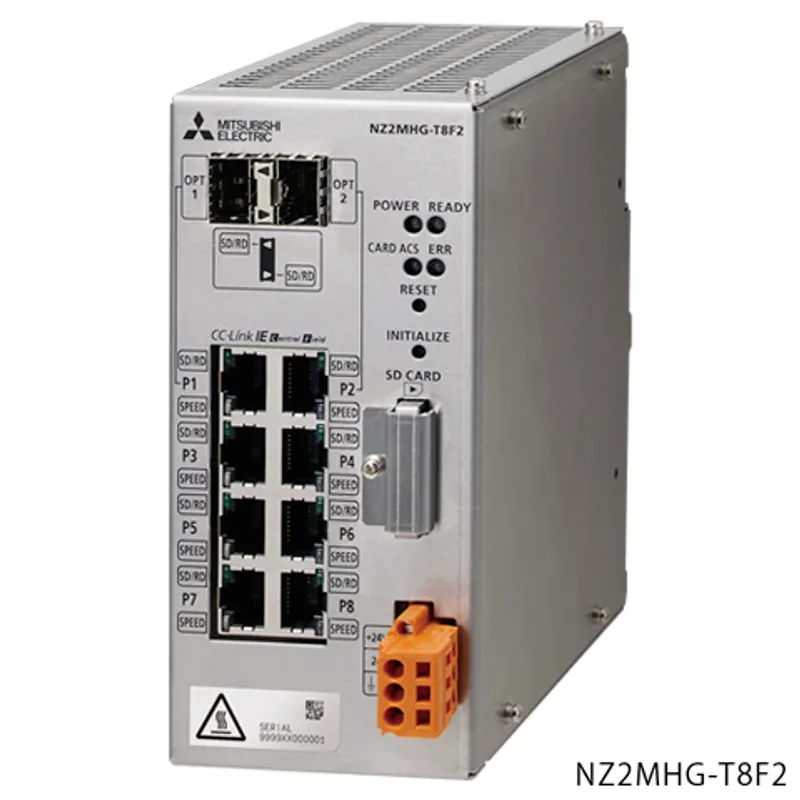

What is the Mitsubishi Electric NZ2MHG-T8F2?

The Mitsubishi Electric NZ2MHG-T8F2 is a option in the MELSEC network modules. 10 Mbps/100 Mbps/1000 Mbps, Ethernet ports: 8 ports, optical fiber port: 2 ports, VLAN function. Mitsubishi Electric has announced its discontinuation (2027/02 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryOption
TypeTwisted-pair cable
SubtypeManaged CC-Link IE switch
Sales status2027/02 To be end of order (Mitsubishi Electric)
Outline10 Mbps/100 Mbps/1000 Mbps, Ethernet ports: 8 ports, optical fiber port: 2 ports, VLAN function

Specifications

Communication speed (Communication method): 1000BASE-LX1 Gbps (Full-duplex)
Communication speed (Communication method): 1000BASE-SX1 Gbps (Full-duplex)
Communication speed (Communication method): 1000BASE-T1 Gbps (Full-duplex)
Communication speed (Communication method): 100BASE-TX100 Mbps (Full-duplex)
Communication speed (Communication method): 10BASE-T10 Mbps (Full-duplex)
Maximum segment length: 1000BASE-LX5 km
Maximum segment length: 1000BASE-SX550 m
Maximum segment length: 1000BASE-T100 m
Maximum segment length: 100BASE-TX100 m
Maximum segment length: 10BASE-T100 m
Communication interface: Ethernet port: RJ45 connector8 ports (Two of them cannot be used with the optical fiber ports at the same time.)
Communication interface: Optical fiber port: SFP connector2 ports
Frame size (Jumbo frame compliant)64...9022 bytes (VLAN setting data included)
Number of MAC addresses to be learned2048 maximum
MAC address aging timer300 s
VLAN function: VLAN ID range0...4095
VLAN function: Number of VLAN IDs to be set for the port VLAN1 per port
VLAN function: Number of VLAN IDs to be set for the tag VLAN4096 maximum per port
High reliability/redundancy function: ERP: Redundancy methodEthernet Ring Protection (ERP)
High reliability/redundancy function: ERP: Number of ports set as ERP2 ports
High reliability/redundancy function: ERP: ERP transmission path switch time10 ms or less after fault occurrence
High reliability/redundancy function: LA: Redundancy methodLink Aggregation (LA)
High reliability/redundancy function: LA: Number of ports set as LA4 pairs (2 ports per pair)
High reliability/redundancy function: LA: LA transmission path switch time1 s or less after fault occurrence
Startup timeApproximately 1 minute
Number of cascade connections (CC-Link IE)20 levels maximum
Number of cascade connections (Ethernet)No limitation
Rated input voltage24 V DC (allowable voltage range: 20.4...28.8 V DC)
Rated input current1.20 A
Maximum inrush current60 A, 1 ms or less
External dimensions: Height147 mm
External dimensions: Width70 mm
External dimensions: Depth122 mm
Weight0.95 kg

Specifications

Operating ambient temperature0...60 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases, flammable gases, less conductive dust
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass I

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

NZ2MHG-T8F2: frequently asked questions

When can NZ2MHG-T8F2 be shipped?

NZ2MHG-T8F2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2MHG-T8F2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2MHG-T8F2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2MHG-T8F2, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

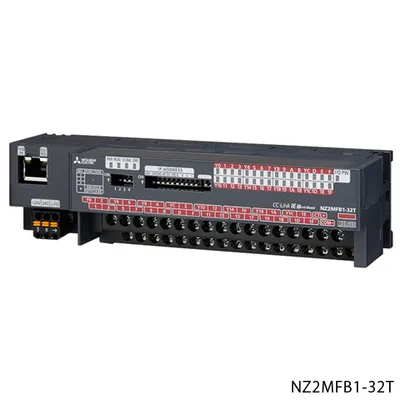

Mitsubishi Electric NZ2MFB1-32T – Mitsubishi MELSEC network modules Remote I/O
Mitsubishi Electric
NZ2MFB1-32T

Mitsubishi MELSEC network modules Remote I/O

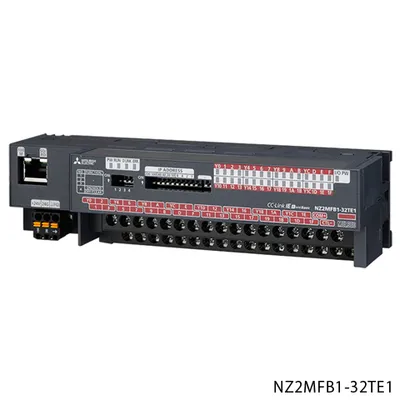

Mitsubishi Electric NZ2MFB1-32TE1 – Mitsubishi MELSEC network modules Remote I/O
