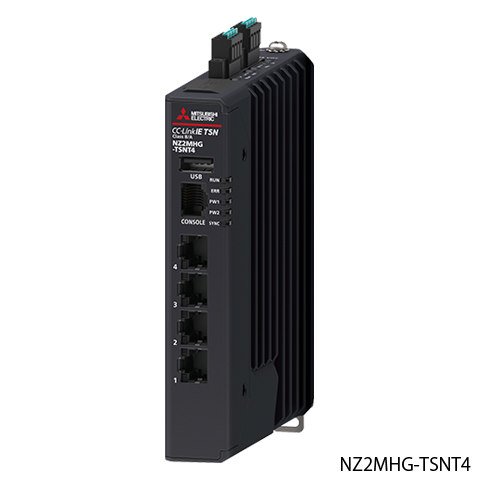

Mitsubishi Electric NZ2MHG-TSNT4

Mitsubishi MELSEC network modules Option

MPN
NZ2MHG-TSNT4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric NZ2MHG-TSNT4?

The Mitsubishi Electric NZ2MHG-TSNT4 is a option in the MELSEC network modules. 10 Mbps/100 Mbps/1 Gbps, Auto MDI/MDI-X, DIN rail, 4 ports Powered by MOXA ®. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryOption
TypeIndustrial switching hub
Outline10 Mbps/100 Mbps/1 Gbps, Auto MDI/MDI-X, DIN rail, 4 ports Powered by MOXA ®

Specifications

Transmission speed: RJ45 port: 10BASE-T10 Mbps (Full-duplex/half-duplex)
Transmission speed: RJ45 port: 100BASE-TX100 Mbps (Full-duplex/half-duplex)
Transmission speed: RJ45 port: 1000BASE-T1 Gbps (Full-duplex)
Maximum segment length: 10BASE-T100 m
Maximum segment length: 100BASE-TX100 m
Maximum segment length: 1000BASE-T100 m
Communication interface: RJ45 port• 4 ports • Auto-negotiation function • Auto MDI/MDI-X function
Number of MAC addresses to be learned9216 maximum
Aging time for the MAC address table10...300 s
VLAN: VLAN ID range1...4094
VLAN: Number of VLANs to be set256 maximum
Packet buffer size2 Mbit
Compatible MIBRFC1213, Ethernet-like MIB, IF MIB, LLDP MIB, Bridge MIB, QBRIDGE MIB, IEEE8021-PAE-MIB, IEEE8021-SPANNING-TREE-MIB, SNMPv2-MIB
Compatible protocol: Management purposeIPv4/IPv6, LLDP, SMTP, SNMP Inform, SNMPv1/v2c/v3, SNMP Trap, DHCP Server/Client, ARP, TFTP, SFTP, HTTP, HTTPS, SSH, Telnet, Private MIB, Syslog
Compatible protocol: RedundancySTP/RSTP
Compatible protocol: SecurityRADIUS, TACACS+
Compatible protocol: Time synchronizationIEEE 1588v2 (PTP), SNTP, NTP Server/Client
TSN compatible standardIEEE 802.1AS (gPTP), IEEE 802.1Qbv
CC-Link IE TSN ClassCC-Link IE TSN Class B CC-Link IE TSN Class A
Serial interface: Console portRJ45 connector
Serial interface: USB portUSB Type-A connector
Relay output: Number of ports1
Relay output: Maximum allowable voltage of contact1 A at 24 V DC
Digital input: Number of ports1
Digital input: Rated input voltage• 13...30 V: H input • -30...3 V: L input
Digital input: Rated input current8 mA
Power supply specifications: Rated voltage12/24/48 V DC
Power supply specifications: Allowable voltage range9.6...60 V DC
Power supply specifications: Protection function• Overcurrent protection function • Reverse connection protection function
Power supply specifications: Internal current consumption (12 V DC)1.25 A
Power supply specifications: Internal current consumption (24 V DC)0.62 A
Power supply specifications: Internal current consumption (48 V DC)0.32 A
Protection degreeIP40
External dimensions: Height135 mm
External dimensions: Width25 mm
External dimensions: Depth115 mm
Weight0.59 kg

Specifications

Operating ambient temperature-10...60 ˚C
Storage ambient temperature-40...85 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistanceIEC 60068-2-6
Shock resistanceIEC 60068-2-27
Operating atmosphereNo corrosive gases, flammable gases, less conductive dust
Operating altitude0...2000 m
Installation locationInside a control panel
Pollution degree2 or less
Equipment classClass III
